Precision Metal Cutting Solution for Industrial Applications
Cutting, Notching & Punching
By: INE
Italy
Express Interest
Product Highlights
INE Plasma Cutting MachineINE SpA manufactures an advanced range of handheld/ automated Plasma Cutting Machineries that can cut through thick and thin metals alike up to a size of 55mm. Plasma cutting is the most cost-effective choice and generally requires lower maintenance. INE machines feature a mechanism that utilizes compressed air to generate plasma. The INE SKYLINE 33-60-90 model of plasma system is characterized by quick cutting of metals, ensuring high-power and performance. ...
INE Plasma Cutting Machine
INE SpA manufactures an advanced range of handheld/ automated Plasma Cutting Machineries that can cut through thick and thin metals alike up to a size of 55mm. Plasma cutting is the most cost-effective choice and generally requires lower maintenance.
INE machines feature a mechanism that utilizes compressed air to generate plasma. The INE SKYLINE 33-60-90 model of plasma system is characterized by quick cutting of metals, ensuring high-power and performance. Other models include SKYLINE 120, SKYLINE 90, SKYLINE 60 and SKYLINE 33.
Plasma Cutting
Plasma cutting is the process of directing a jet of ionized gas or plasma at the workpiece metal which results in fast and accurate cuts. The compressed air discharged by the plasma torch hits the targeted spot and inturn melts and expels the metal piece.
The above process can be done either manually by using a handheld torch or with the CNC machines that can deliver accurate and consistent cuts.
Features of INE Plasma Cutting Machines
-Digital control board
The digitized control board helps to set and monitor the cutting parameters, guaranteeing repeatable results.
-Inverter technology
The inverter circuit controls the flow of power making the machine more light, compact and energy efficient.
-Safety accessories
The safety devices effectively provide protection against overheating and overloading.
-Ease in maneuverability and use
The machines feature trolleys that render smooth movements.
-Pilot arc
Pilot arc is a small pre arc that is initiated with the LIFT start. This generates an accurate arc starting with no electromagnetic interference. Additionally, the automatic restart machine makes sure that the arc cycle is maintained during the cutting of mesh or perforated sheets.
-Warranty: 3 years
-Protection Class: IP 23S
INE Plasma Cutting details

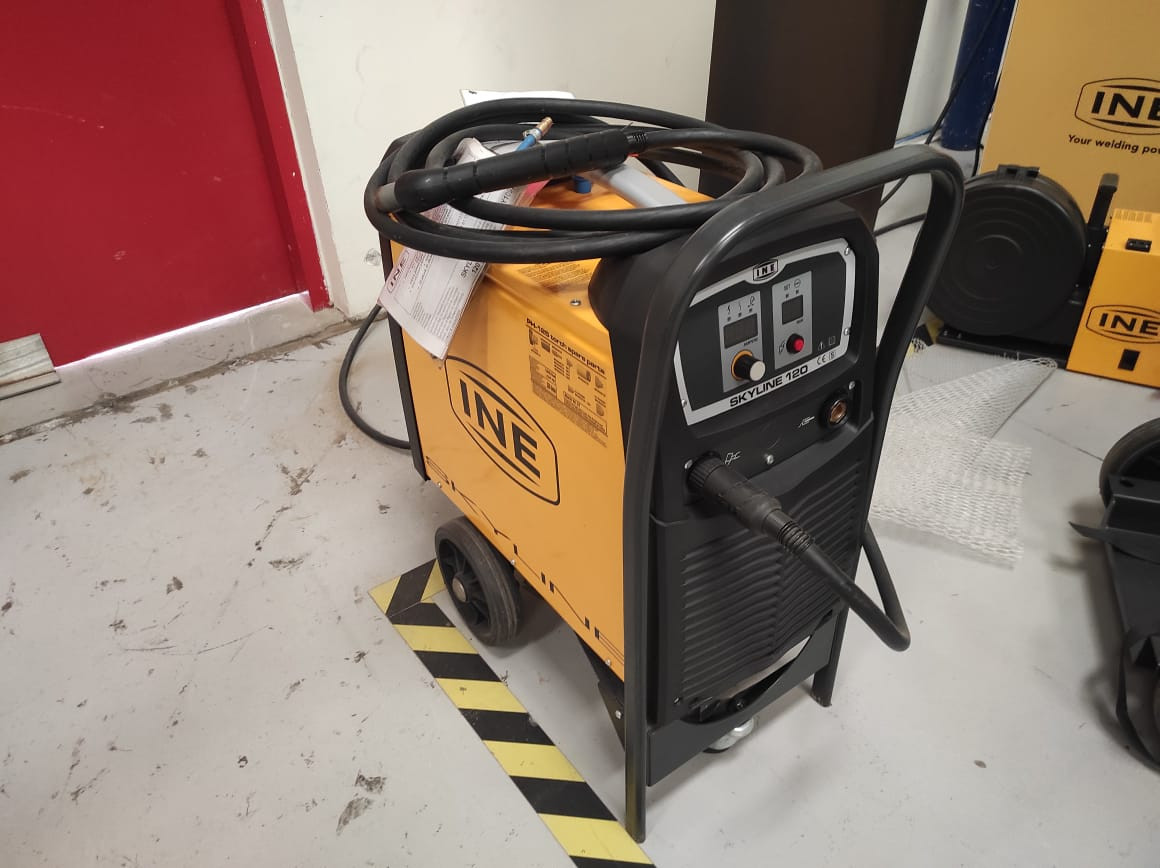

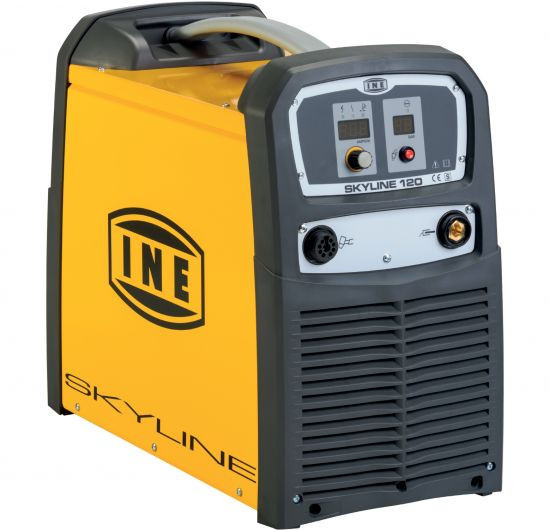

Model: SKYLINE 120
Current Range: 25-120 A
Max Thickness on Mild Steel: 55 mm (Severance) & 40 mm (Clear Cut)
Max Thickness on Stainless Steel/Aluminium: 40 mm (Severance) & 30 mm (Clear Cut)

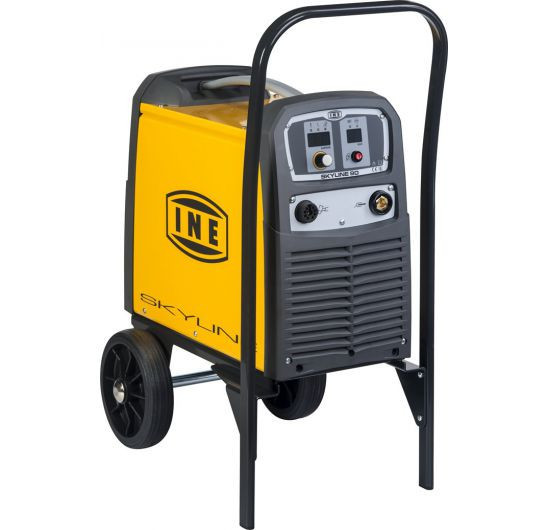

Model: SKYLINE 90
Current Range: 25-90 A
Max Thickness on Mild Steel: 42 mm (Severance) & 30 mm (Clear Cut)
Max Thickness on Stainless Steel/Aluminium: 30 mm (Severance) & 23 mm (Clear Cut)
Model: SKYLINE 60
Current Range: 25-60 A
Max Thickness on Mild Steel: 28 mm (Severance) & 20 mm (Clear Cut)
Max Thickness on Stainless Steel/Aluminium: 20 mm (Severance) & 15 mm (Clear Cut)
Model: SKYLINE 33
Current Range: 10-33 A
Max Thickness on Mild Steel: 15 mm
Max Thickness on Stainless Steel: 10 mm
Applications of INE Plasma Cutting Machine
-Metal fabrication
-Construction
-Oil and gas industry
-Automotive industry
-Aerospace
-Sheet metal works
To summarize, plasma cutting machines are an effective addition for various industries that require the precise and accurate cutting of conductive metals.

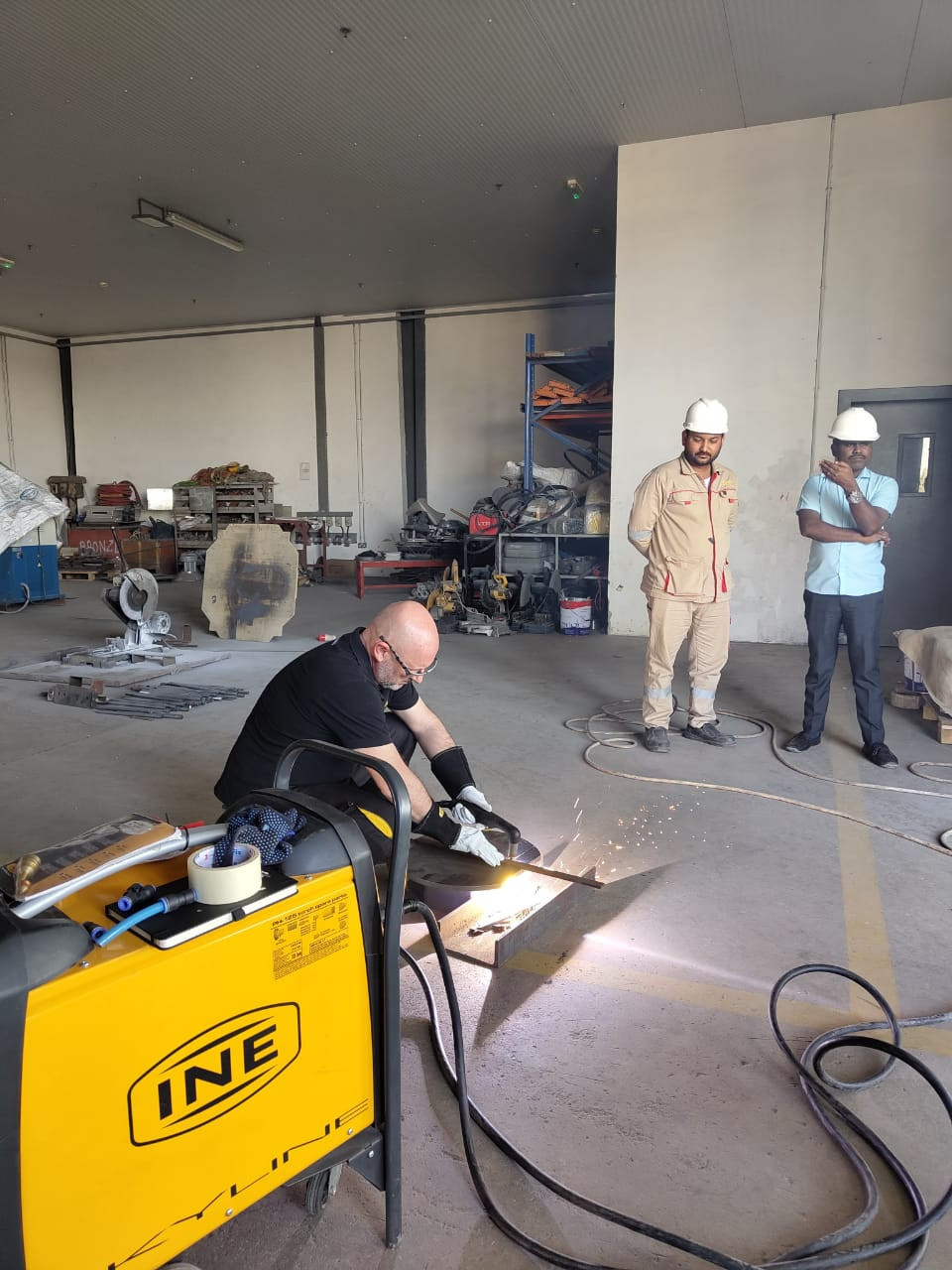

YES Machinery is the leading industrial equipment supplier across the UAE. We supply premium plasma cutting machines manufactured by the renowned INE based in Italy. To get the first hand demo section and know more about the product, please pay a visit to our showroom. For further information, please reach out to us through sales@yesmachinery.ae
