Clinching Machine

Established in 1999, Jurado Sris is a premium manufacturer of Clinching machines that uses a unique patented method called Cold milling/welding. These machines can be applied in numerous materials and fields, such as metal furniture, the automotive industry, industrial furnaces, and household appliances. Thanks to Jurado, joining metals has never been challenging.

Applications:

With its impressive adaptability, these machines enable joining metals and clinching solutions even in cases that would have required complex weldings.

Benefits:

• Boosted profitability since there is nil waste

• Energy efficient

• Low cycle time of 1 second

• Operated automatically and manually

• Easy to operate.

• Union of various materials without damaging their coatings

• Corrosion resistance

• Enhanced life

• Low maintenance

• Adhesive compatibility

• No fumes and spark emission




Based on the plastic deformation of materials, the clinching technique is impressively innovative.

This process involves the interaction between a punch and a die, creating the desired shape without the need for additional material. Accurate punches, with applied force to the preconceived area, allow the punch to penetrate the metal sheets easily, creating a button point at the junction and forming a shape that would depend on toolkit geometry.

Types of Joints:

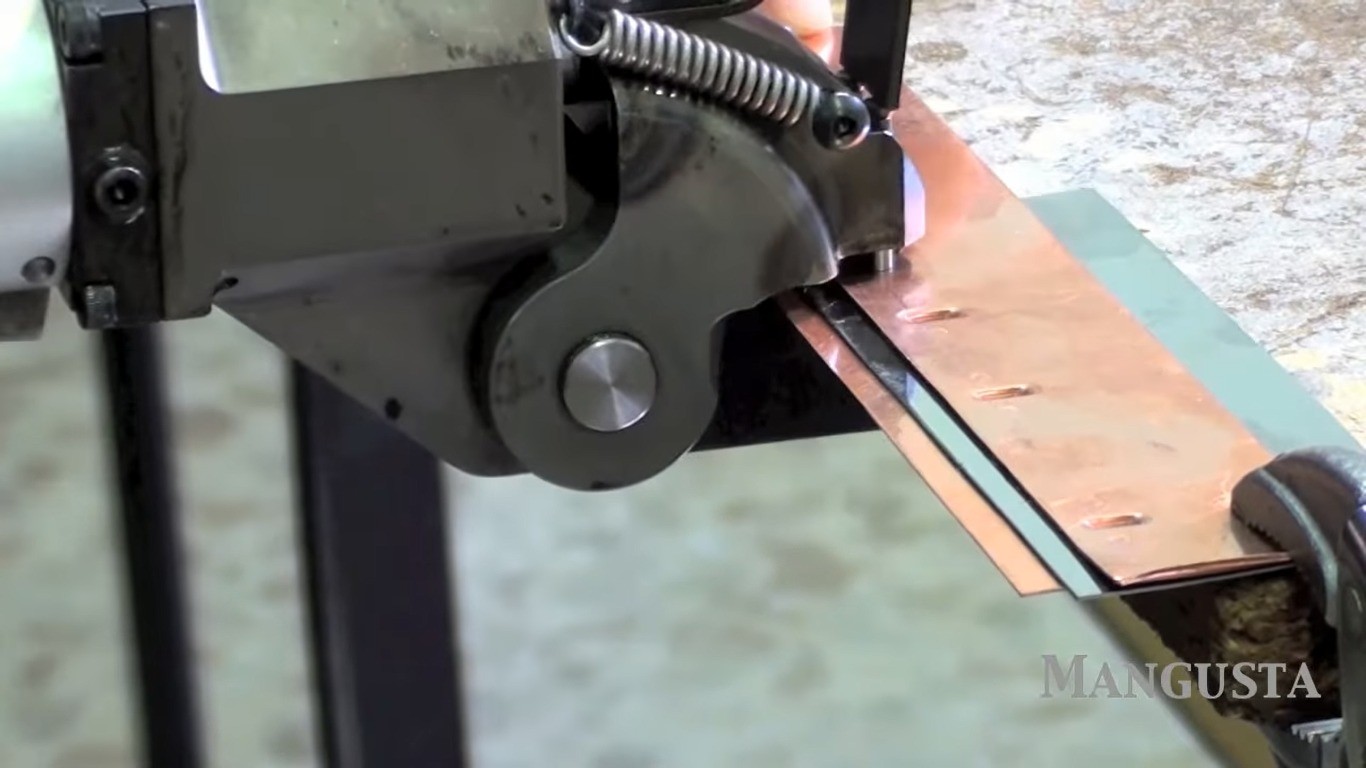

The deformation of metal sheets that are pressed in between the punch and the die is forced to extend laterally till they create a button-like shape. This area/point - trapezoidal/round type is decided by a trapezoidal punch and die/ or a round one.

Round points provide uniform strain in all directions.

The trapezoidal joint, on the other hand, allows for easy joining and can be applied to more than two layers.

Based in Italy, Jurado is known for its specialized and patented tools, which are used worldwide. Their innovative clinching machines are great tools for gaining an edge over the competition and finding a better solution for joining metal sheets. Explore their range with us. YES Machinery also offers a two-year warranty on these machines along with our expert assistance.

Let's dive deeper.

Opposed to usual welding methods, Clinching joins various metals without any additional use of multiple elements like fill or weld materials, pegs, screws, rivets, nuts, and bolts.

The plastic deformation gives a rough and tough joining as a result of impressive technological breakthroughs. Applying localized pressure, along with the determined shape and features of the clinching tool, determines the joining of the materials. Even today, clinching is subject to rigorous research and innovations, and engineers at Jurado are destined to improve it further and further.

In our company's and universities' partnership program, many students are given internships as well as scholarships in the area of “Theoretical and experimental development of methods studies for analysis and improvement of the joining process by clinching.

Materials that are frequently clinched

• Low carbon steel, aluminum alloys, high strength steels, copper, titanium alloys, magnesium alloys, hybrid joints of metals and polymers, galvanized sheet metals, and even other paint-coated surfaces.




It is an immediate joining process. Please do not use any heating methods for the best clinching results.

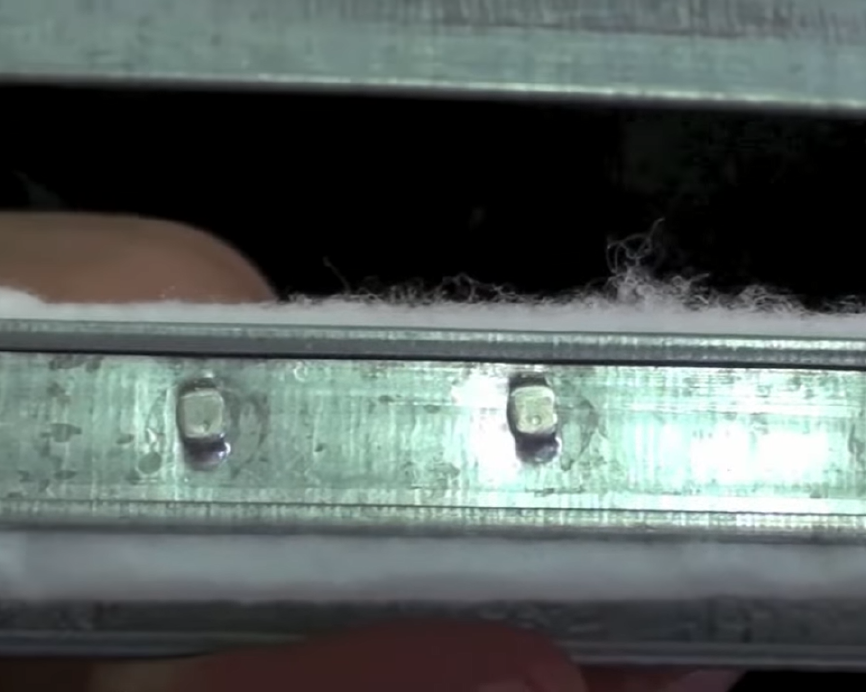

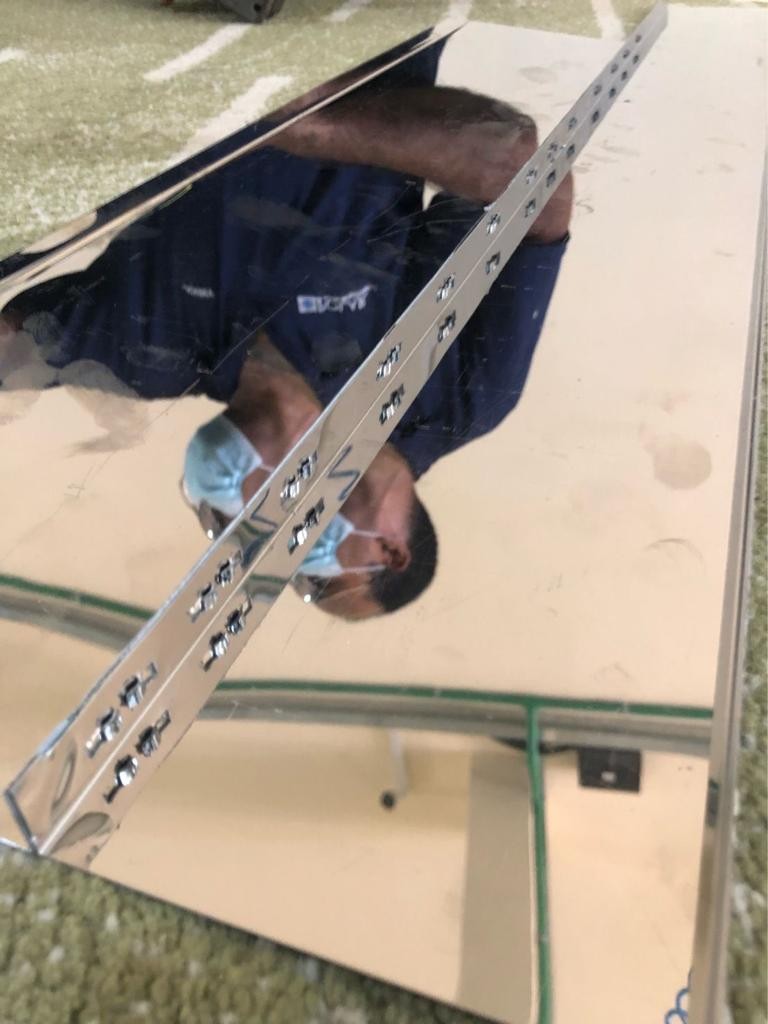

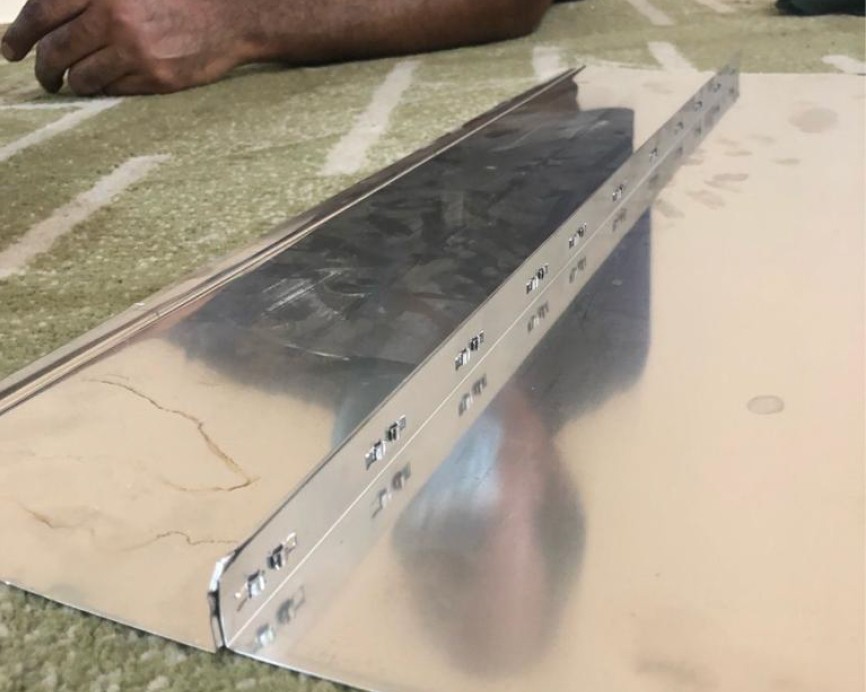

JURADO CLINCHING POINT SHAPES

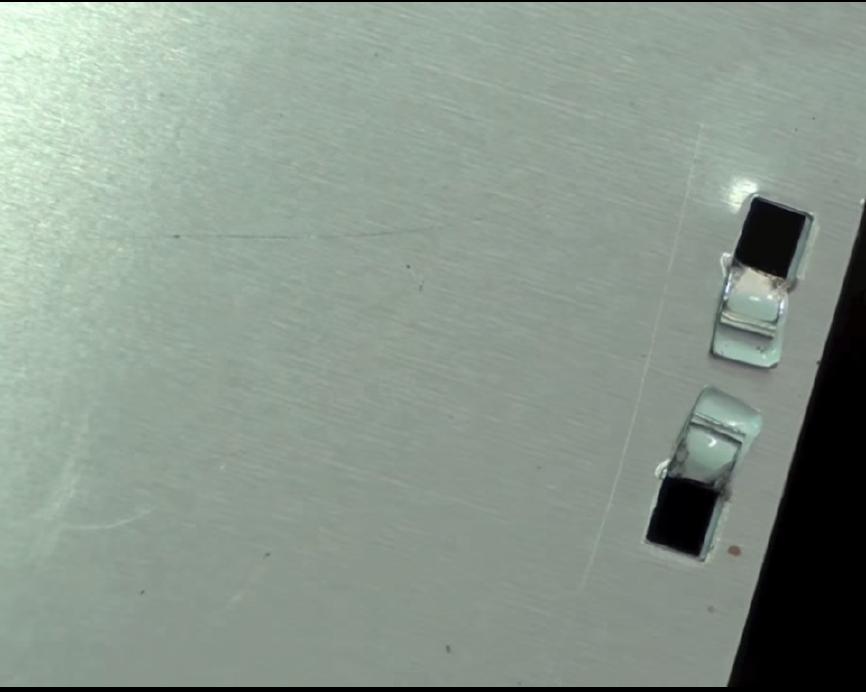

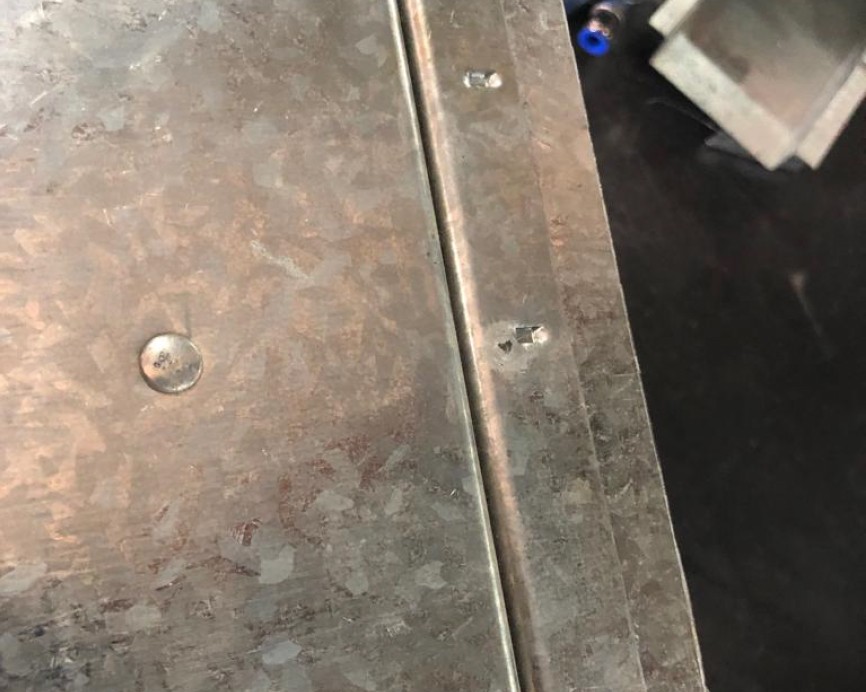

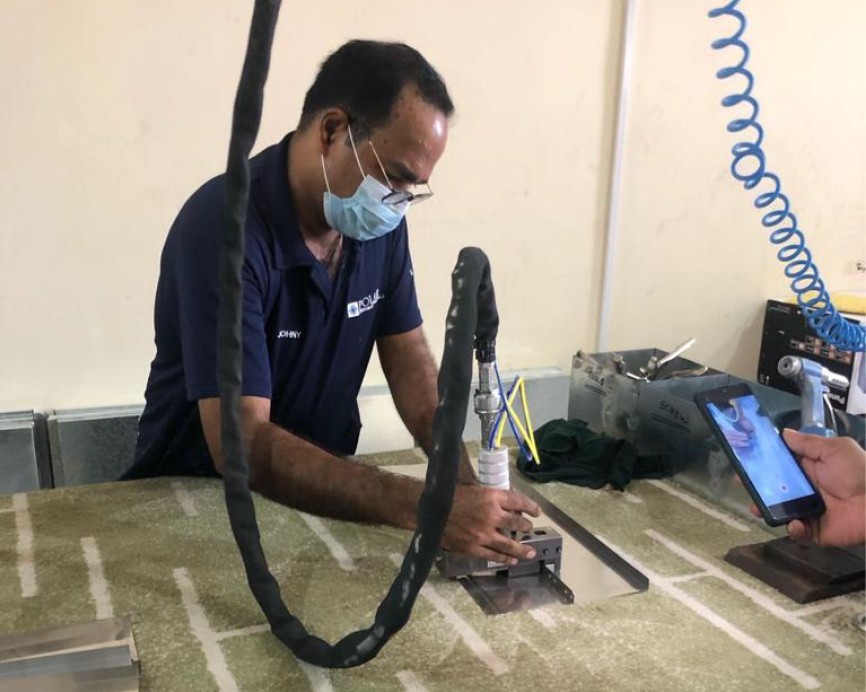

Under mechanical pressure, when metal sheets are forced into the dies, sheet deformity is observed, which forms an interlock button. You can refer to the video 1.1

When applying the clinching machine, advised decisions should be made because the junction resistance depends mainly upon the dimension and shape of the clinching point. This is proven to provide the best results.

Round joints, as mentioned before, provide uniform stress as well as aestheticity.

Clinching has brought the world further with its innovative technology and applications.

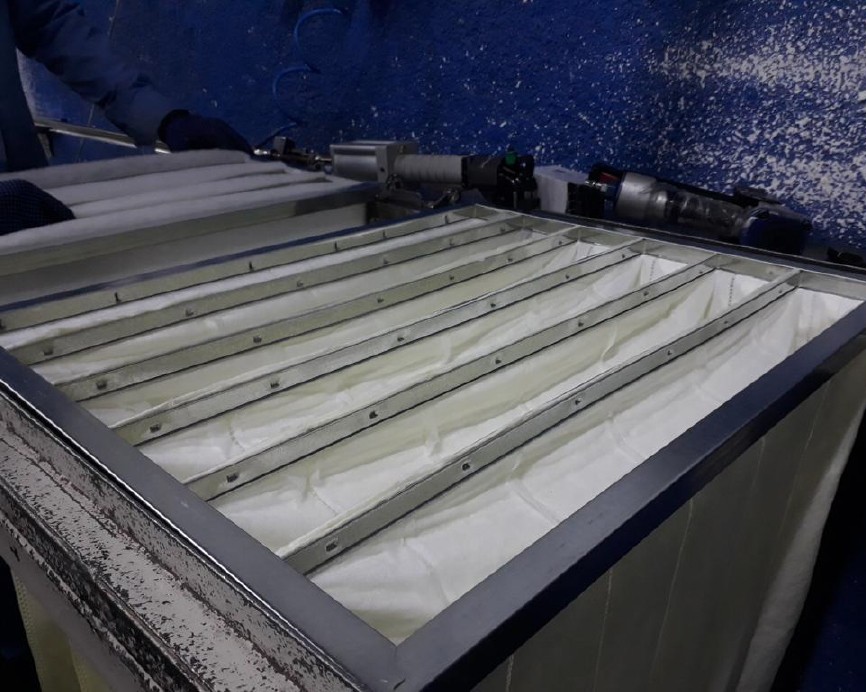

Applications of clinching tools:

1.


   Automotive and transport: Clinching has found numerous applications in automotive industries/manufacturers, as it plays a crucial role in component fabrications for trains, carriages, aircraft, boats, and ships. The aerospace industry is currently seen experimenting with clinching for lightweight construction.




2. Agri Equipments: Currently undergoing a significant evolution to make everything greener and emission-free, clinching is grinding its space among the agricultural industry.




3. Civil Engineering and Construction: Excavators, cranes, and other equipment are being fabricated using clinching machines.




4. Household electronic equipment and appliances: Clinching can frequently replace welding as it is much less time-consuming compared to other techniques; metal sheet functioning is a frequent activity in this field.




5. Medical Engineering: In the world of medical engineering, breakthroughs are as frequent as football matches in Europe. Clinching has found new glory in this field.




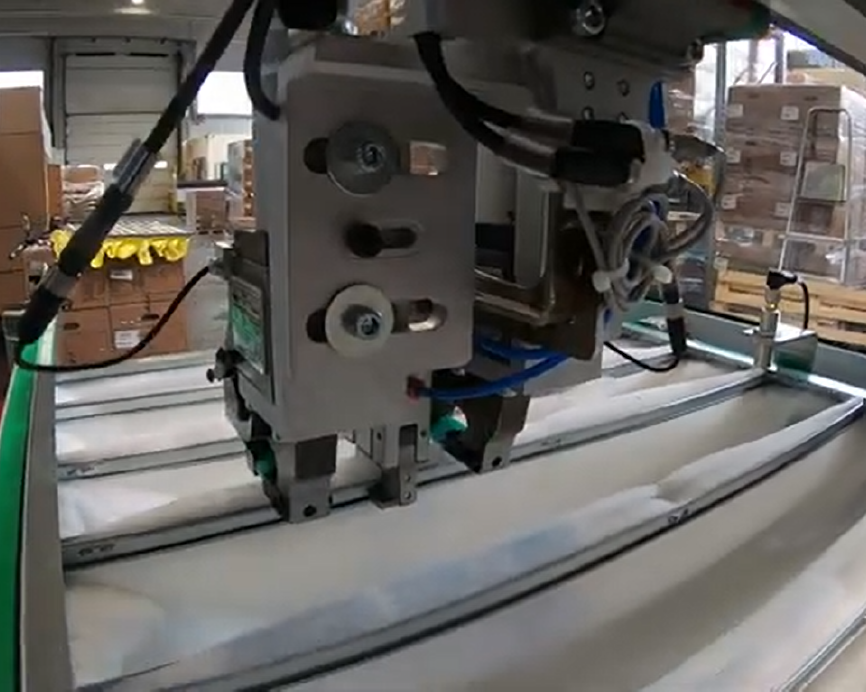

6. Mechanical Engineering: Leading to frequent innovation in assembly line manufacturing, new technologies are invented that are cost-effective and productive every now and then.




7. Chemicals and Energy Production: The energy sector is huge and comprises several subcategories, such as renewable energies and oil and gas. Even then, these have a gazillion sub-divisions that produce billions of dollars in revenue every year. Clinching has a very important role to play here, like intense weather lock against corrosion and wear.




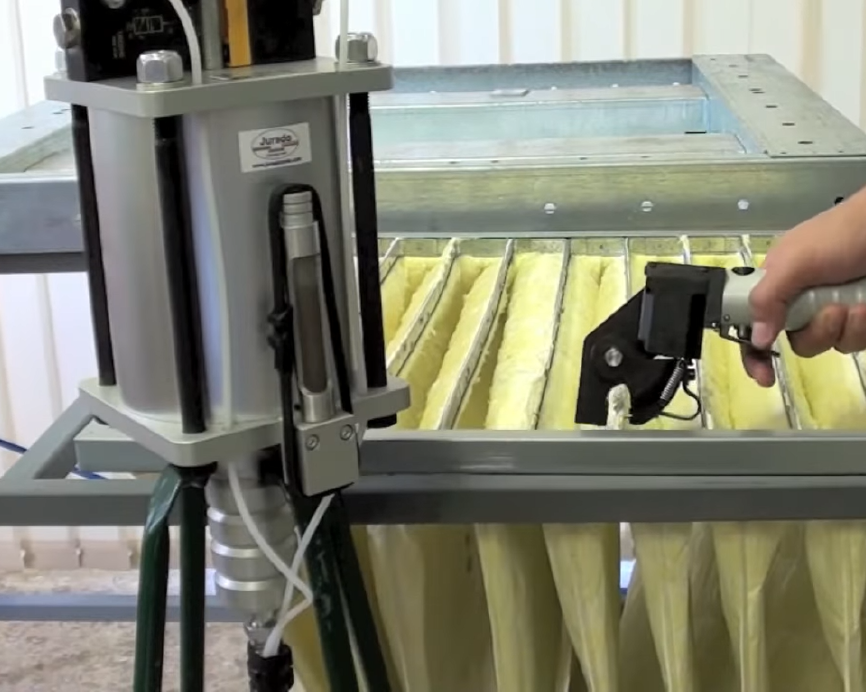

Static Clinching tools

Jurado offers a static clinching machine that can work interlocking joints on every kind of metal sheet.

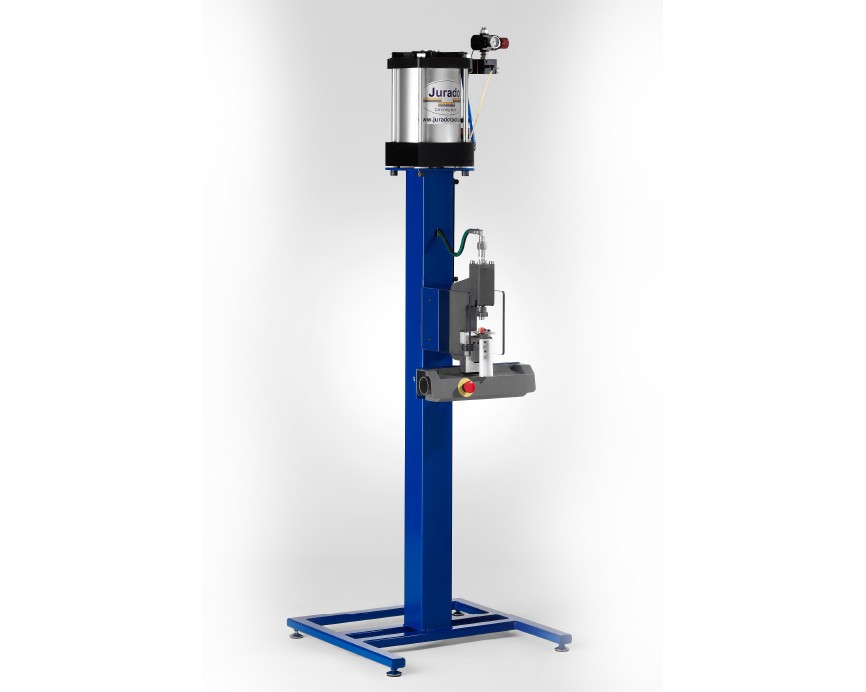

1. CB500 Static Clinching Machine: With its pneumatic pressure boosters, it's easy to operate with its two pedals. Because of the die and punch's wide opening size, it can efficiently perform both round and trapezoid interlocks.

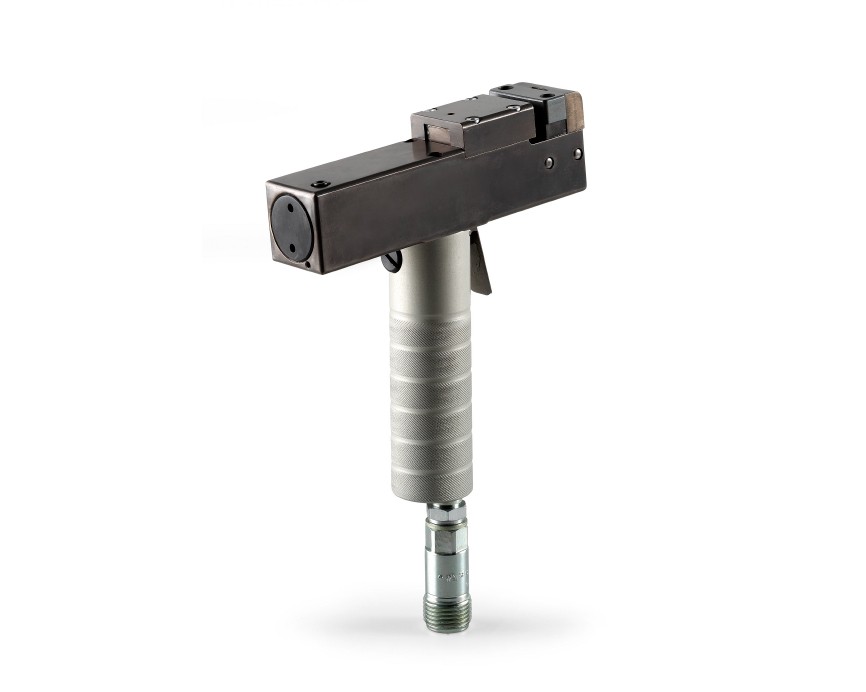

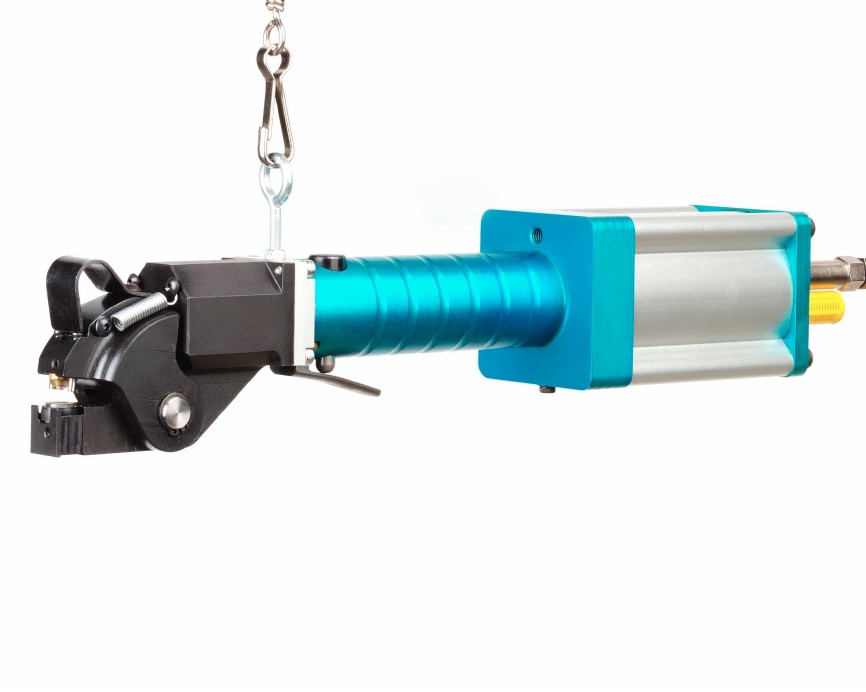

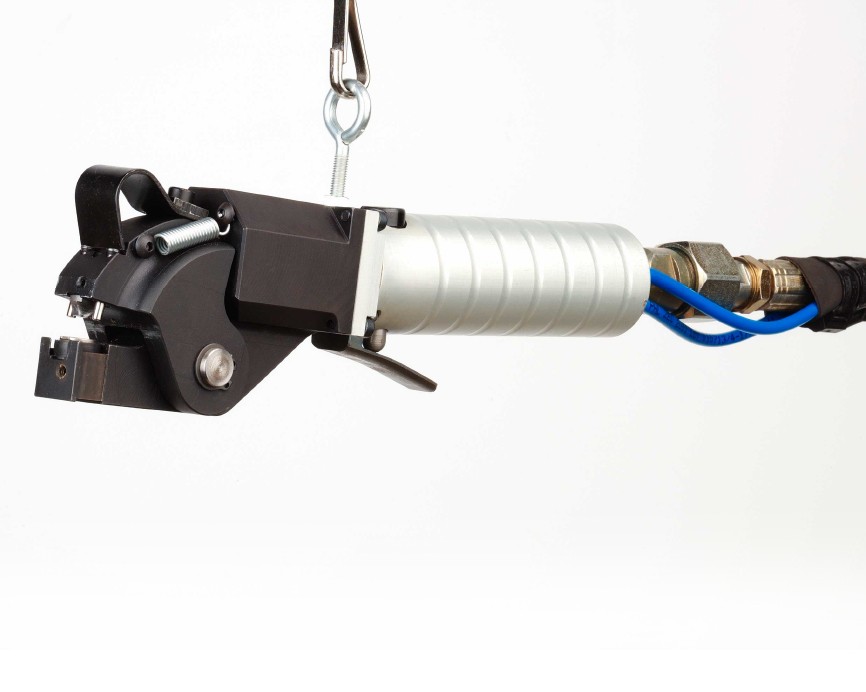

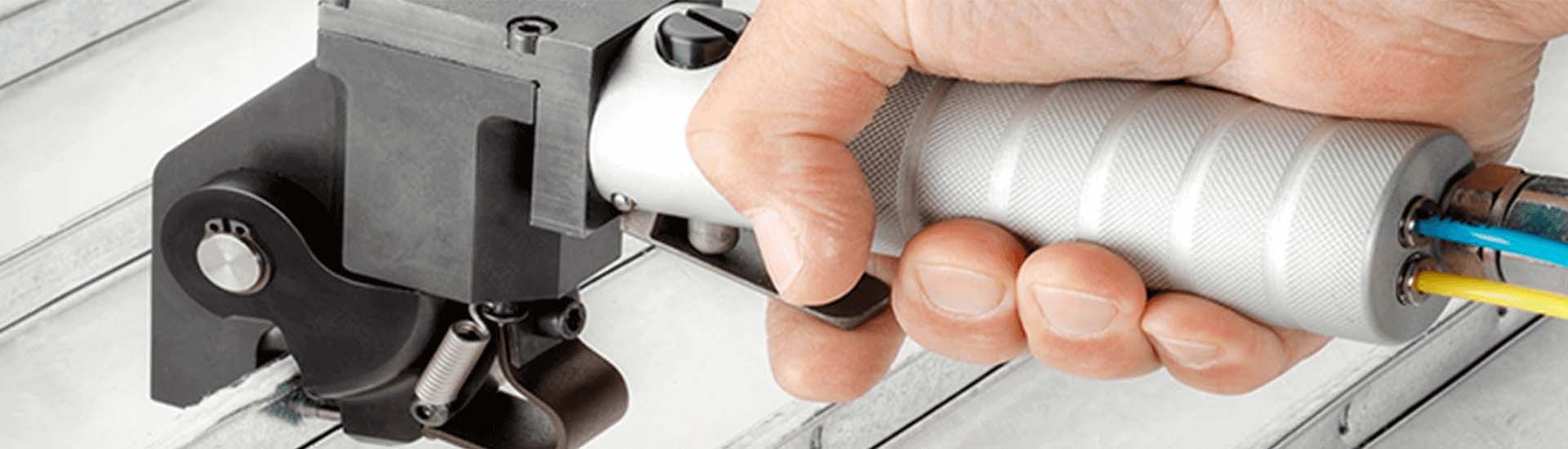

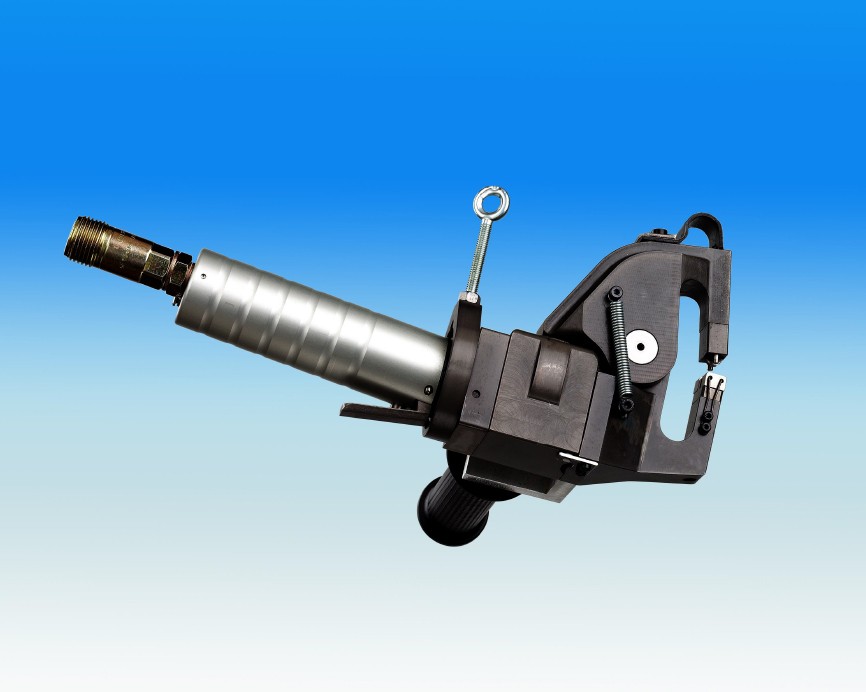

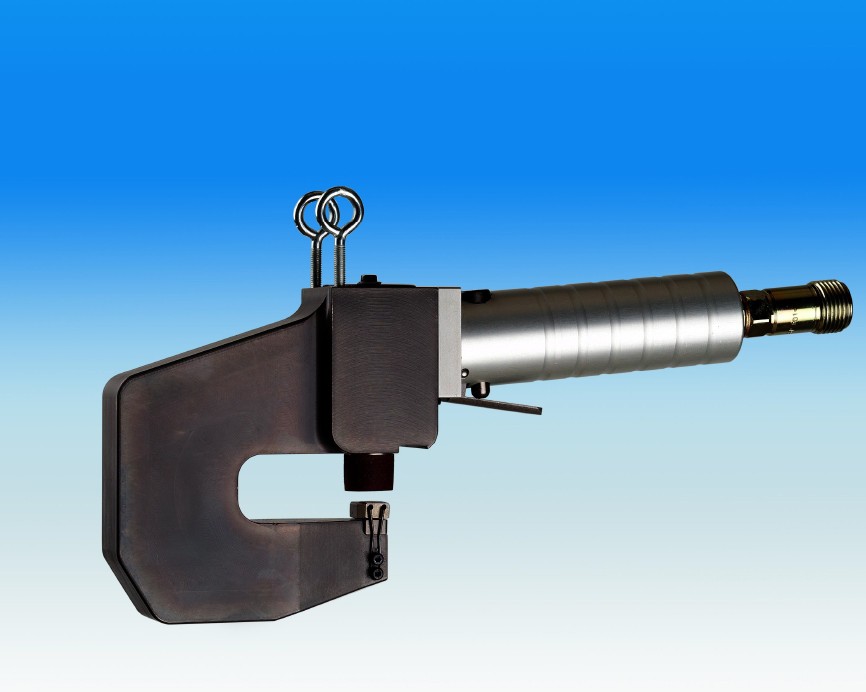

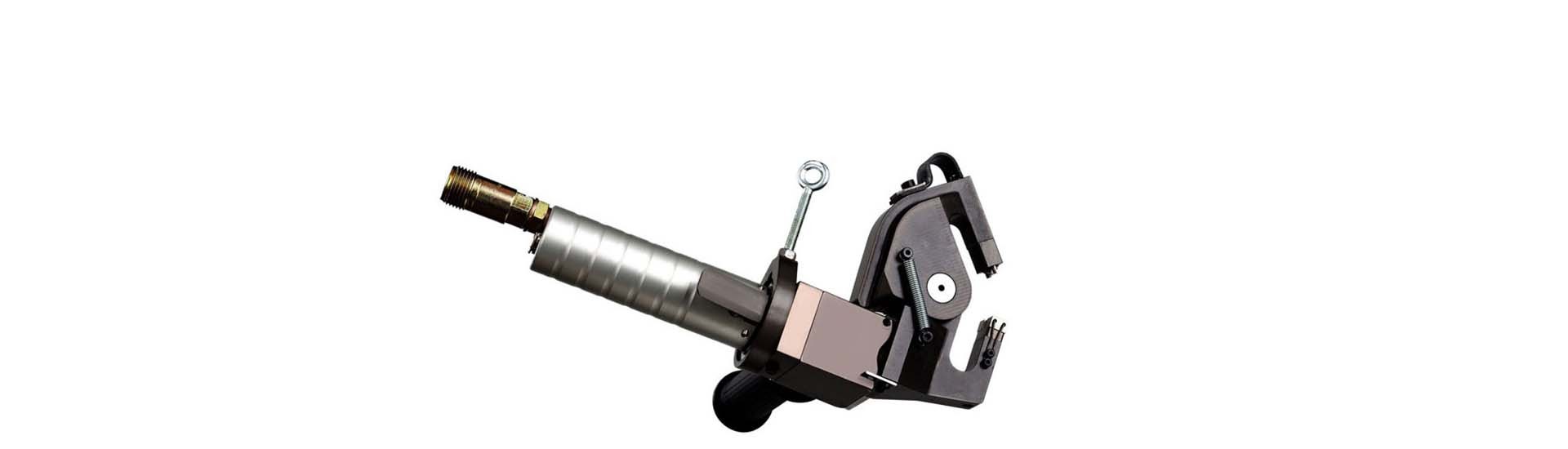

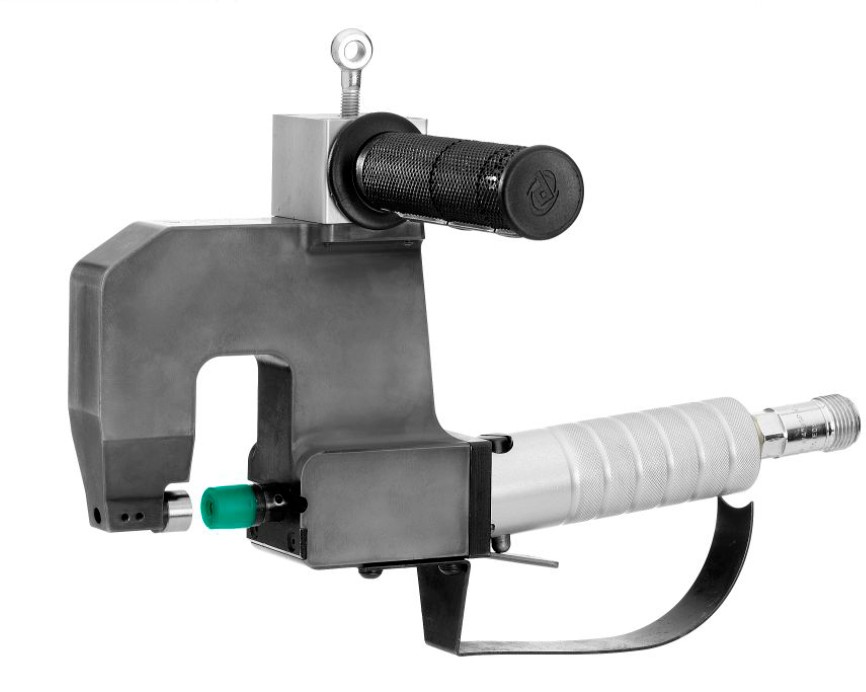

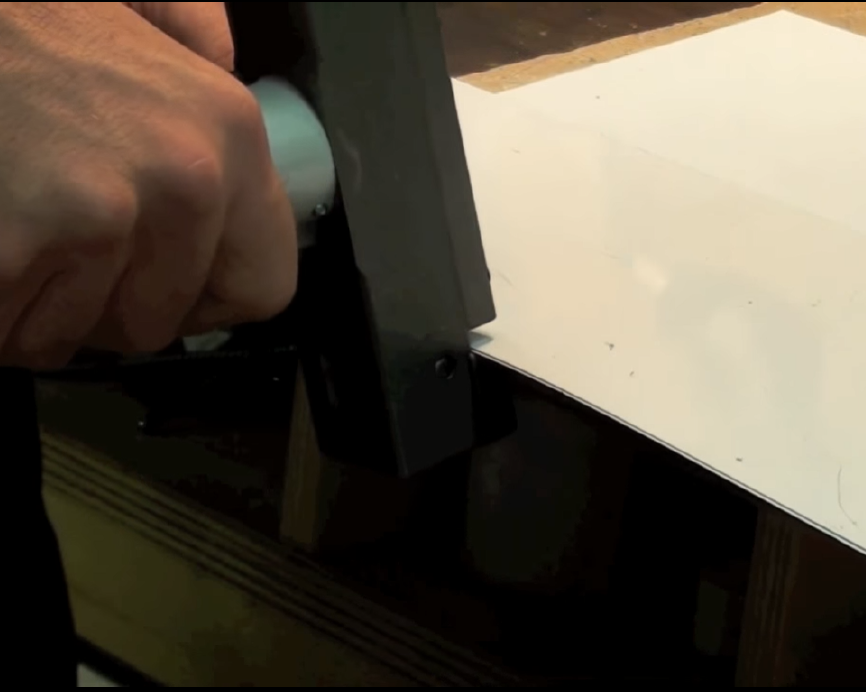

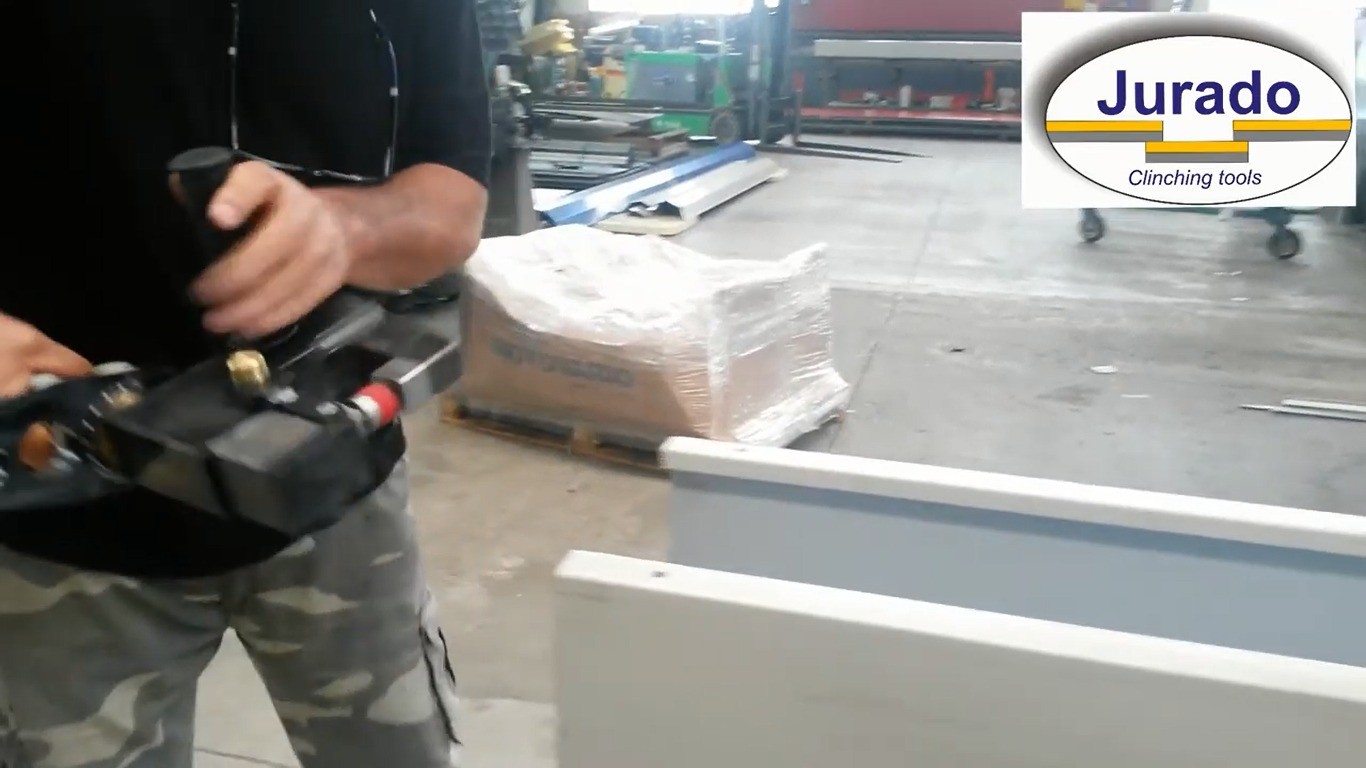

Mobile Clinching Tools

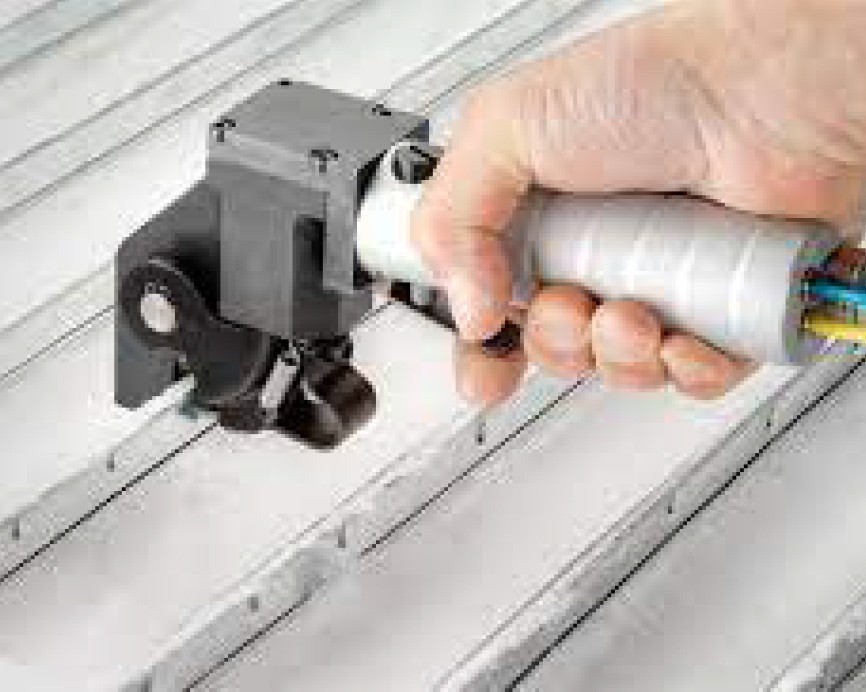

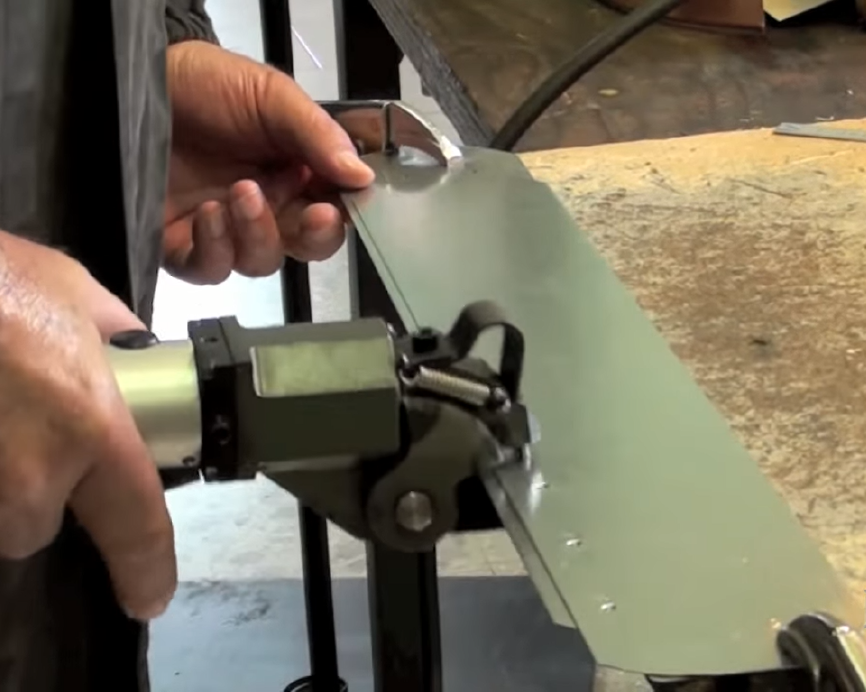

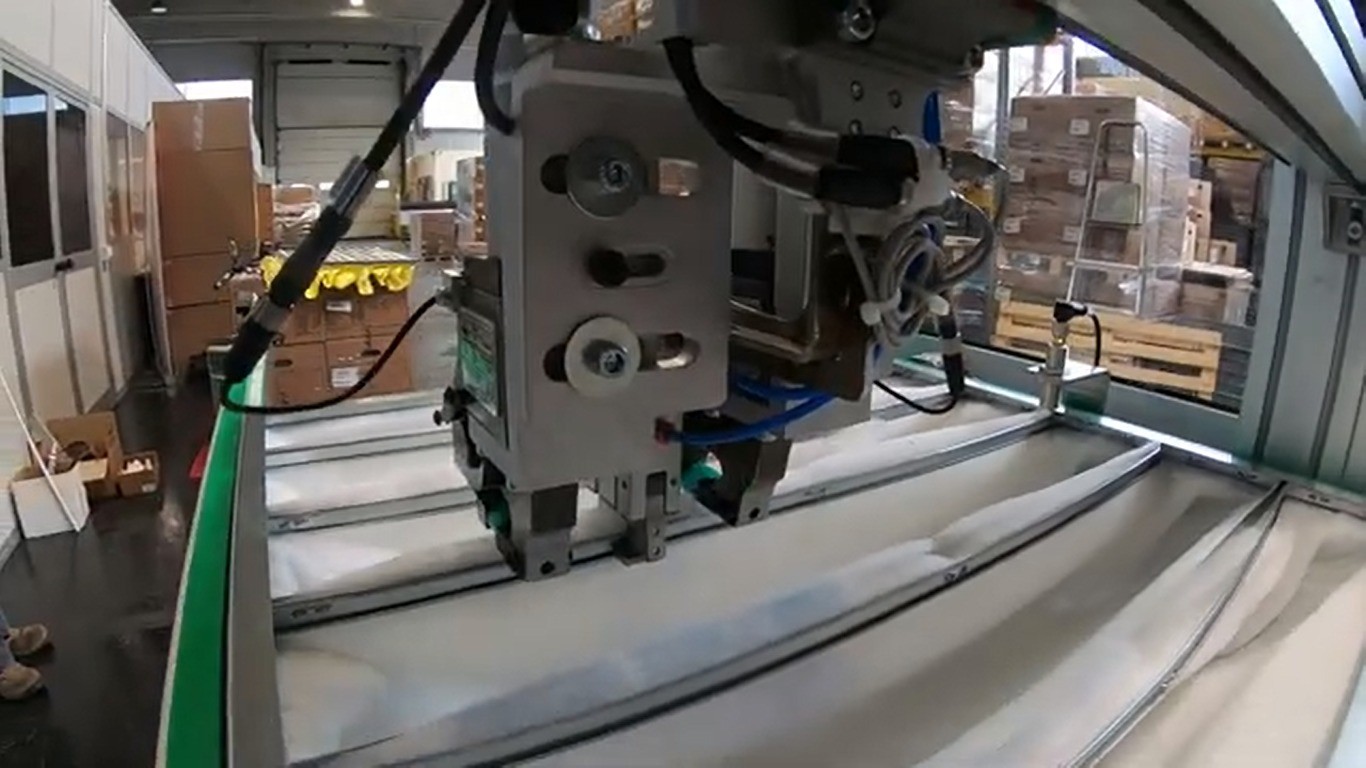

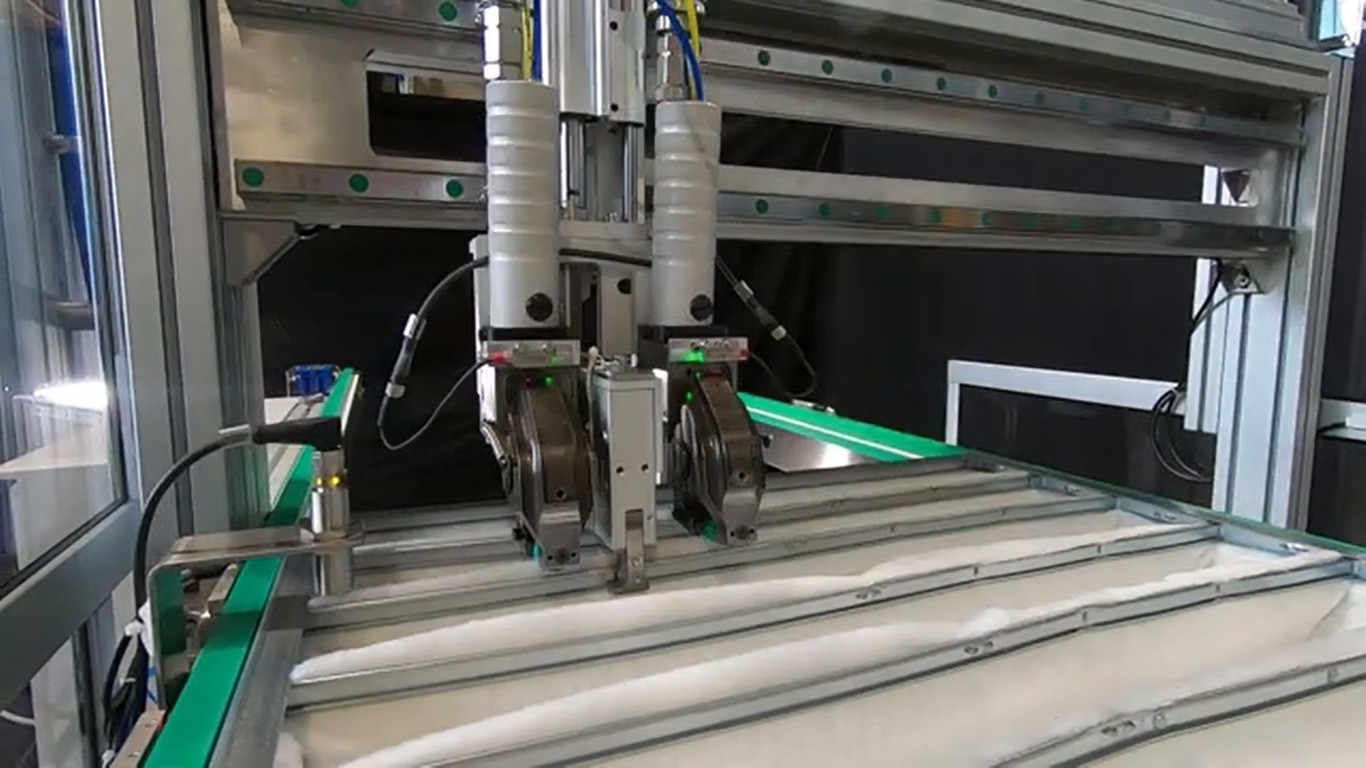

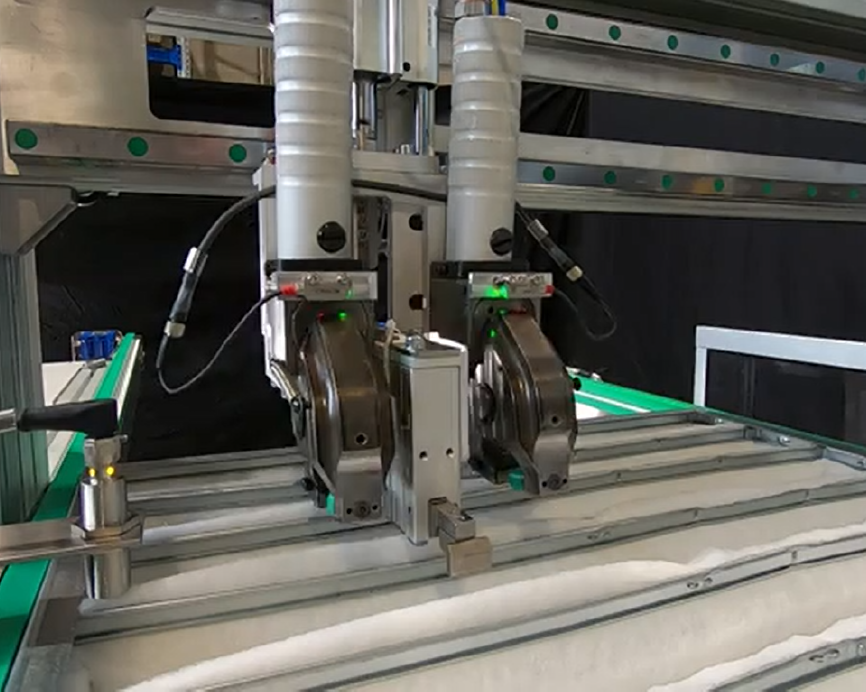

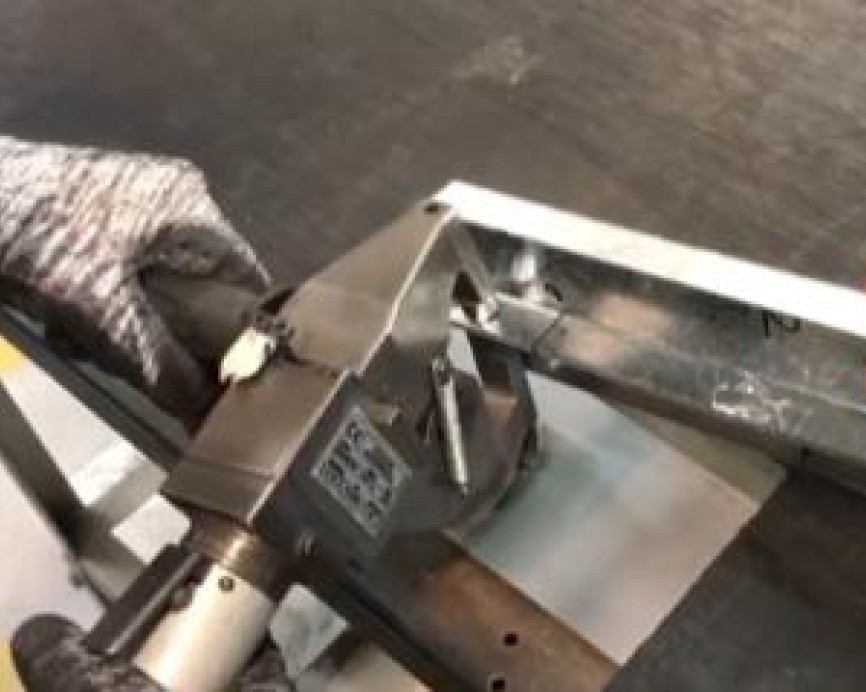

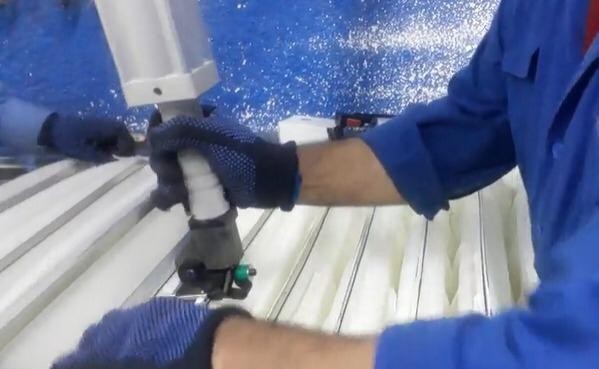

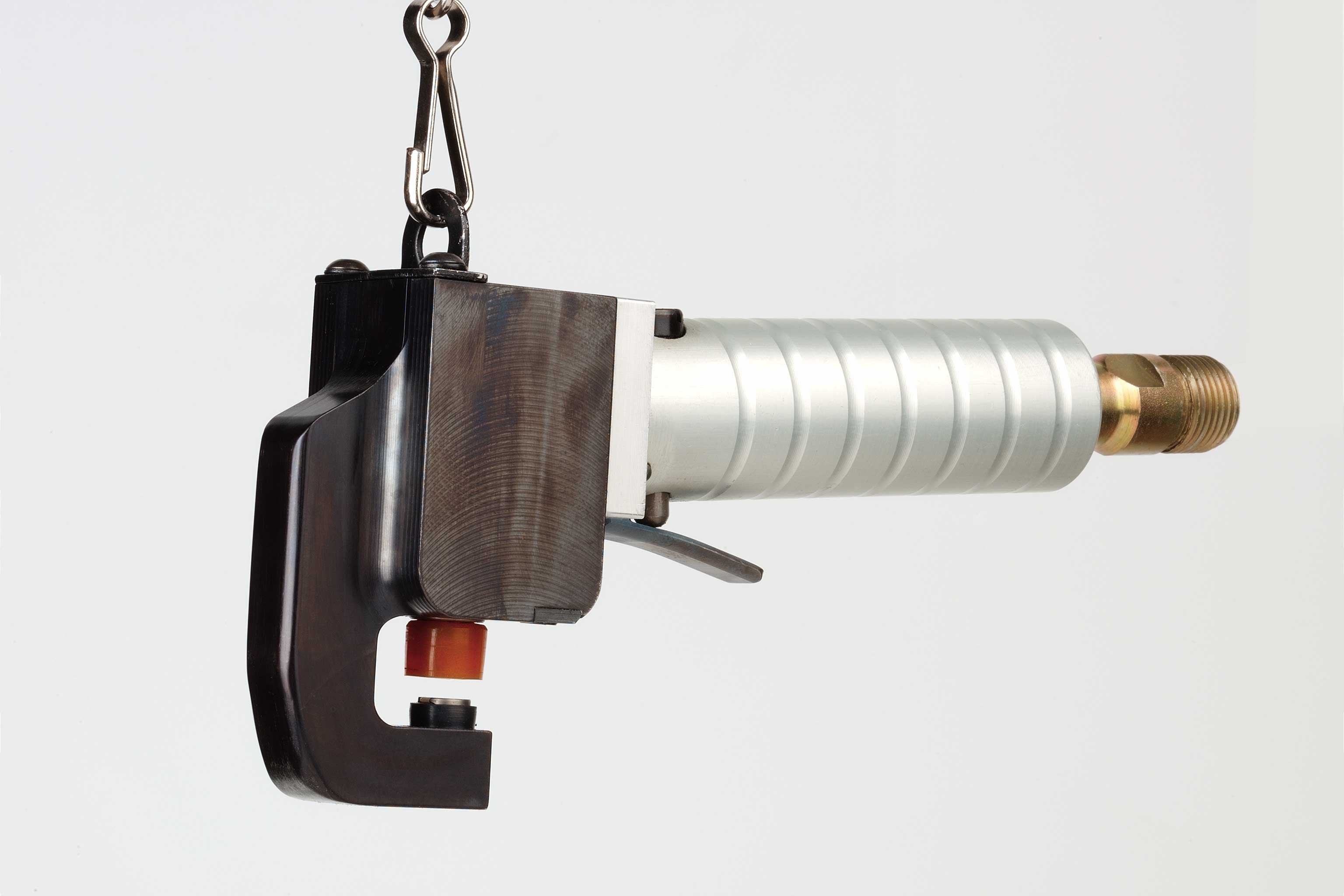

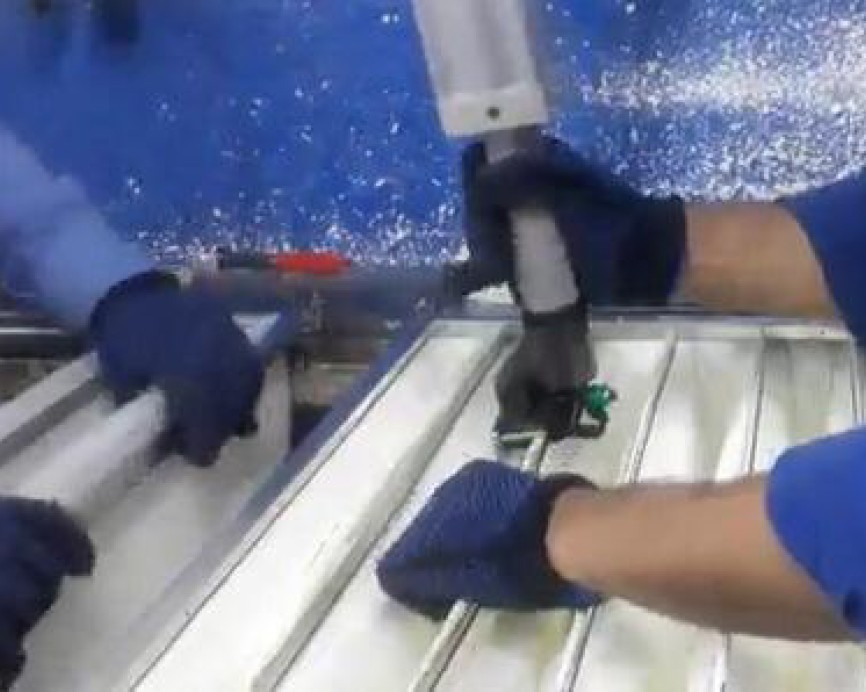

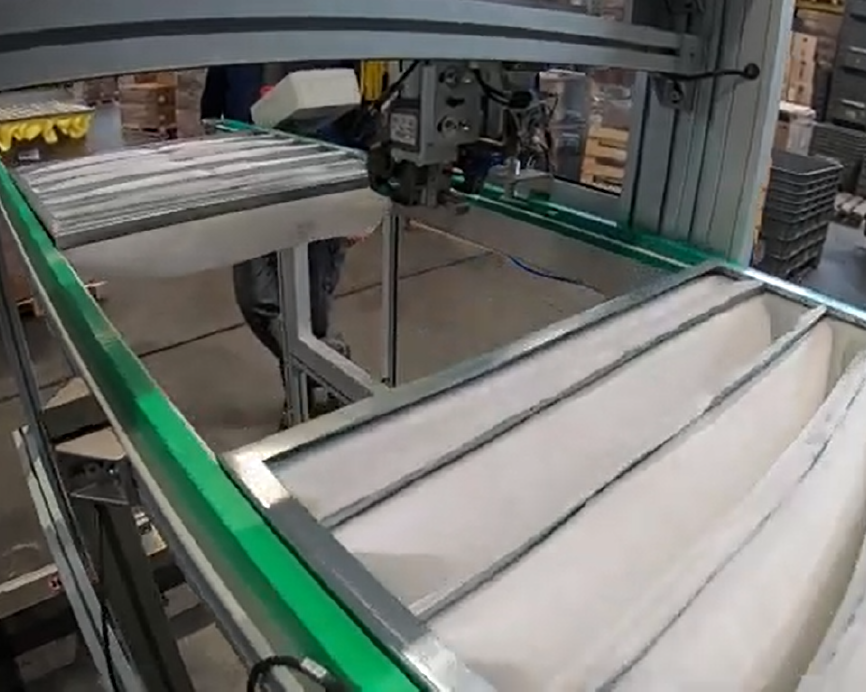

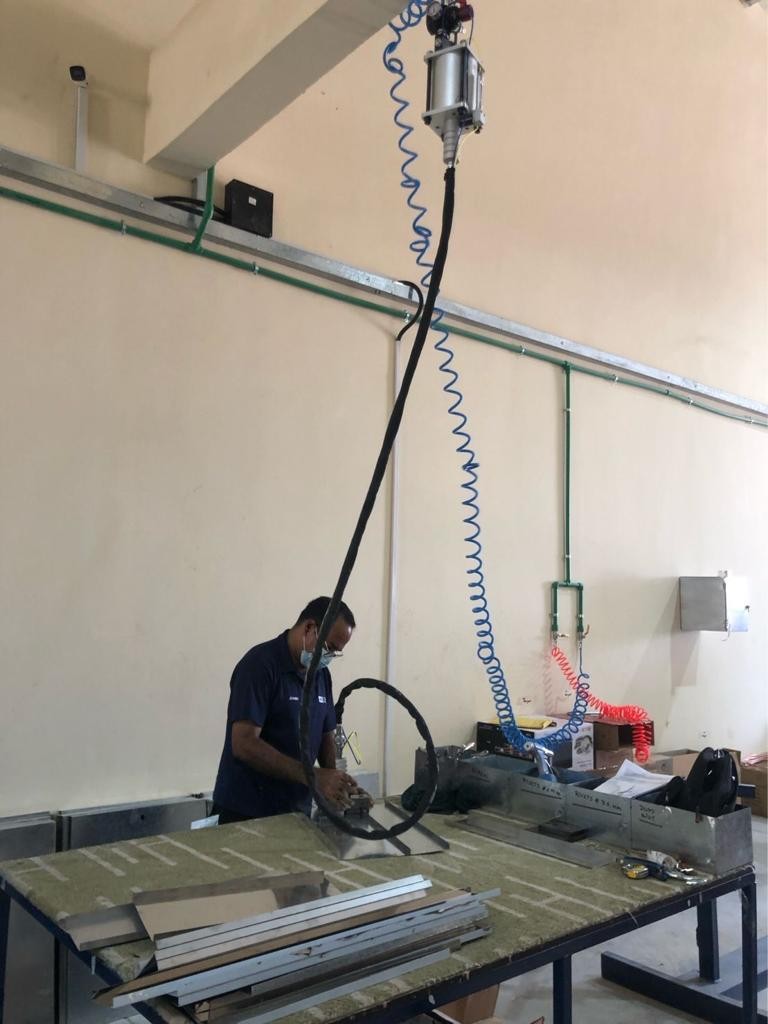

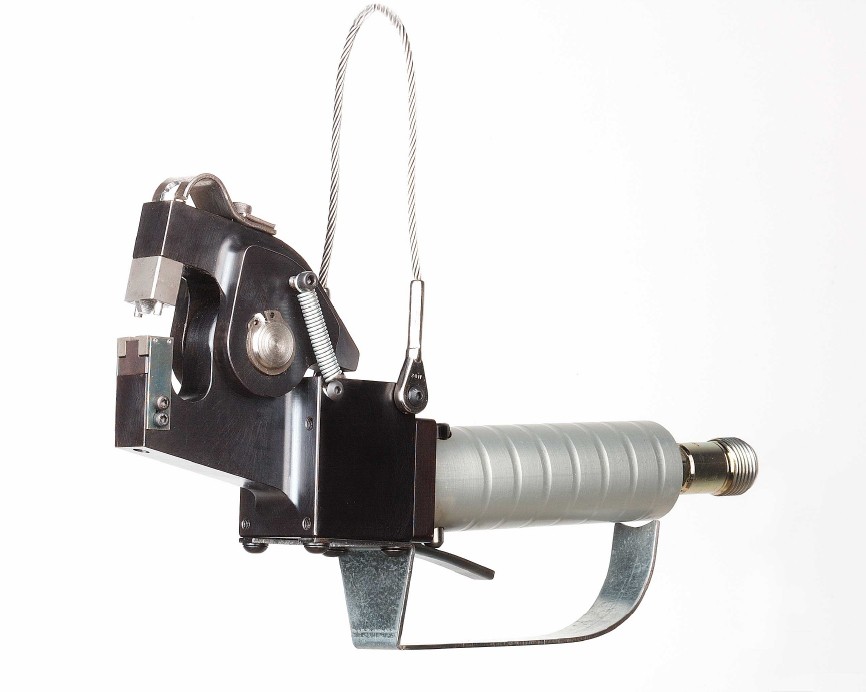

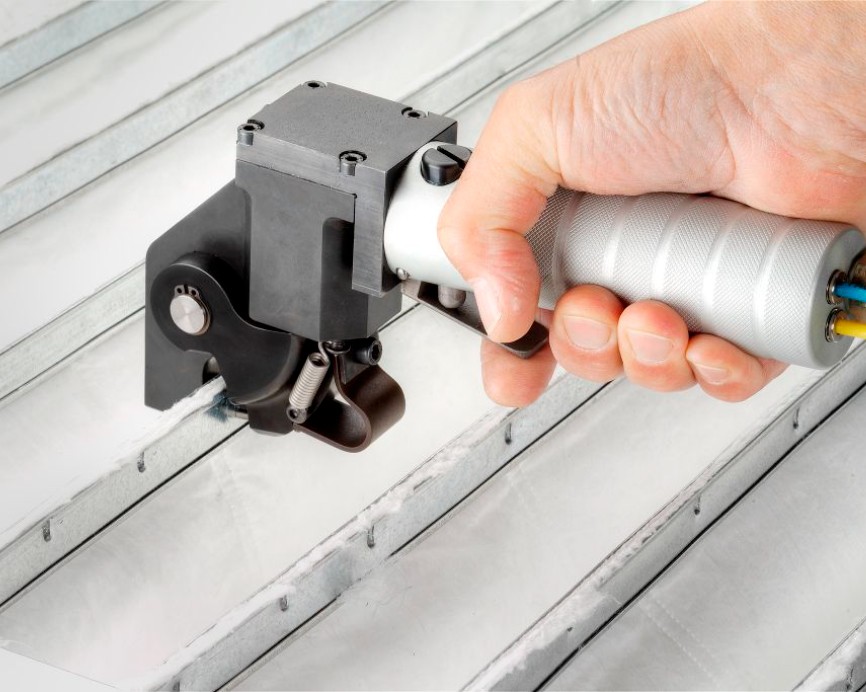

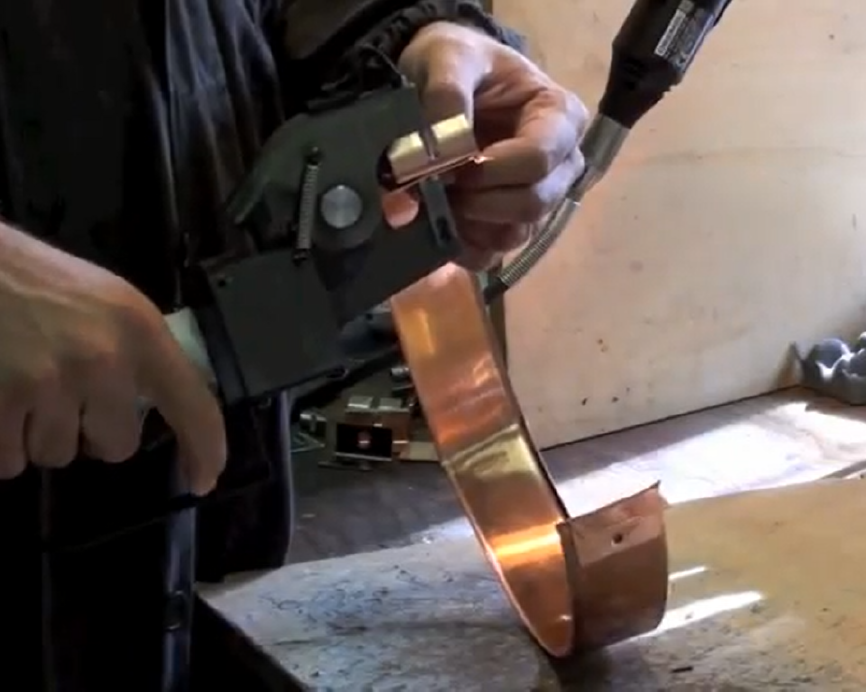

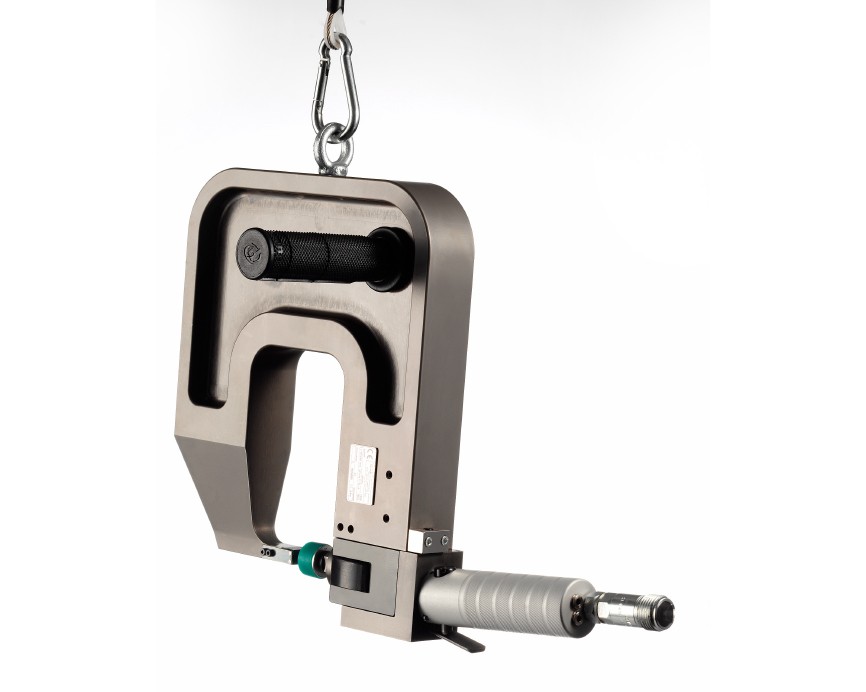

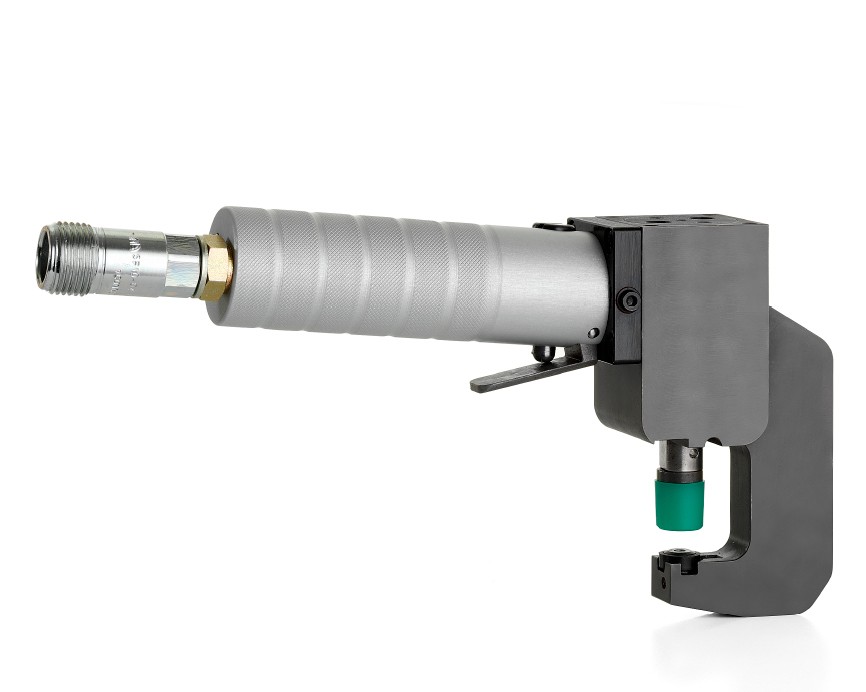

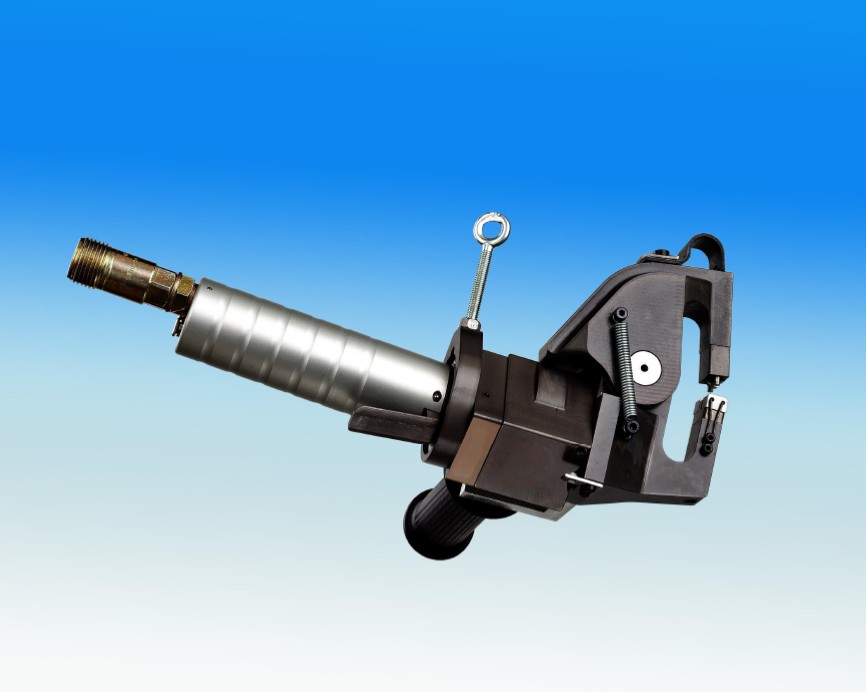

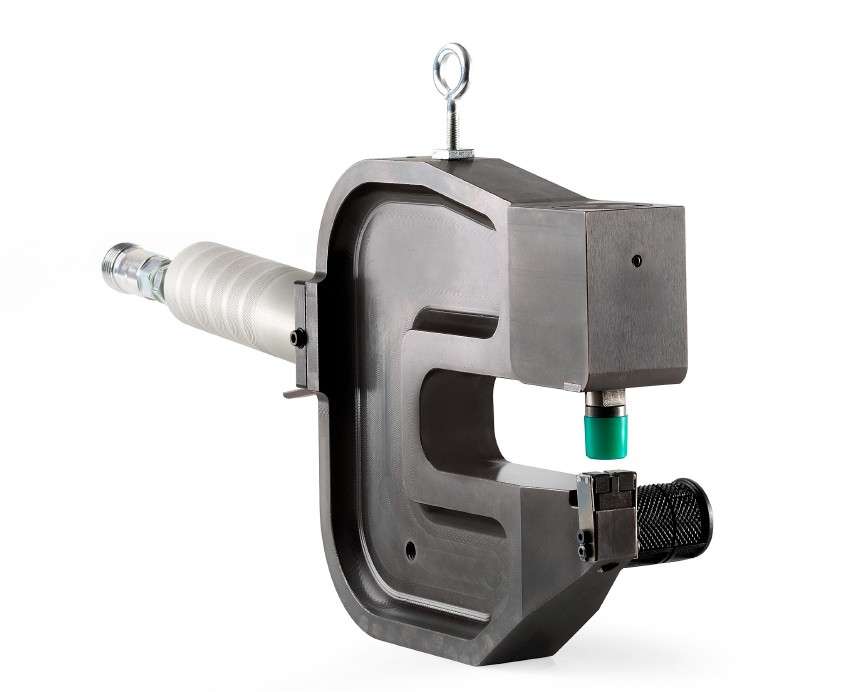

Jurado offers a wide range of mobile clinching machines packed with features that cater to a wide range of manufacturing purposes.

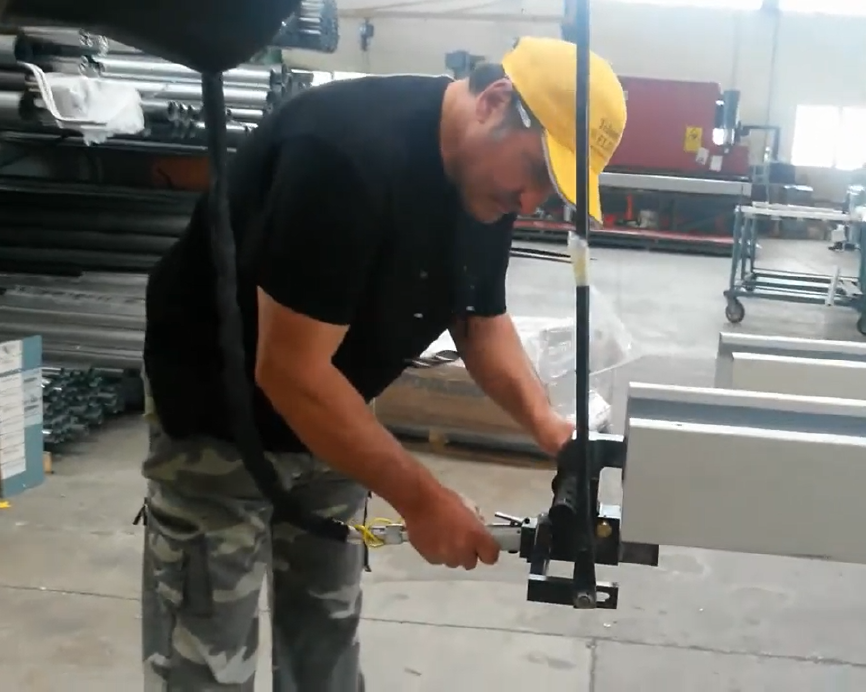

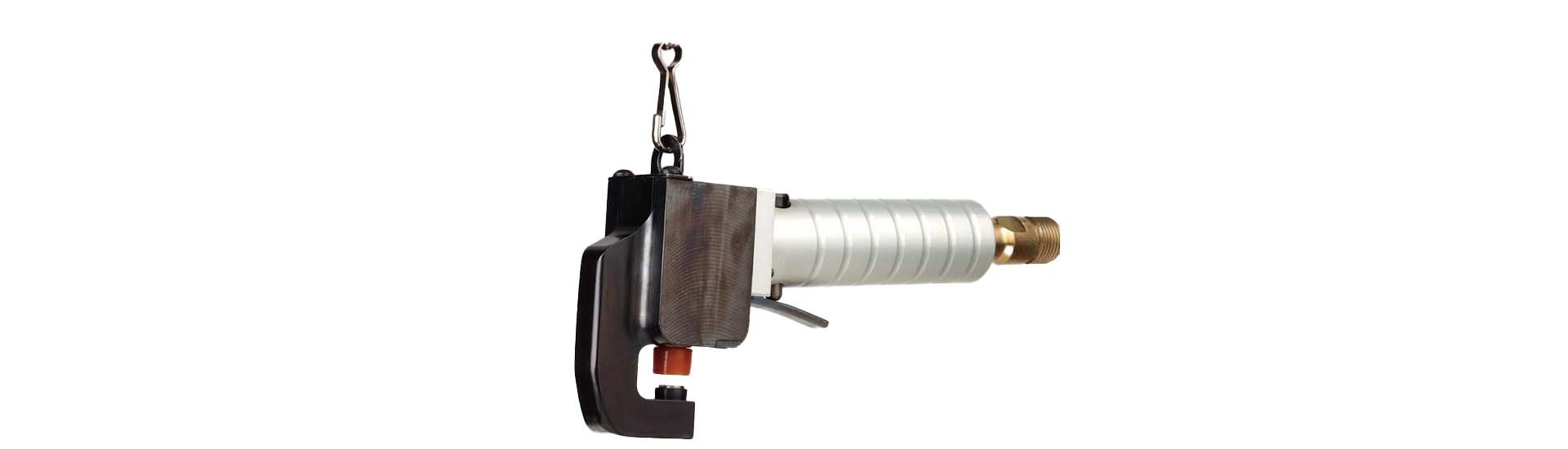

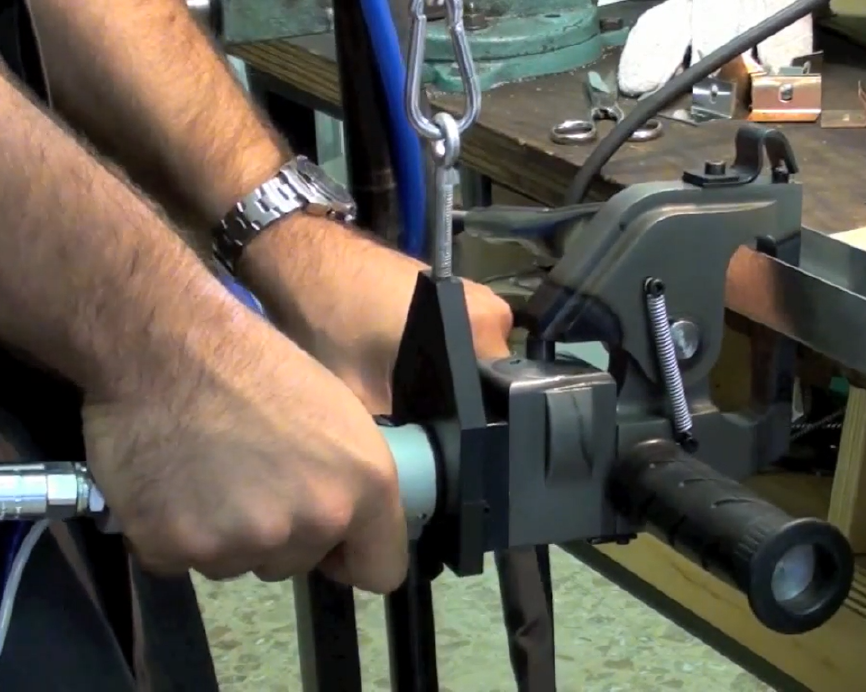

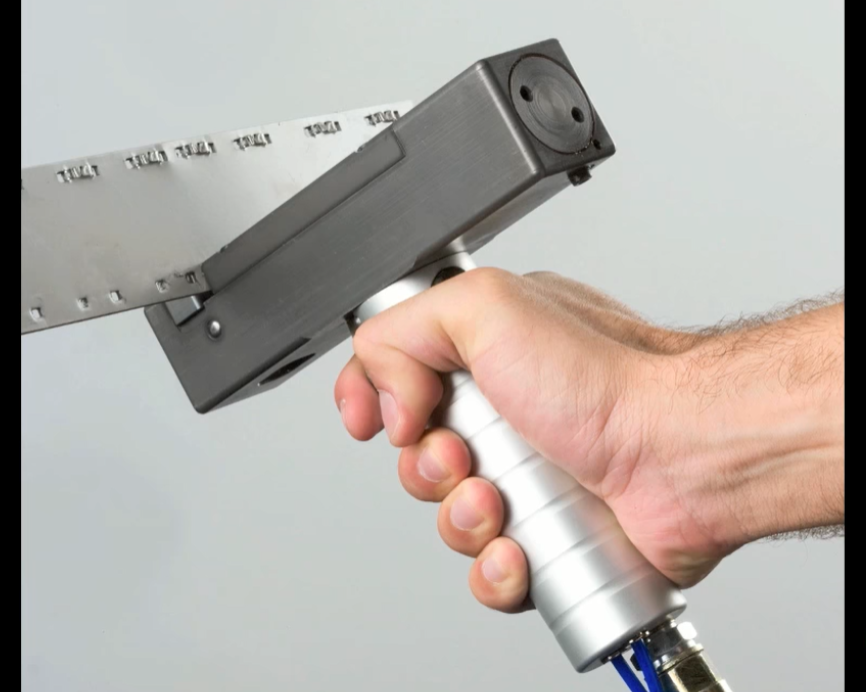

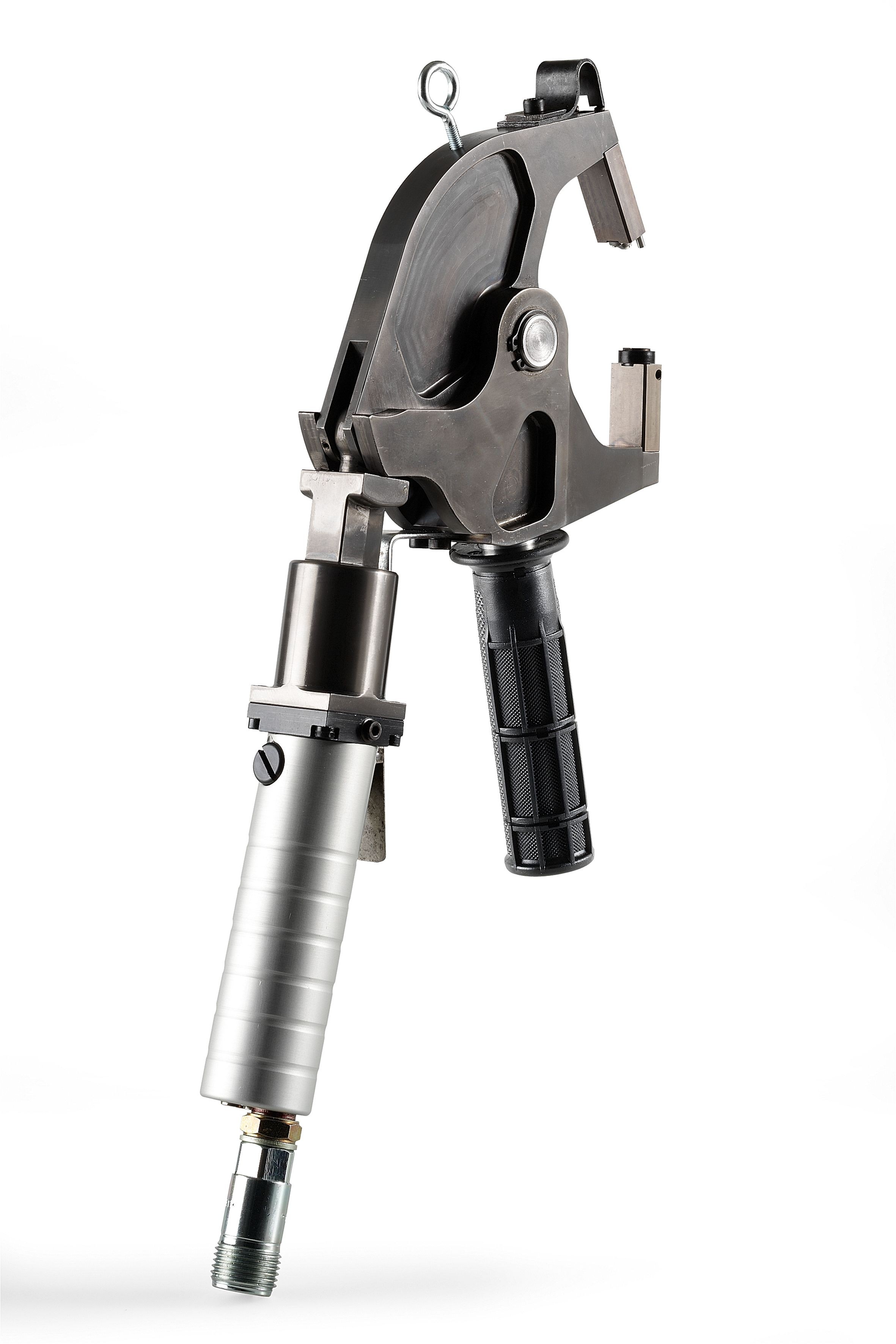

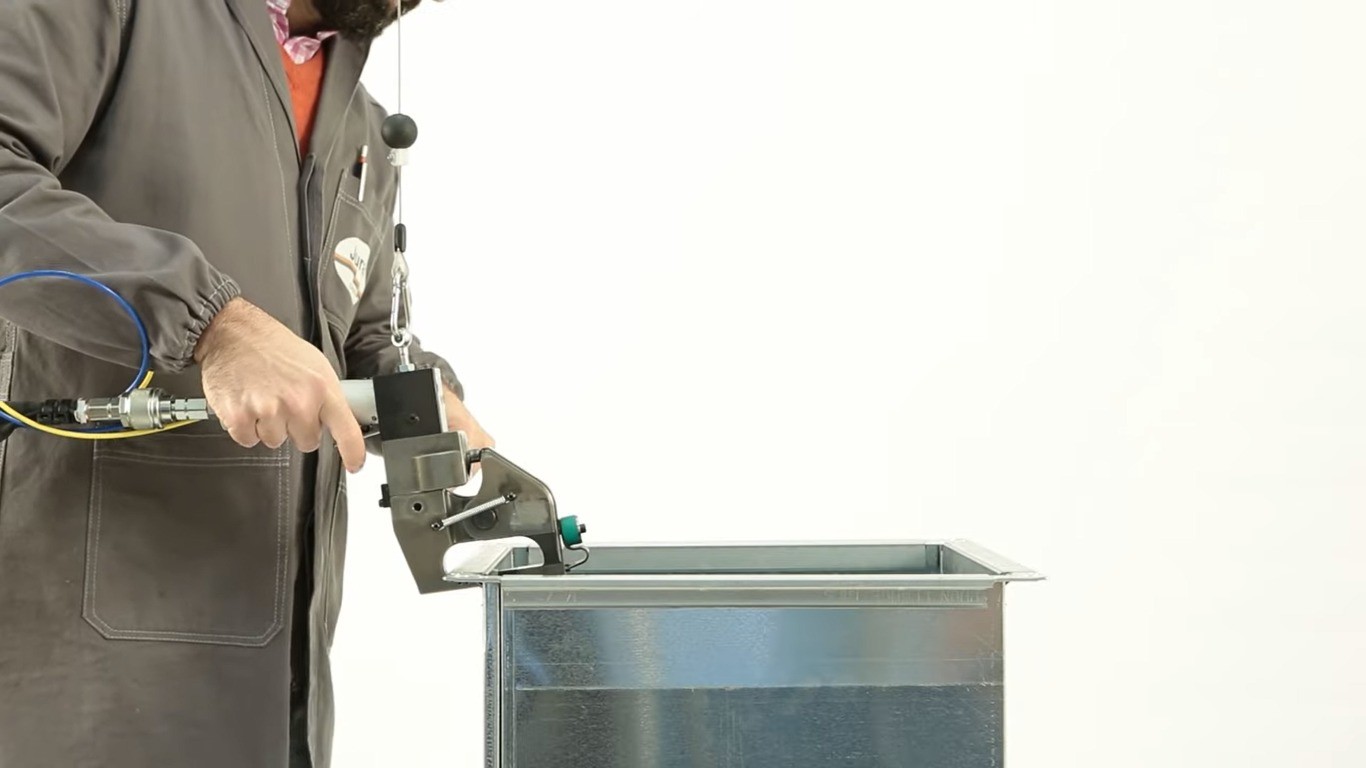

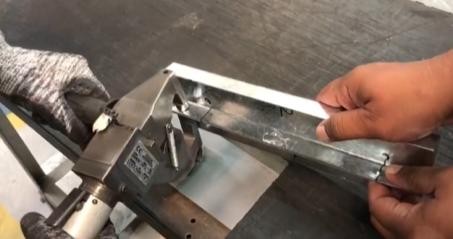

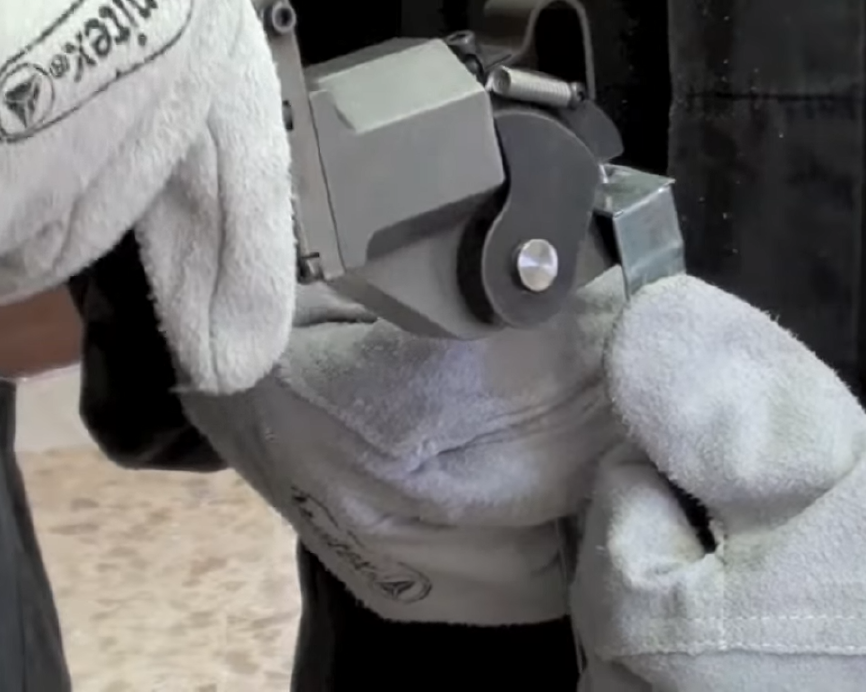

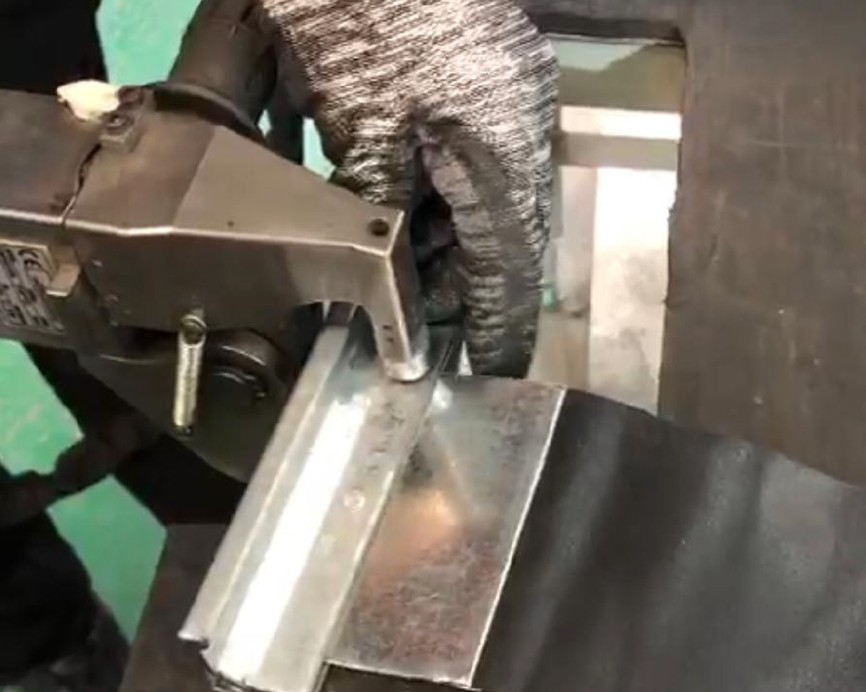

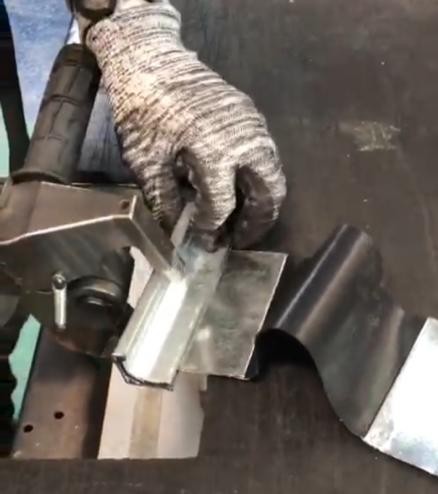

1. Cobra: Even in places with very little space, Cobra shines with its ergonomic design. It can easily clinch complex and demanding metal sheets. Its manual opening allows workers to perform clean and solid interlocking between sheets for irregular U-shaped pieces and corners.

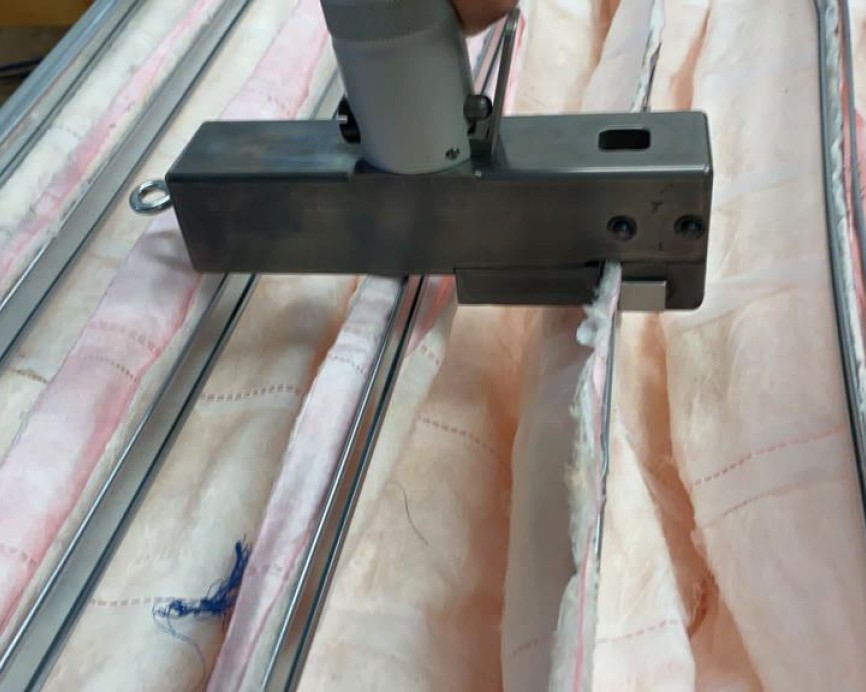

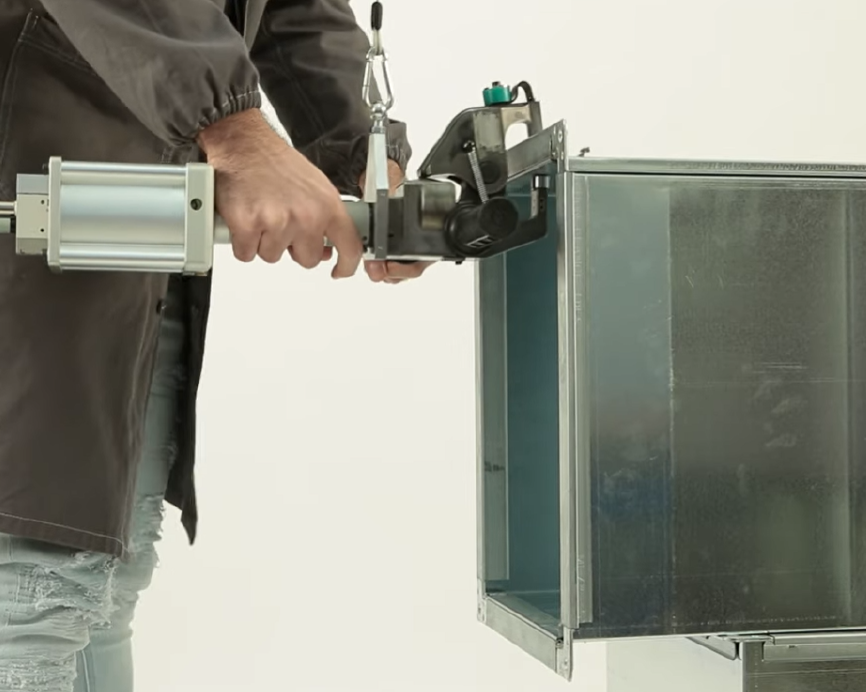

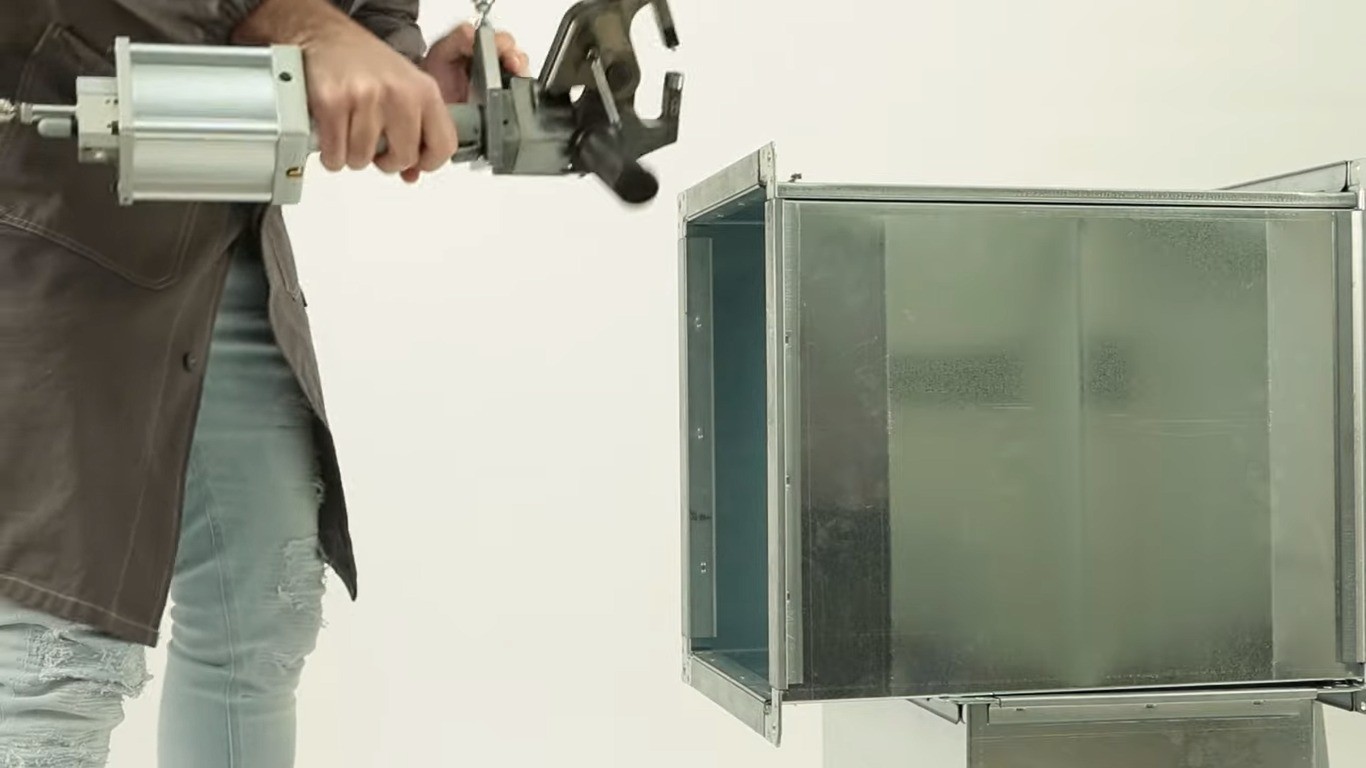

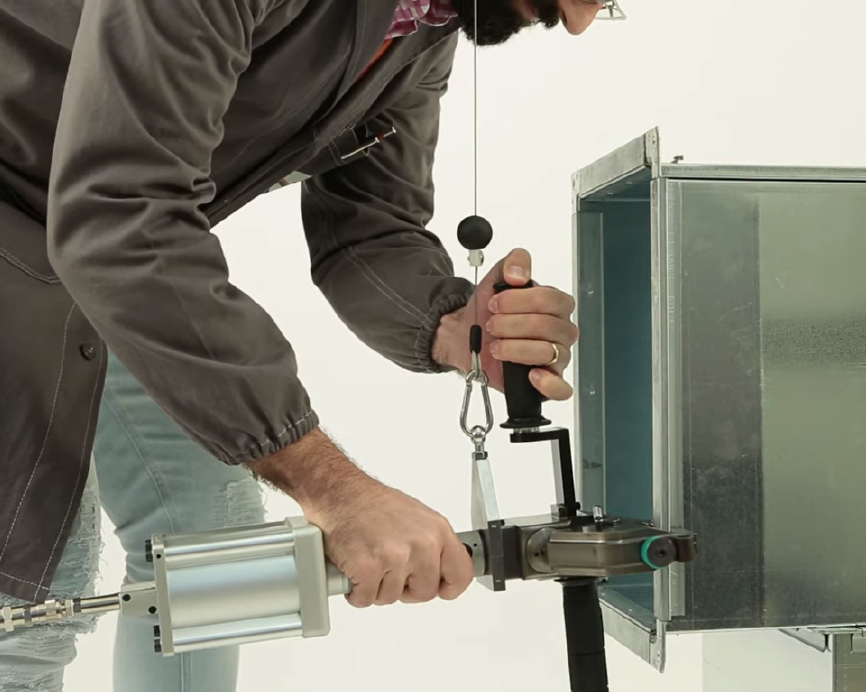

2. Shark: It can easily rotate the clinching machine over 360° for easy clinching of metal sheets as it is fitted on a gyroscope and known for its versatile applications for air ventilations and air channeling systems. The trapezoidal points up to 3 sheets of 1.2mm thickness as well as circular points on two sheets of 35 KN thrust.
