Head And Tailstock Positioner

3-Axis Welding and Handling Positioner

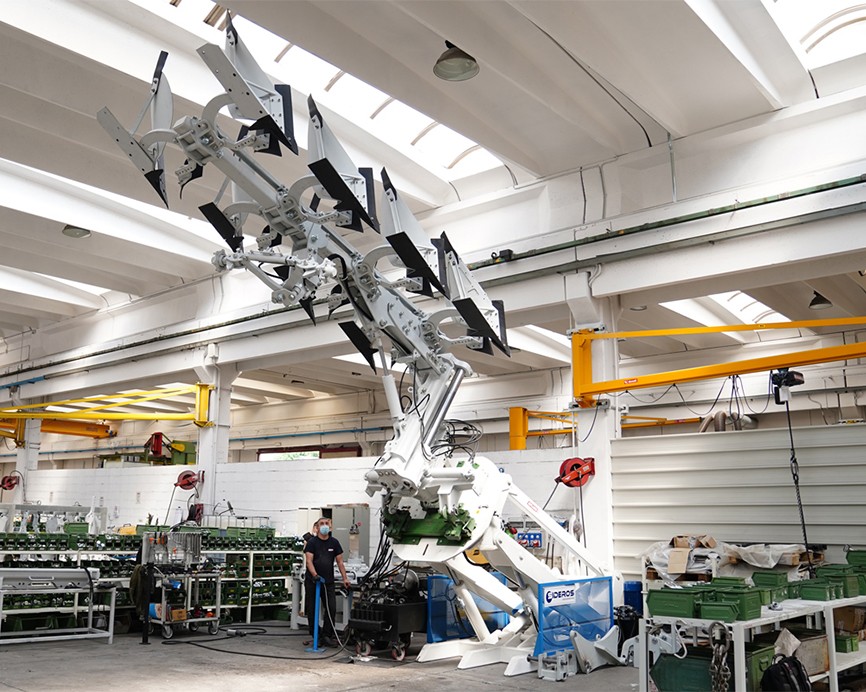

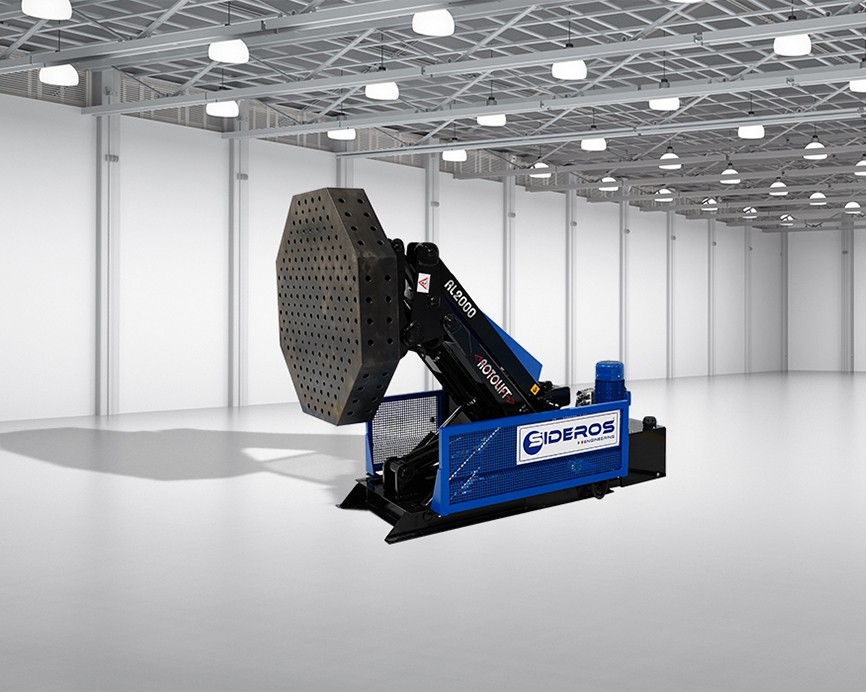

ROTOLIFT is one of the most impressive hydraulic welding and positioners intricately designed for welding and assembly requirements.

Main Features of ROTO LIFTS:

-It reduces the handling time of weldments
-Decreased use of lifting tools
-Much better working environment
-Rotation, lifting and tilting of weldment on a single machine is possible
-Impressive welding quality improvement
-Increased profitability/ROI
-The welding procedure is simplified

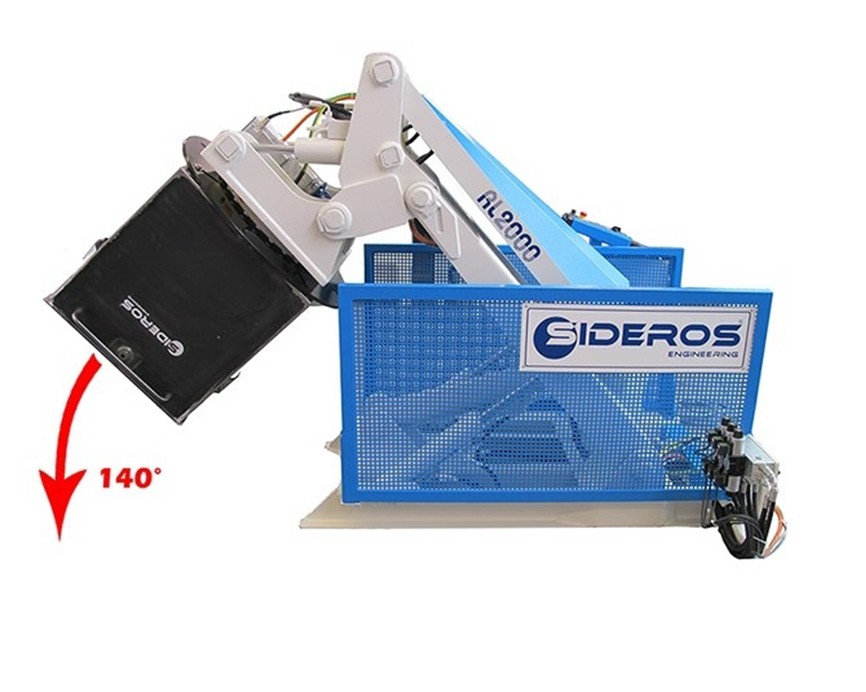

3 axis: Elevation, Rotational, Tilting

HEAD AND TAILSTOCK POSITIONER - THREE AXIS WELDING POSITIONER - ROTOLIFT RL 13000

ELECTRIC WELDING POSITIONERS HEAD AND TAILSTOCK

The head and tailstock positioners are helpful for welding expansive areas for applications in various fields. Thanks to the hydraulic jacks, safety and security when welding is guaranteed; SINCROFIT is known for its compactness and mobility. It features two main axes: Electric 360° left/right rotation and electric elevation/descent. Its usual configuration comprises a motorized headstock positioner and an idler tailstock.

Made to simplify your welding and handling positioners, ROTOFIT is designed with love and care, facilitating smooth assembling and welding operations.

-Enhanced safety
-Superior weld quality
-Cost savings and increased profitability
-Repeatable welding/assembly procedures

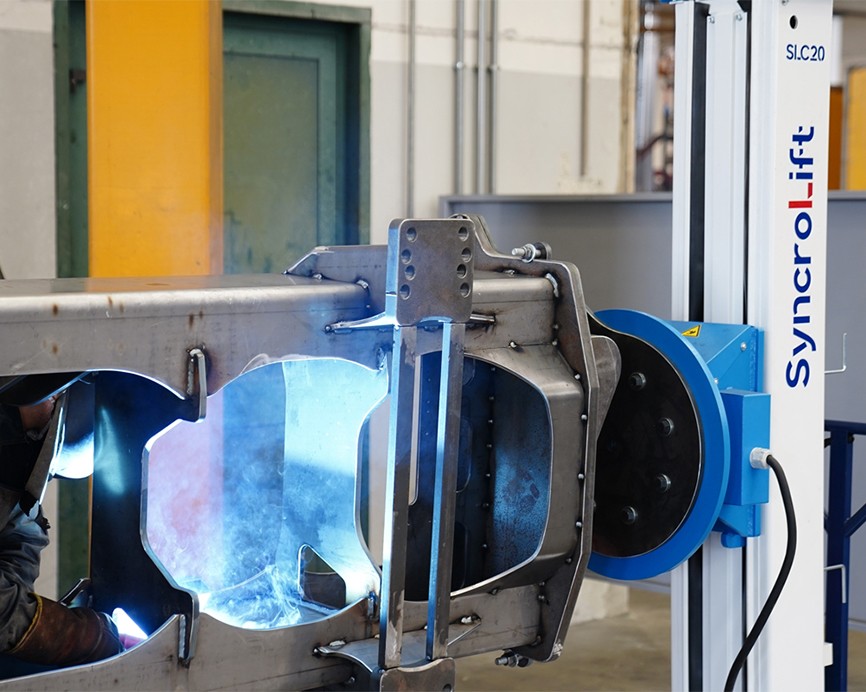

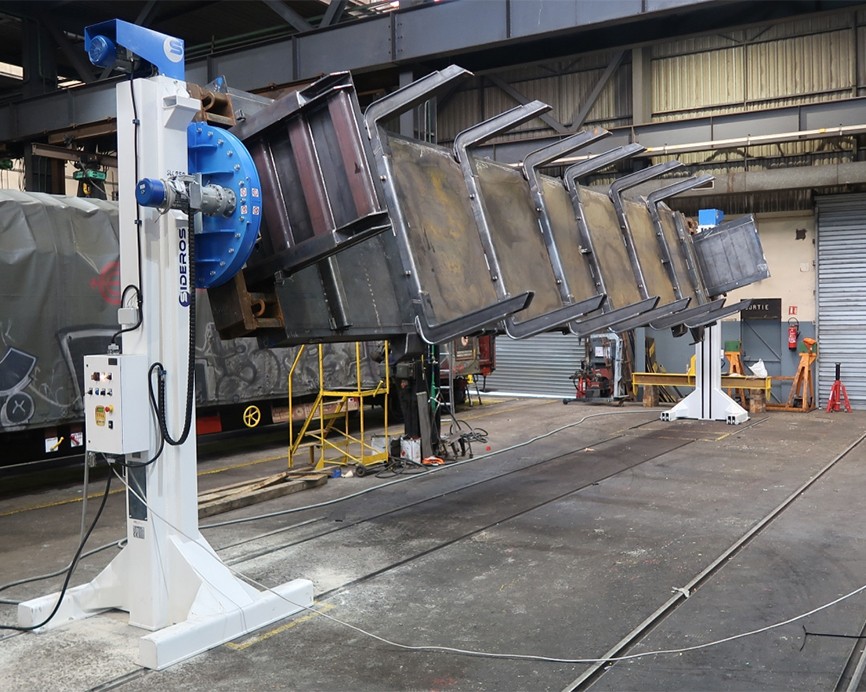

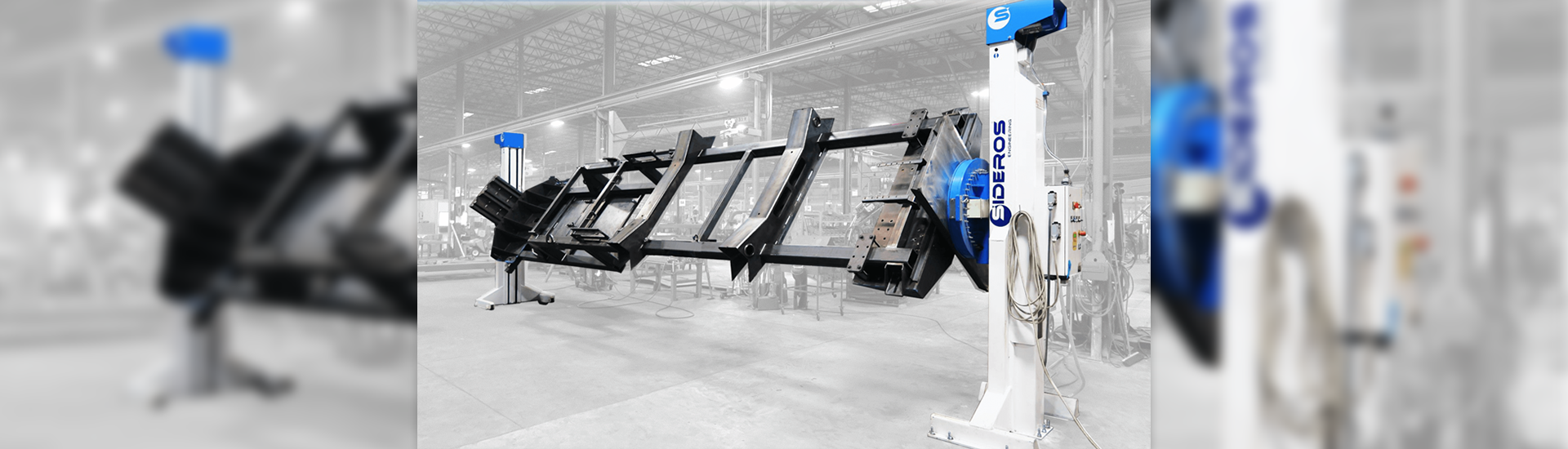

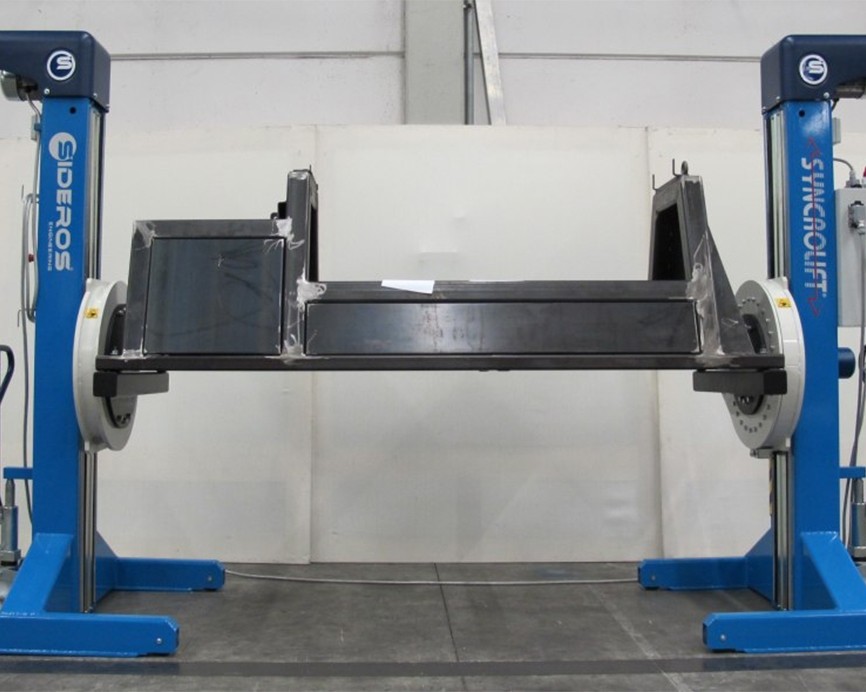

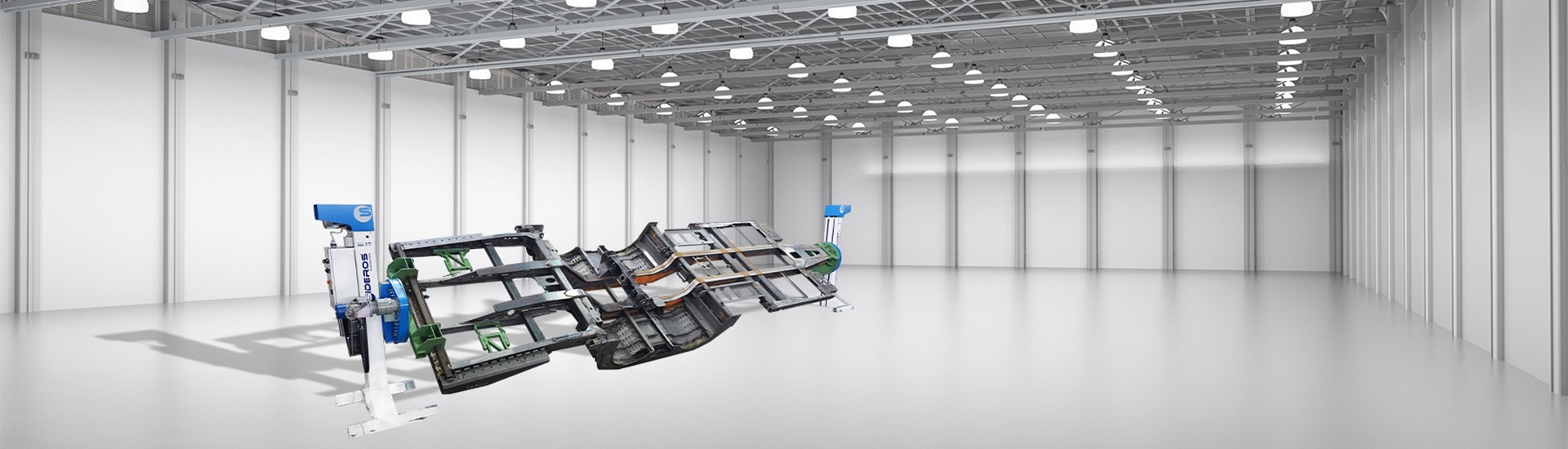

HEAD AND TAILSTOCK POSITIONER - SYNCROLIFT SLC 150

Sideros Head and Tailstock Positioners Italy

Syncrolift - Sideros - Italy [Head and Tailstock Positioners]

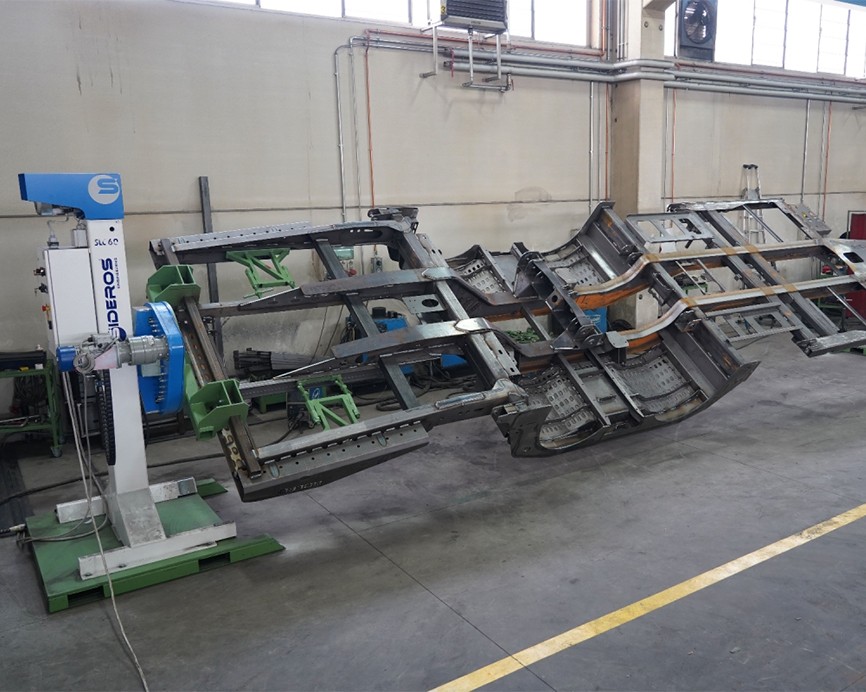

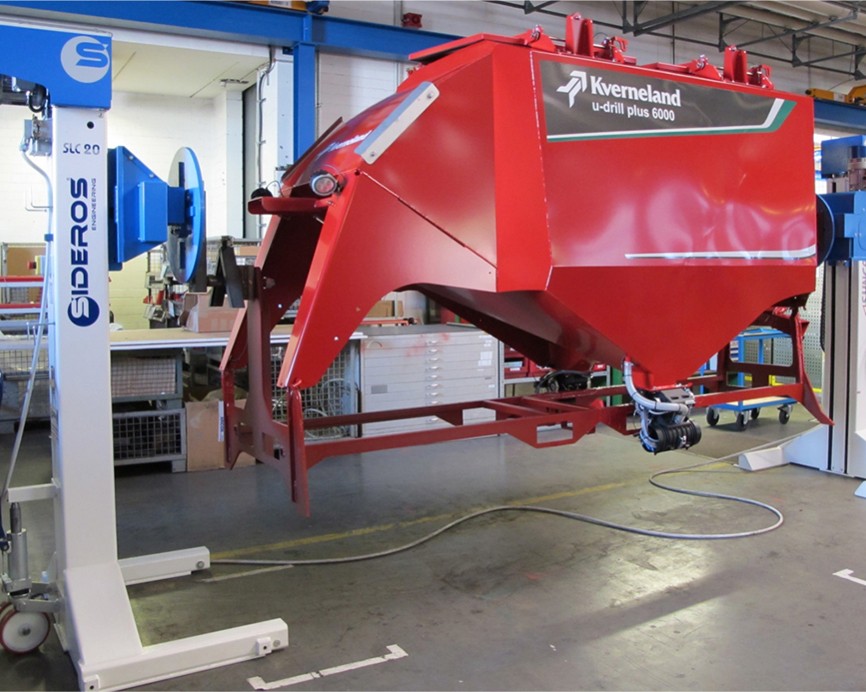

For long assembly and weldments, Sideros Engineering Head & Tailstock positioners are a bang for your buck. The immaculate features of Syncrolift along dedicated hydraulic jacks that are productively compact and mobile. This has led to exceptional flexibility for long-part assembly and welding.

The Syncrolift boasts two primary electrical axes: vertical elevation and descent and 360-degree horizontal rotation.

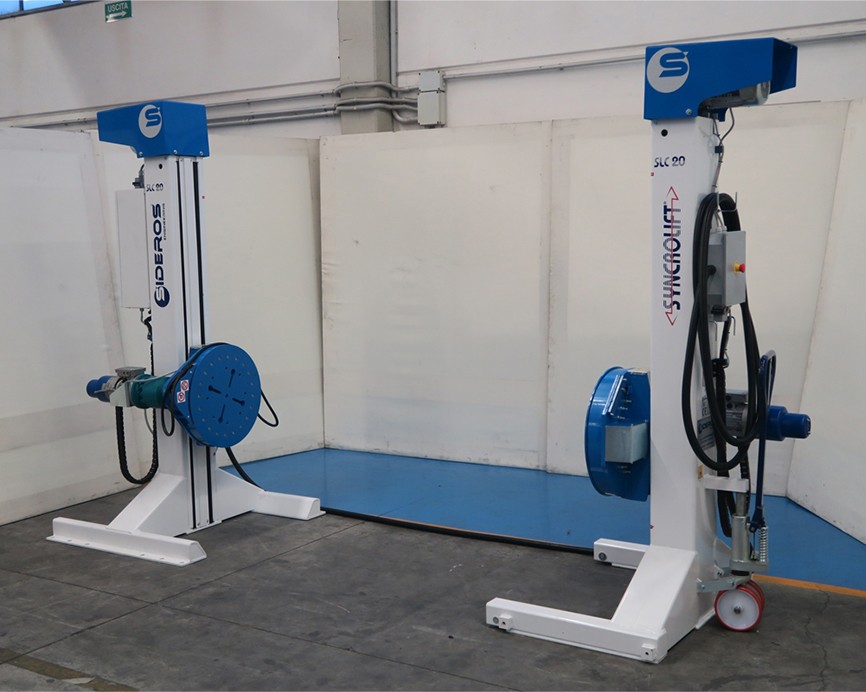

The Syncrolift features a stationary motorized headstock and an adjustable idler tailstock to accommodate various workpiece lengths.

PROS :

-Safety improvements
-Improved ergonomics
-Superior weld quality as it is easy for the operator to position at any level.
-Repeatability of the weld process
-Say goodbye to maintenance thoughts.
-Reduced cost and improved profits

MAIN FEATURES OF THE HEAD AND TAIL  POSITIONERS

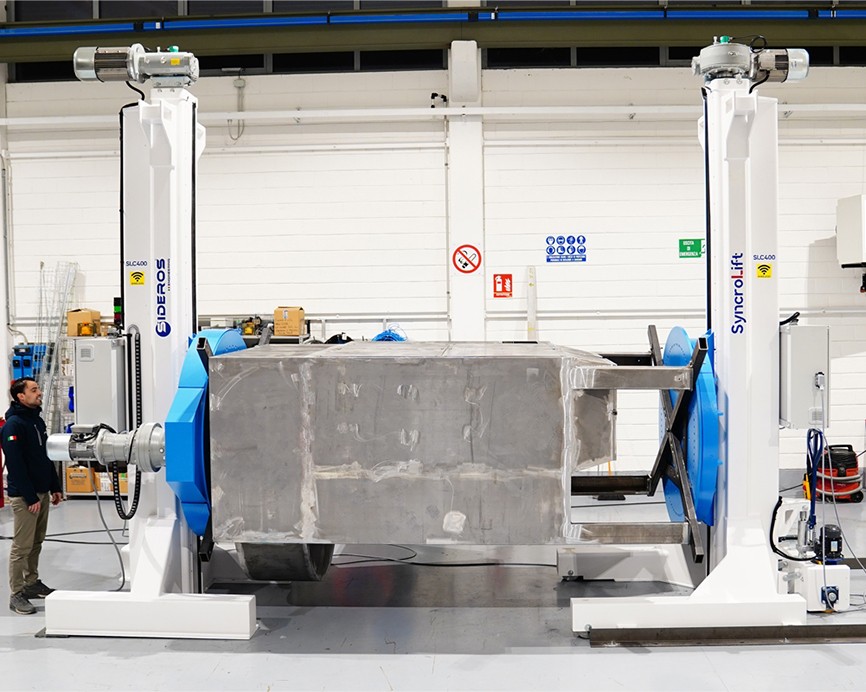

-An impressive state-of-the-art anti-collision system
-Automatic height adjustment of the column
-Extremely useful for welding and assembly operations
-Save time by 70%

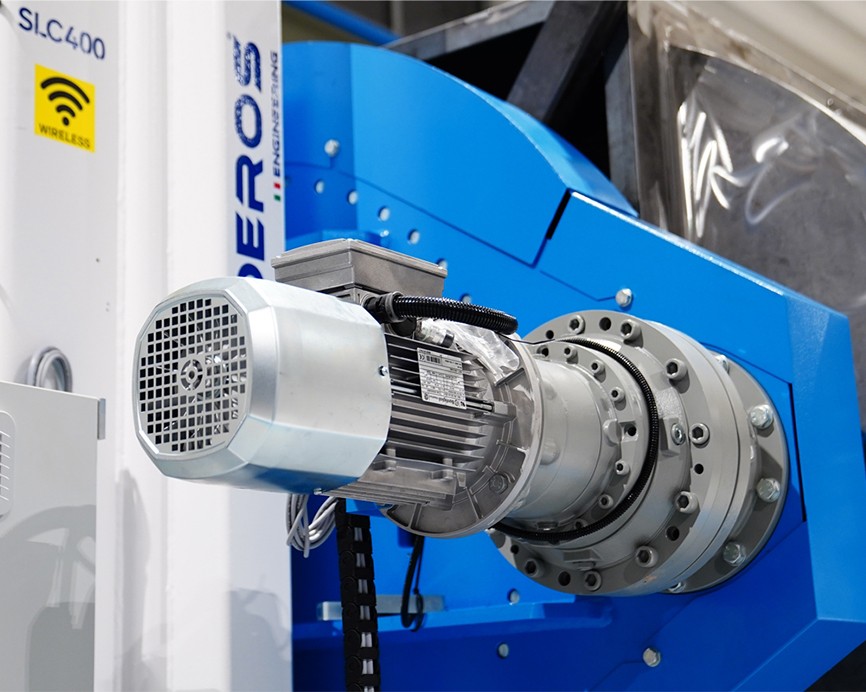

-Speed-controlled lifting, tilting and rotation
-Catchy and combat design

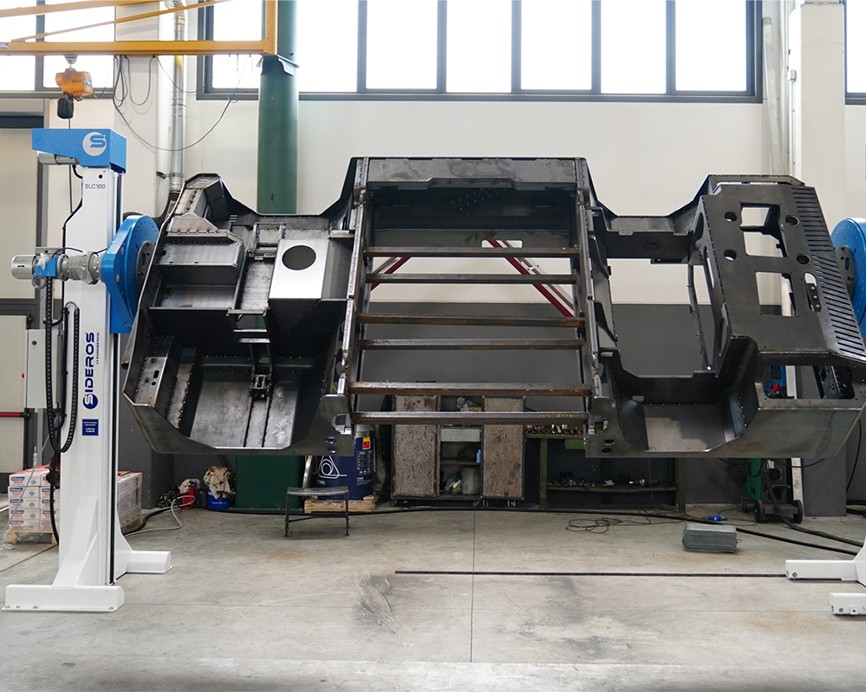

-The hydraulic jack helps to move the transparent Slave  column

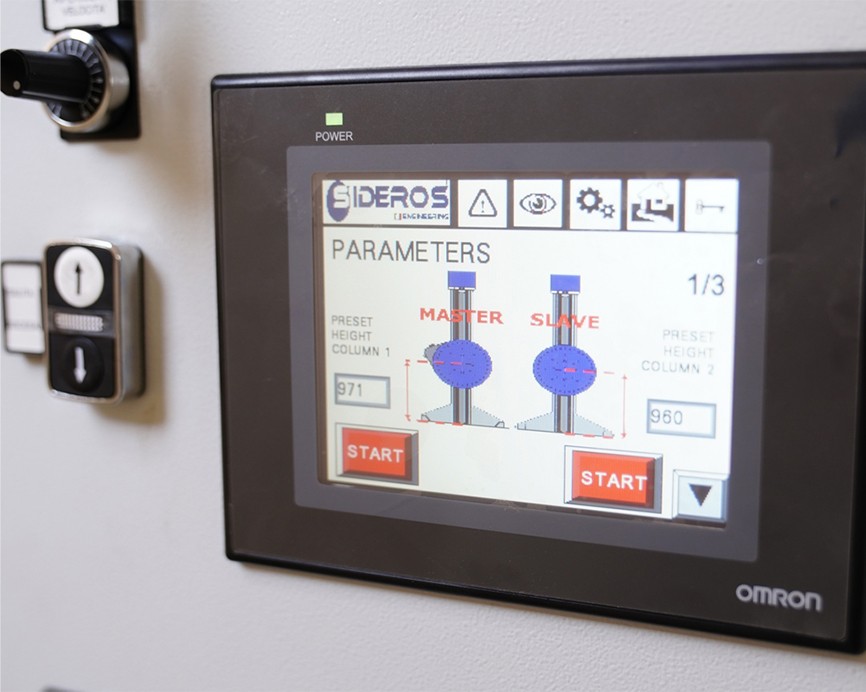

-Touch screen HMI user user-friendly to ease the management and operation of the machine

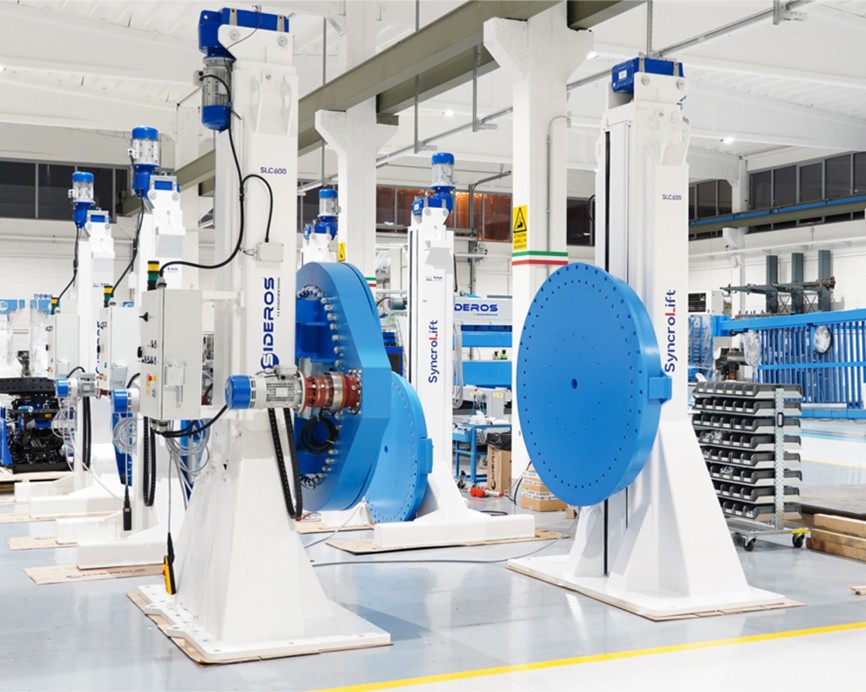

-SLC400: Customizable Height, Up to 4 Meters
-Integrated creeping Ground for Welding Flexibility
-Sturdy Column Connection
-Column designed with rigorous testing and structural safety
-Enhanced Torque and Rigidity with Motorized Master-Slave Column Configuration

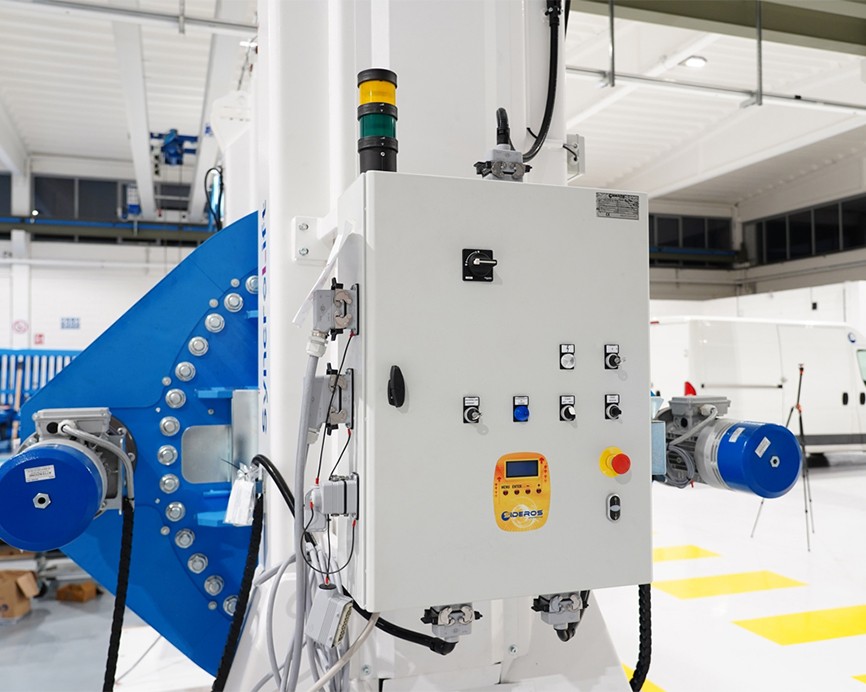

Voltage Options:

-CE: 400V - 50/60Hz
-UL: 480V - 60Hz
-CSA: 600V - 60Hz

Distinct Types of Welding Positioners:

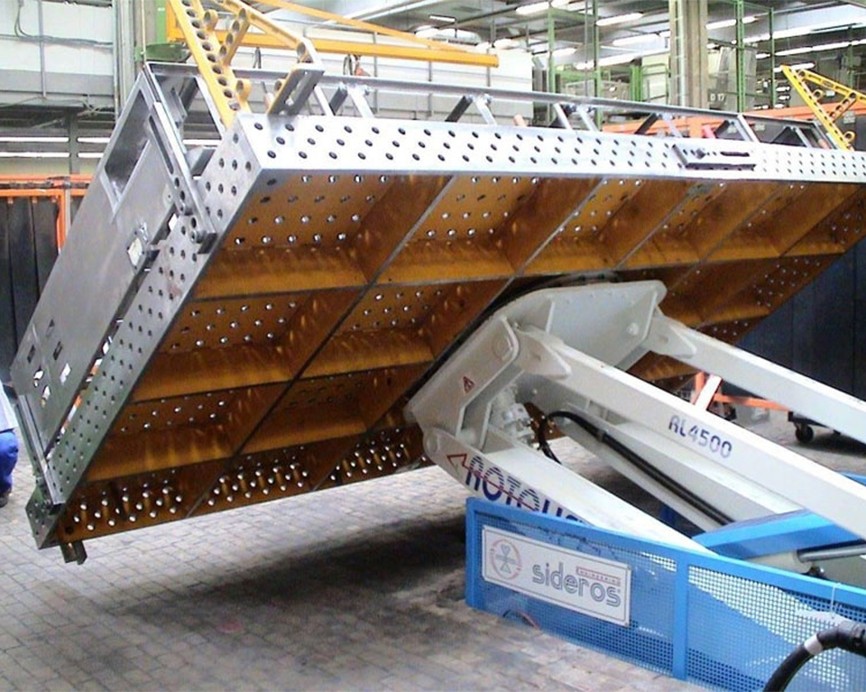

3 Axis Welding Positioners

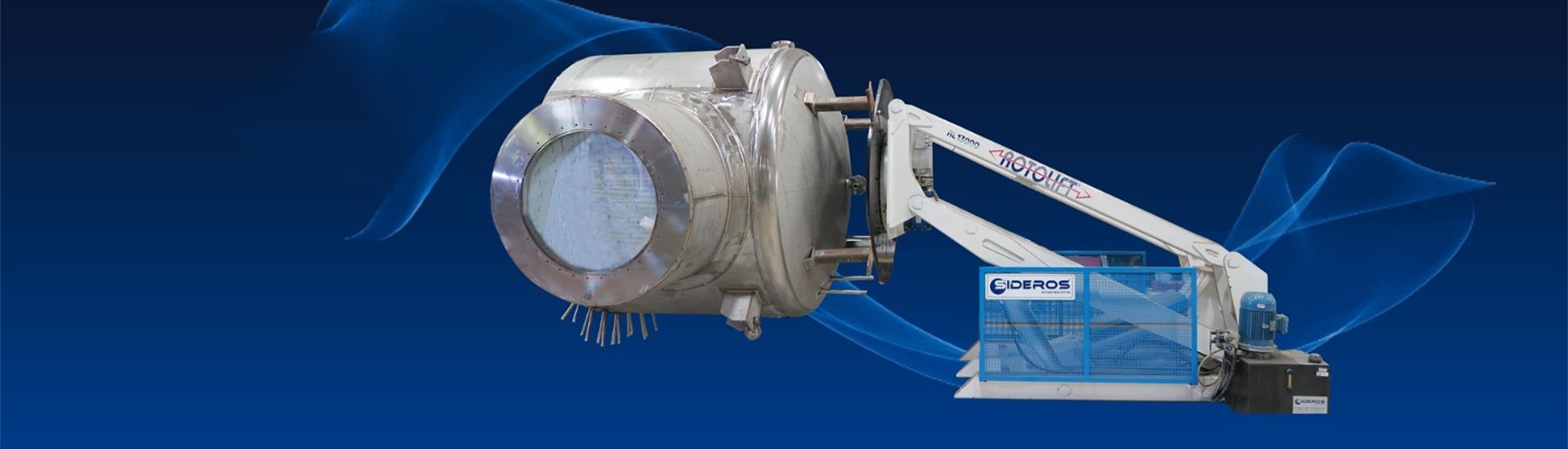

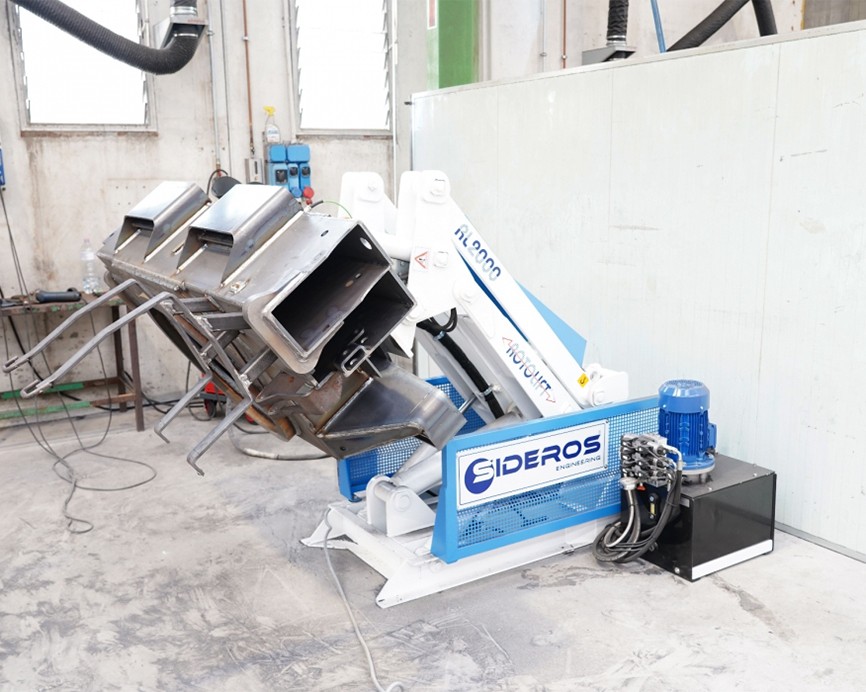

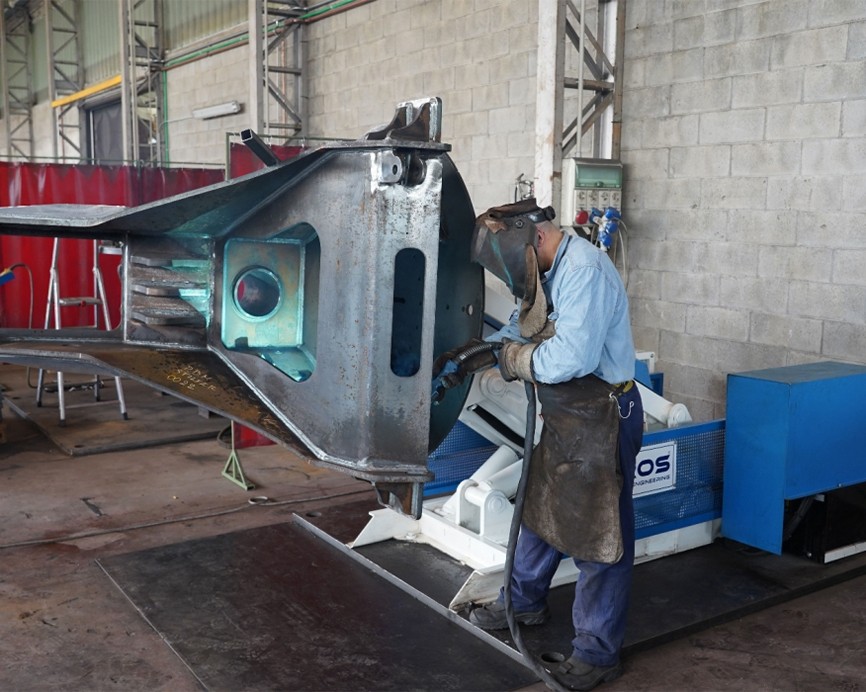

Rotolift is a versatile 3 - axis welding manipulator and positioner that significantly improves safety and usability by minimizing the manual handling of workpieces and by not compromising lifting angles. It comes with innovative features such as tilting, lifting and rotation of the workpiece.

These include:

-Head and Tailstock Positioners

-Cradle Positioners

-Skyhook Positioners

-Single Column Positioners

-Welding Universal Balance Positioners

-Scissor Lifting Tables.

100 Ton loading capacity positioners

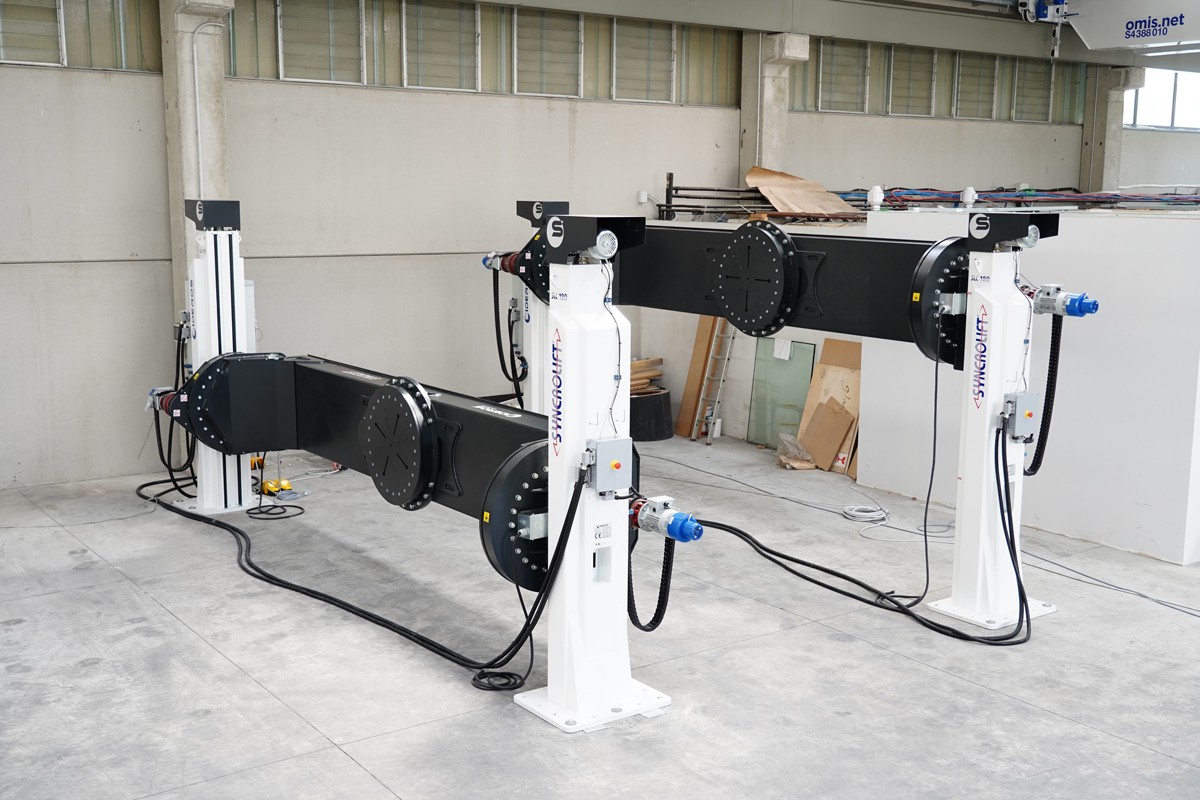

Cradle Positioners

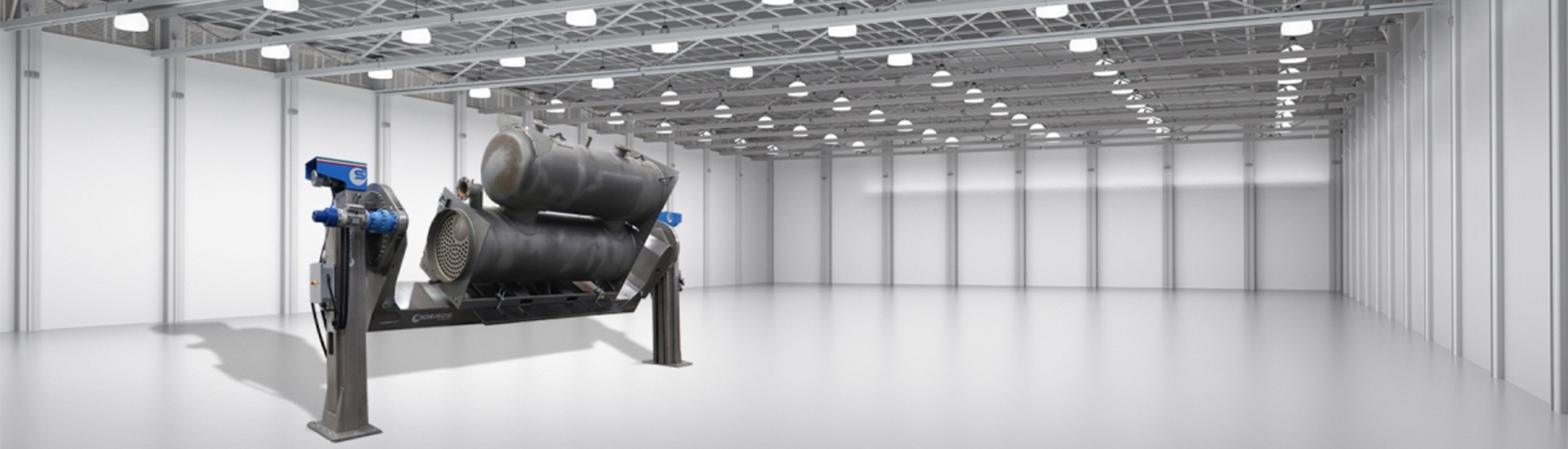

The Syncrolift Cradle Positioner features a robust design with two fixed columns and a rotating cradle, and it is equipped with a motorized rotary plate for easy workpiece loading. This positioner offers four essential movements: vertical lifting, lowering, tilting, and 360-degree rotation.

Skyhook Positioners

The L-Type positioner is designed for optimum welding and assembly processes, offering a 180-degree workpiece rotation capability. With a fixed column and rotating arm, this positioner enables seamless upward, downward, tilting, and 360-degree rotational movements.

Customization Options:
-Adjustable height
-Variable arm length
-Load capacities up to 10,000 kg
Tailor the L-Type positioner to meet your specific needs and maximize efficiency.
