Beam Coping

BEAMCUT is an impressive platform that combines vision systems, a plasma torch, and a six-axis CNC cell to put out top-of-the-line velocity and accuracy that provide a full-face operation that is available for a fit and finish cut of beams and different kinds of metal profiles used for structural steel and other industries. Beam Cut is a versatile and easy-to-use high-quality robotic beam-cutting machine, a coping machine, to cut beams, channels, and angles, which can easily cut plates and pipes. These tasks used to take hours, but now they take no longer!! Do it in seconds, they say. With the same number of employees, it's guaranteed to increase production to a whopping 80%. So, what separates BEAMCUT from the rest of the bunch? The answer is as simple as a day - “do the job of 7 by 1”.


FEATURES

-Angle Line
-Drill Line
-Band saw
-Coping torch station
-Plate cutting table
-Pipe Cutter
-Layout Marking Station


FEATURES:

PHOTO LASER MEASURING DRIVE

These custom-made photo-laser measuring devices are distinct to the industry, and they allow automatic and rapid profiling as well as positioning, which has been proven to provide the best possible cut.

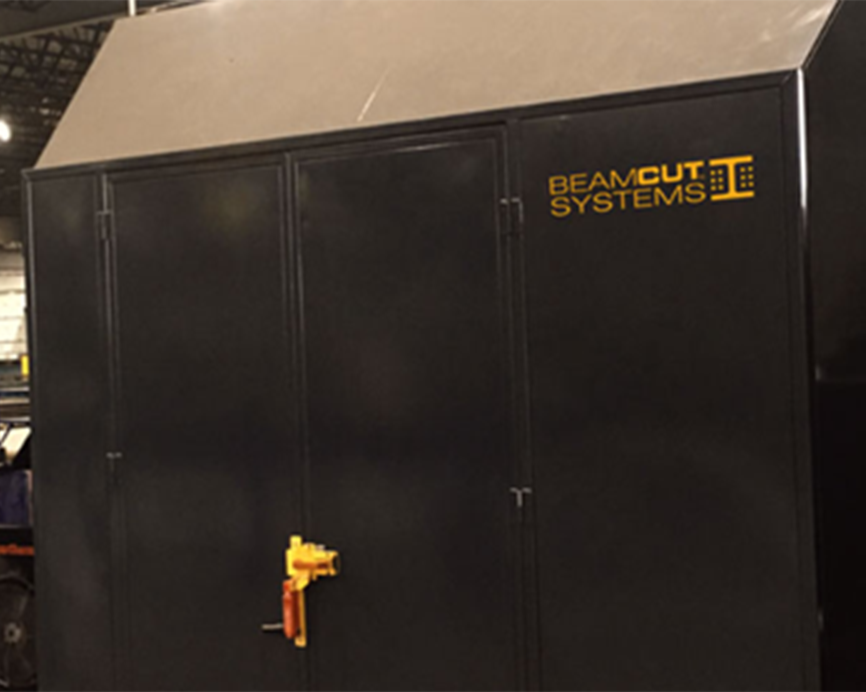

SMOKE TRAP & SAFETY CABINET

The state-of-the-art safety enclosure/cabinet outlines the area reserved for robotic cutting and the circulation area around the system. If the machine is opened during operation, the safety latch work envelope doors are excellent safety measures to shut down the machine.

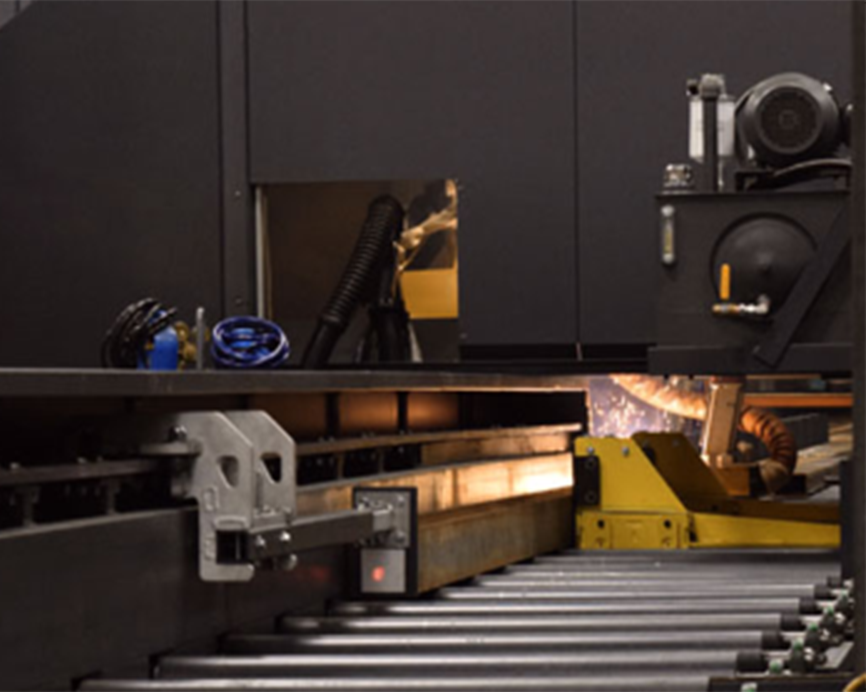

MOBILE MEASURING UNIT

The mobile measuring helps keep in check streamlined monitoring of all piece lengths by going along the infeed conveyor that follows the piece. The distinct design makes way for doubled accuracy compared to other measuring devices.

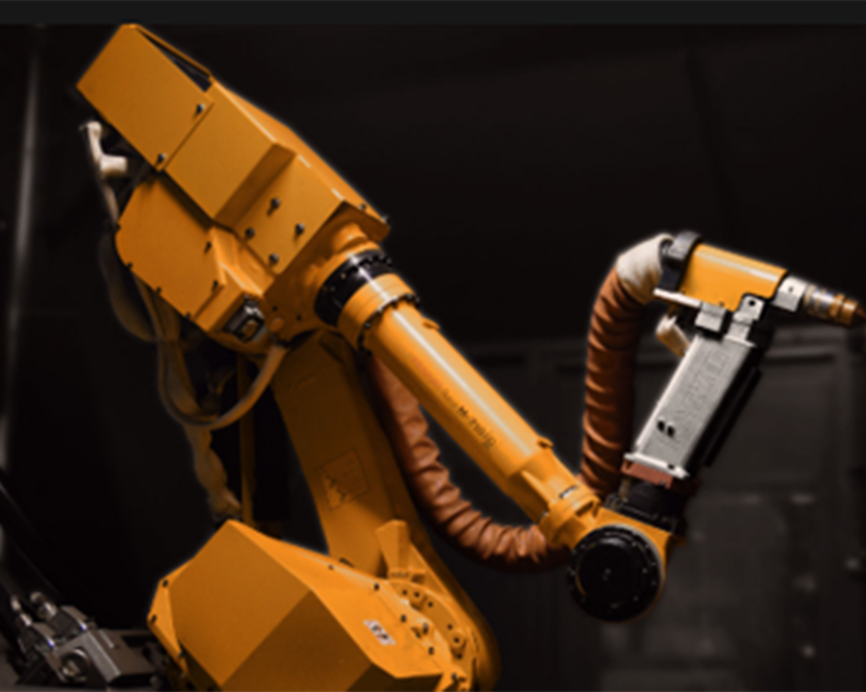

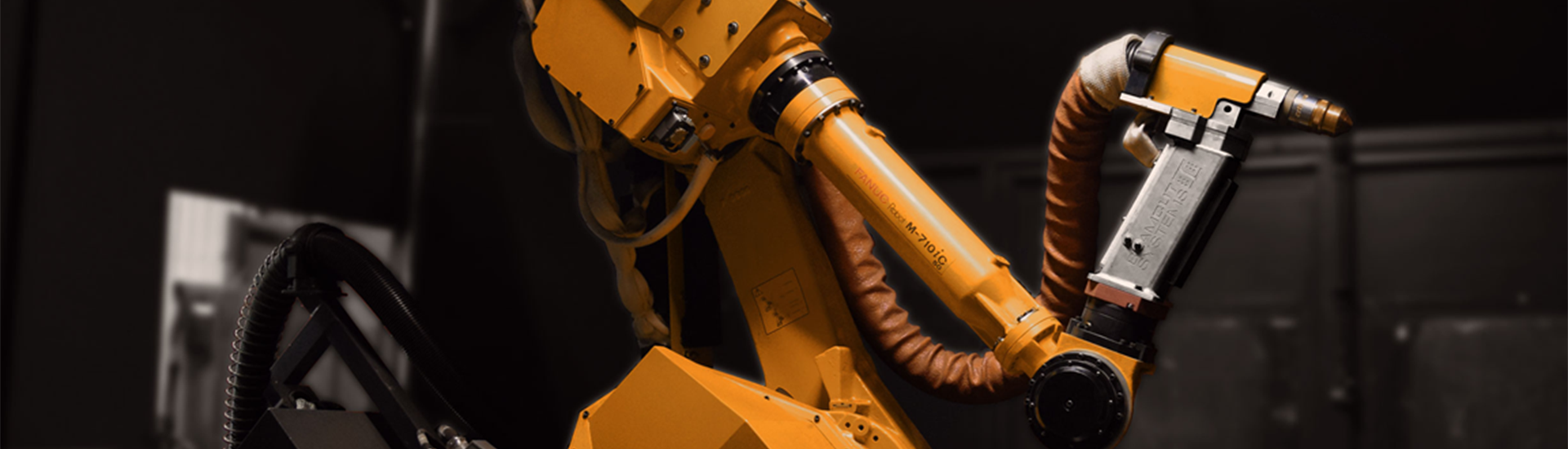

FANUC6 - AXIS ROBOTIC ARM

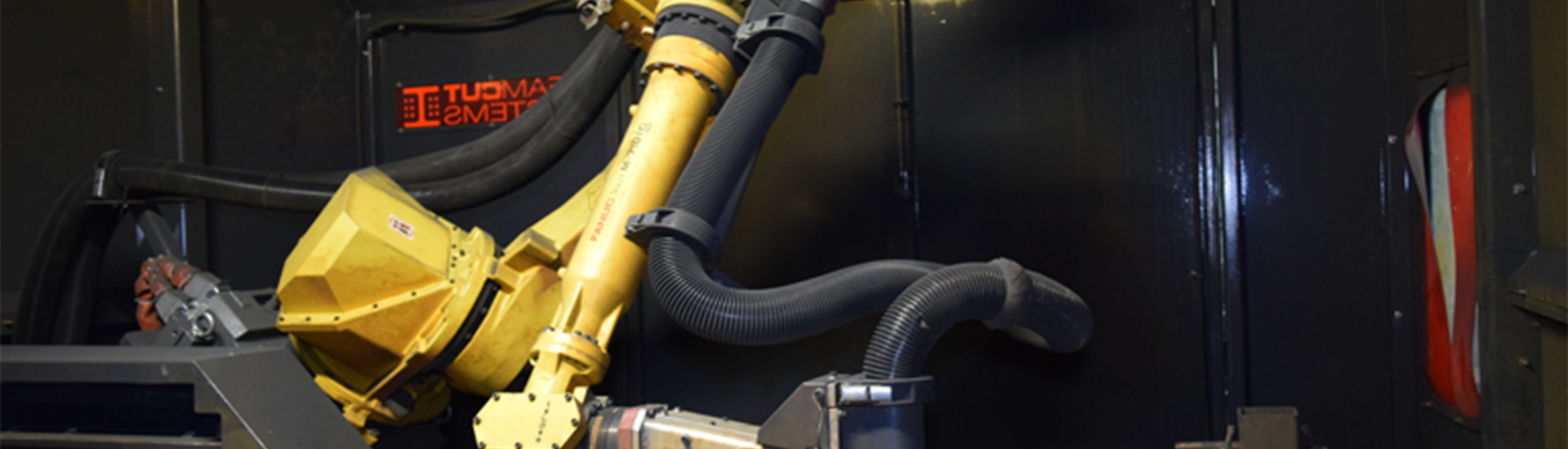

The 6-axis Fanuc arm eliminates even the tiniest of motion sways and all cutting vibration. It's proven to be 4x more powerful than all its market counterparts; this is a robust and agile tool that facilitates a rapid and much better accurate cut.


BEAM CUT TRAJECTORY SOFTWARE

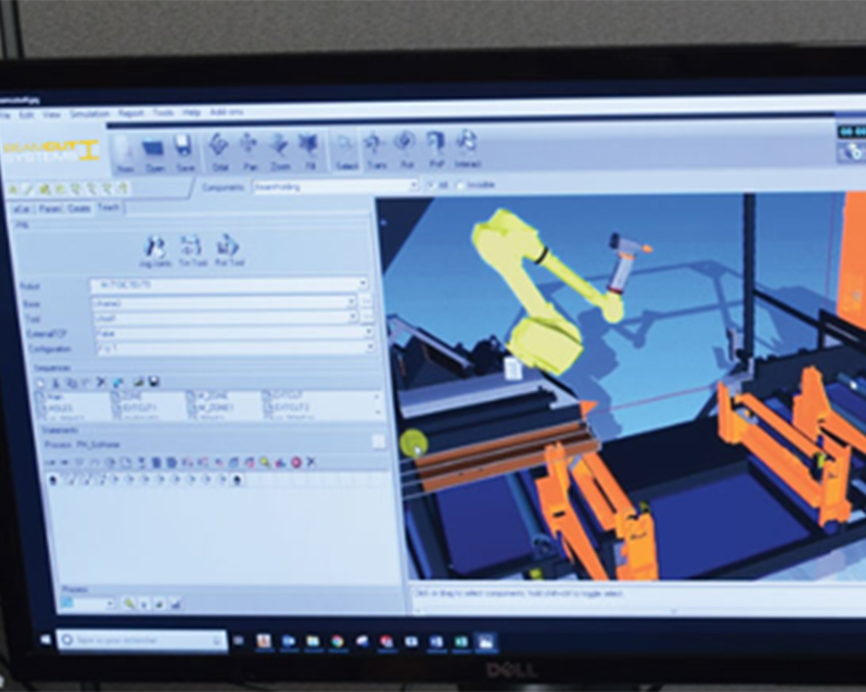

We proudly present our proprietary software to program the robotic trajectories - Beamcut Software. It runs with the help of DSTV files from a 3D profiling software as well as a 2D DXF Autocad file and ensures a productive and hassle-free workflow. The cutting is simulated easily once the files are imported into the software.


HYDRAULIC UNIT

Beamcut’s hydraulic clamps help correct the positioning of pieces in the infeed conveyor and precisely hold and place round profiles by avoiding any rotational movement when the machine is at work.

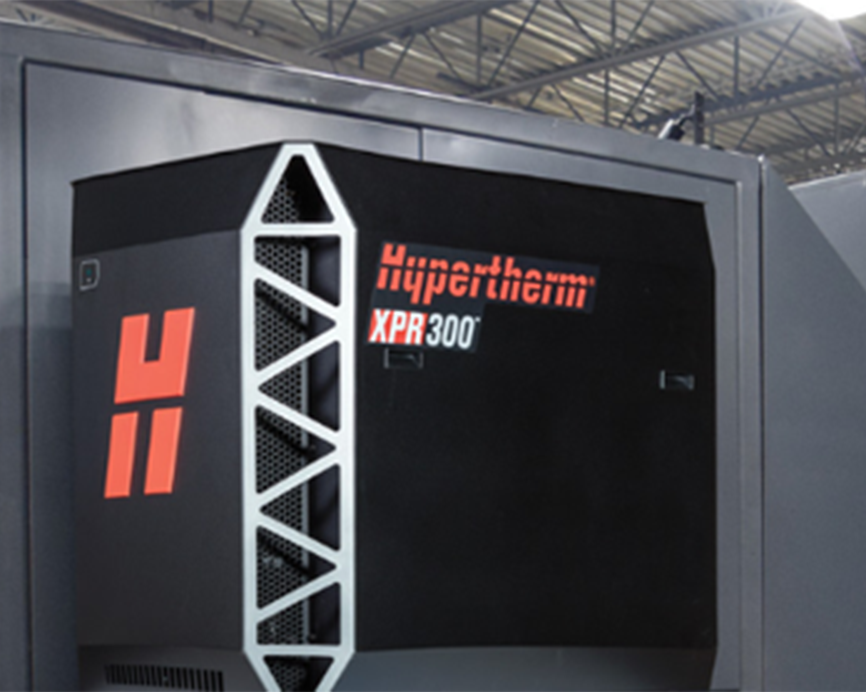

HYPERTHERM XPR 300 PLASMA

Hypertherm's plasma systems are engineered for peak efficiency and productivity in x-y cutting, chamfering, and robotic applications.

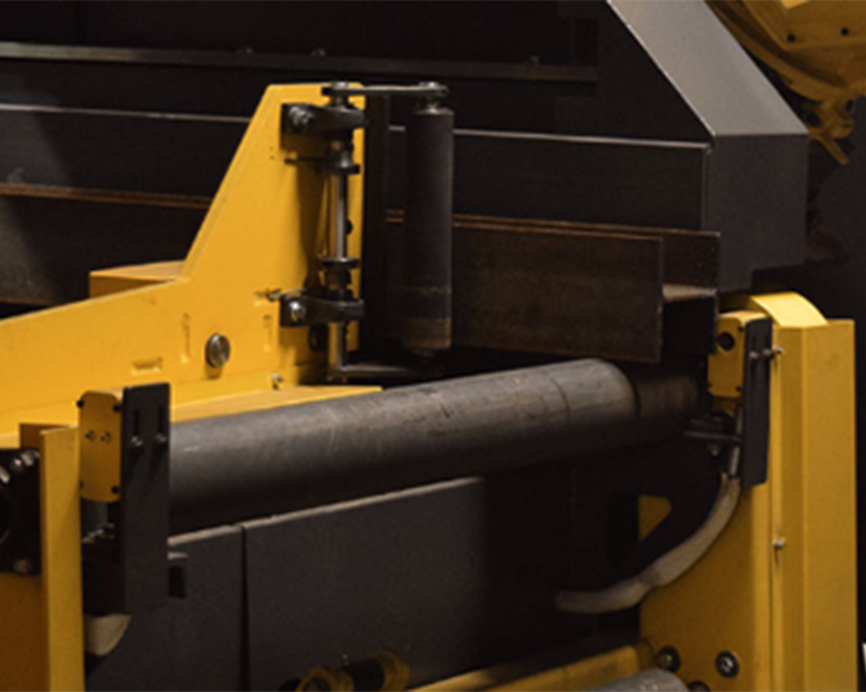

OUTFEED AND INFEED CONVEYORS

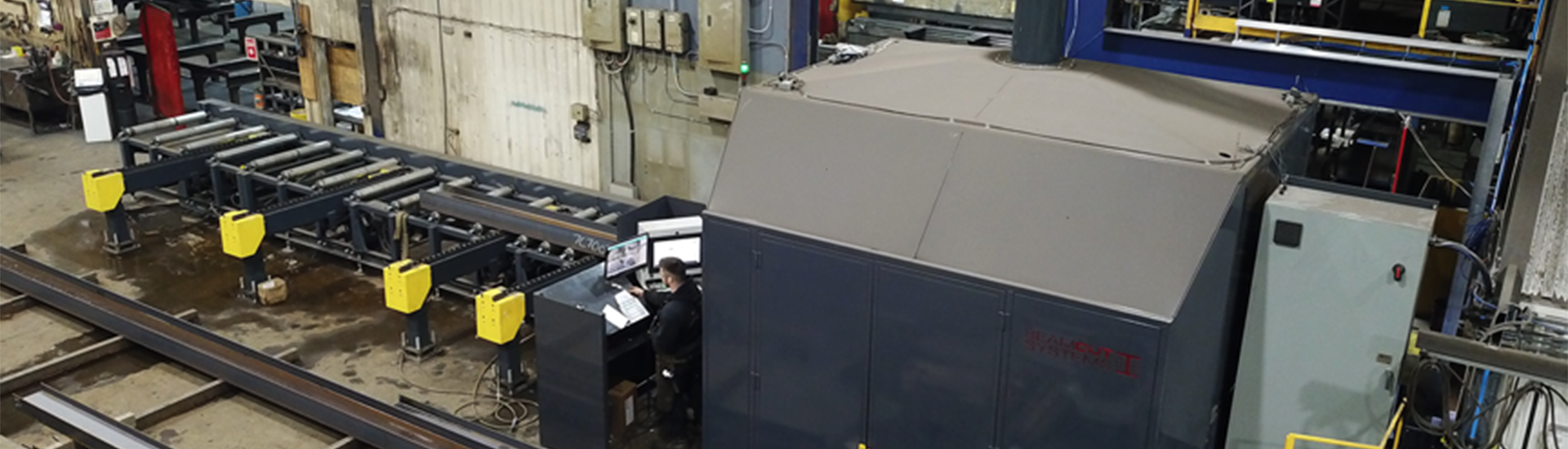

An accurate and quick positioning of components/materials is ensured by the outfeed and infeed conveyors, which are Constructed with robust 4-inch rollers mounted on pillow blocks within a sturdy welded frame.

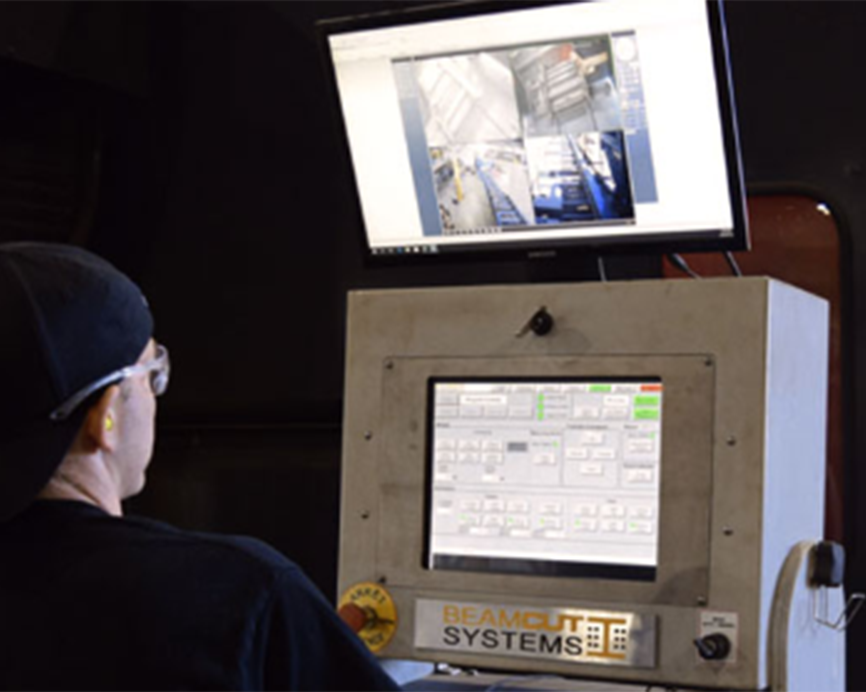

OPERATOR CONTROLLED SYSTEM

These offer the top-notch Windows-based operating systems available on the market. The state-of-the-art operator control system has a touch screen for easy access and power use.

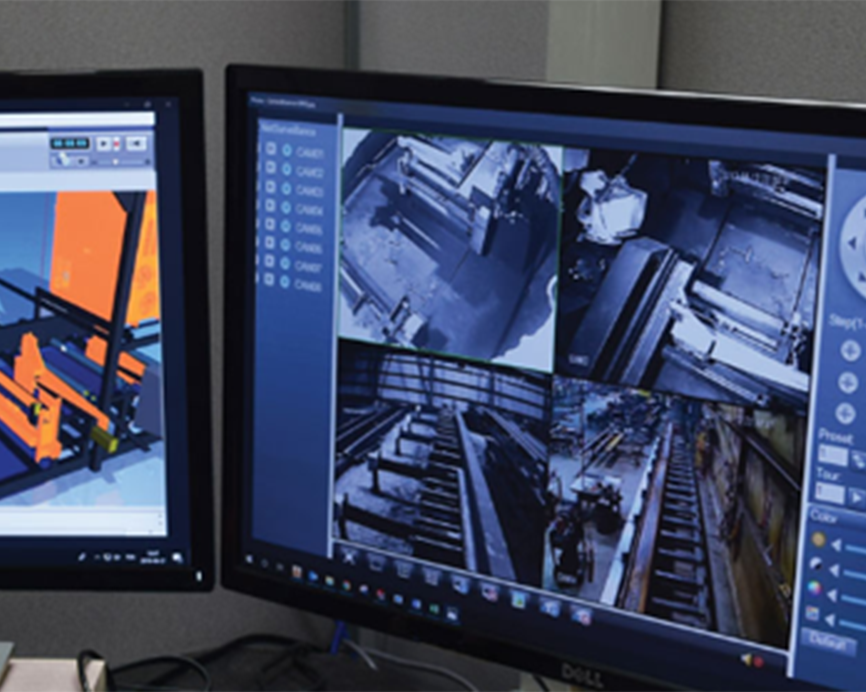

REMOTE REAL-TIME MONITORING

The Beamcut features four strategically placed cameras that provide a comprehensive view of your production activities, even remotely. You can access these live feeds via the internet to stay connected and informed, no matter where you are.

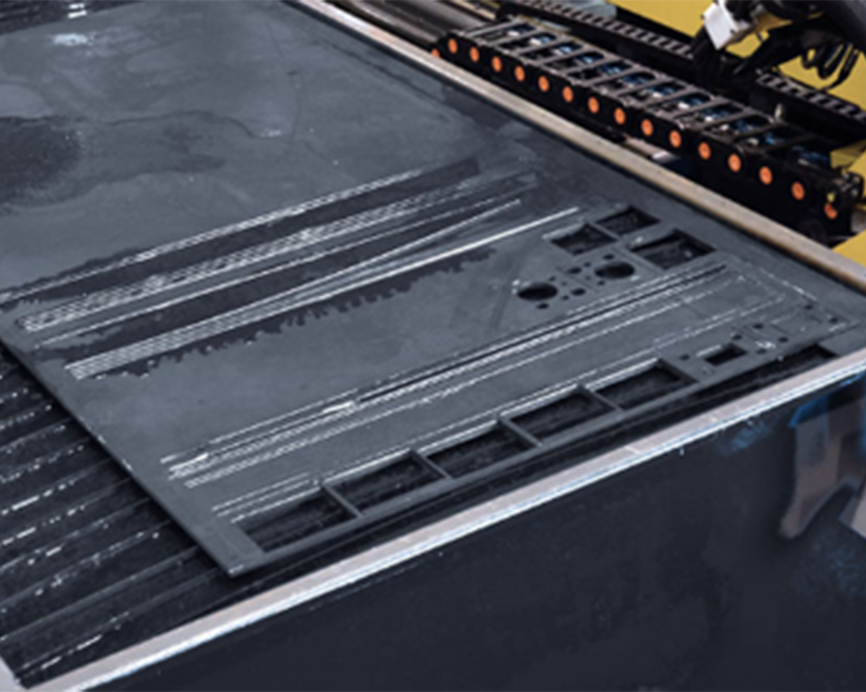

SHEET - CUTTING WATER TABLE

Quickly expand the capabilities of your Beamcut Structural with an optional cutting table for efficient sheet processing. This integration allows for great workflow, as you can load pieces onto the conveyor while simultaneously utilizing your robot to cut tasks on the table. Use the provided essential nesting software and robot mount for an excellent workflow.


ROUND TUBE CUTTER

It simplifies the cutting process of round tubes on Beamcut because it prevents round tubes from rotating when being cut.
