OMAX Waterjet Cutting Machines
Waterjet cutting is the process of cutting of a variety of materials using high-pressure jets of water mixed with an abrasive substance. OMAX introduces advanced waterjet cutting machines which guarantees precise and effective cutting of materials. It involves the following steps:
High-Pressure Water Generation
-Using a high-pressure pump, the water is pressurized to extremely high levels, typically ranging from 30000 to 90000 pounds per square inch(psi).
Abrasive Mixing
-Fine granular abrasive materials ( such as garnet) are mixed with the high-pressure water stream. The presence of the abrasive substance catalyses the cutting process, thereby improving the precision.

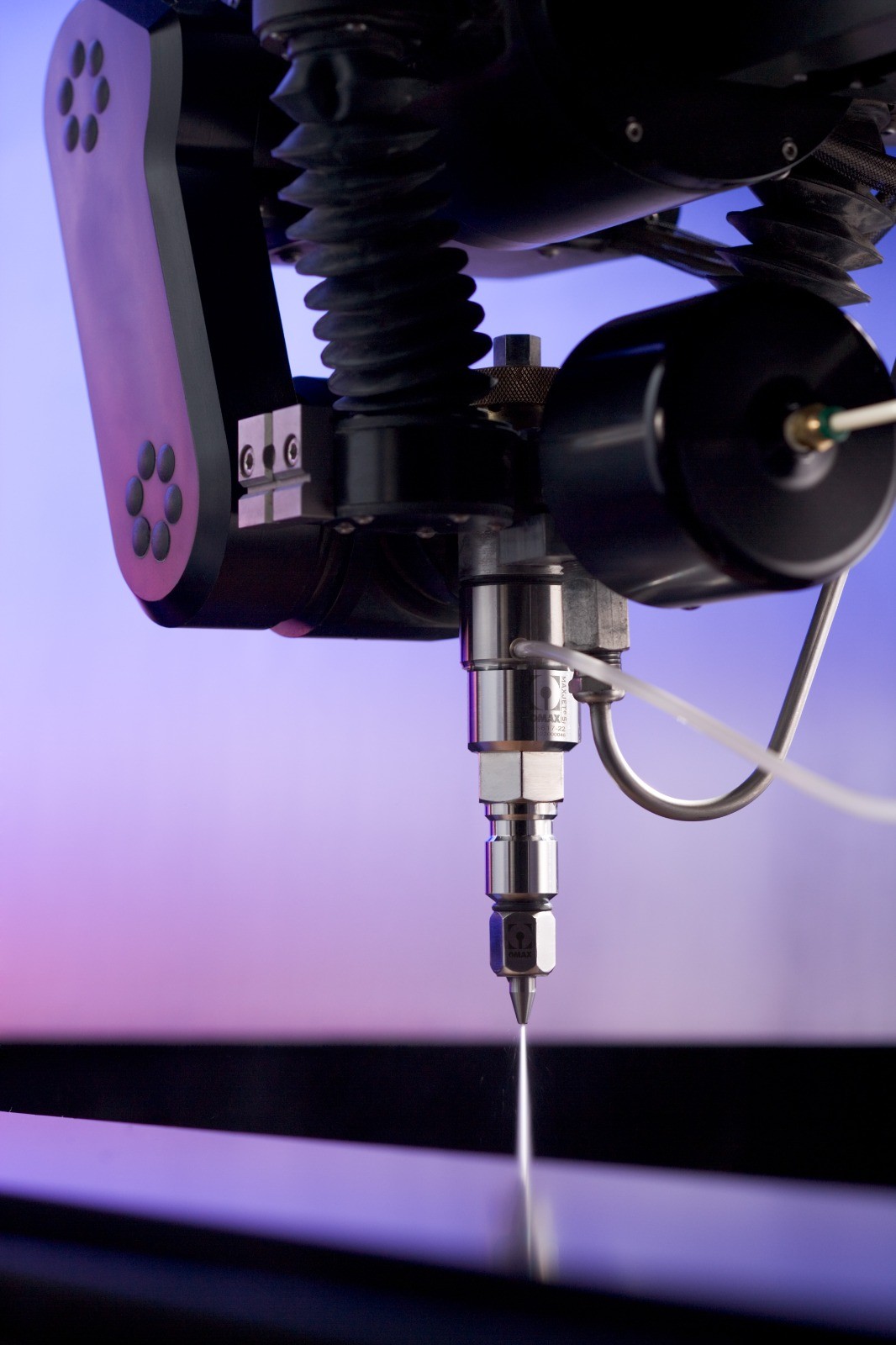

Nozzle and Focus Tube

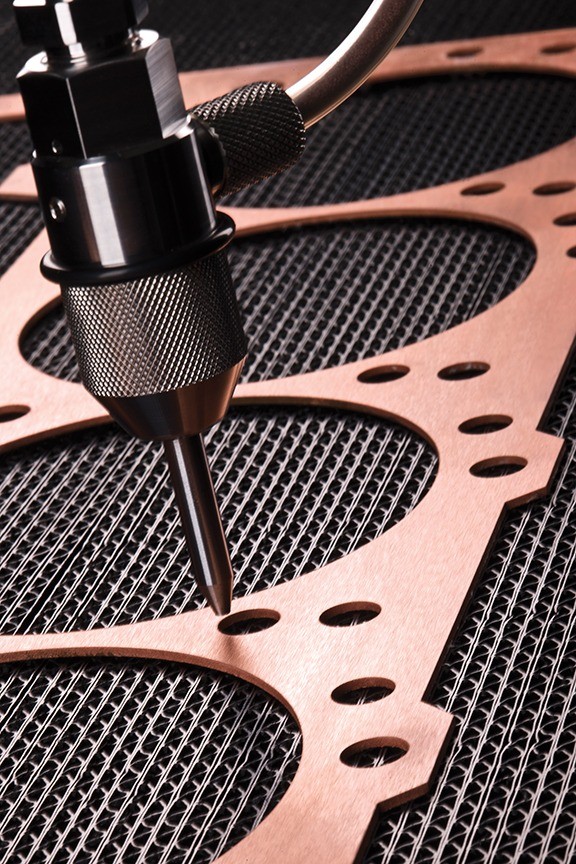

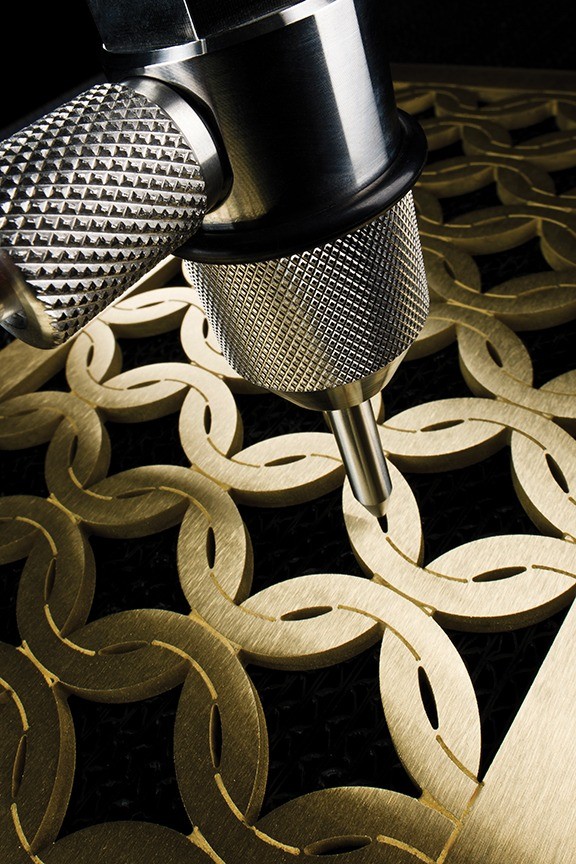

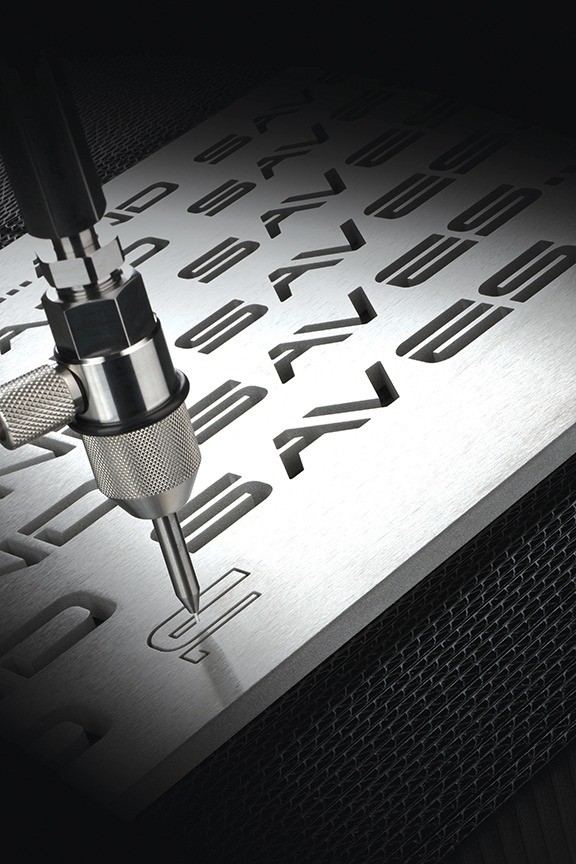

The pressurized water mixed with the abrasive substance is then passed through a small jewel aperture in a nozzle, which focuses the jet to a powerful stream. This nozzle directs the jet to the material to be cut.

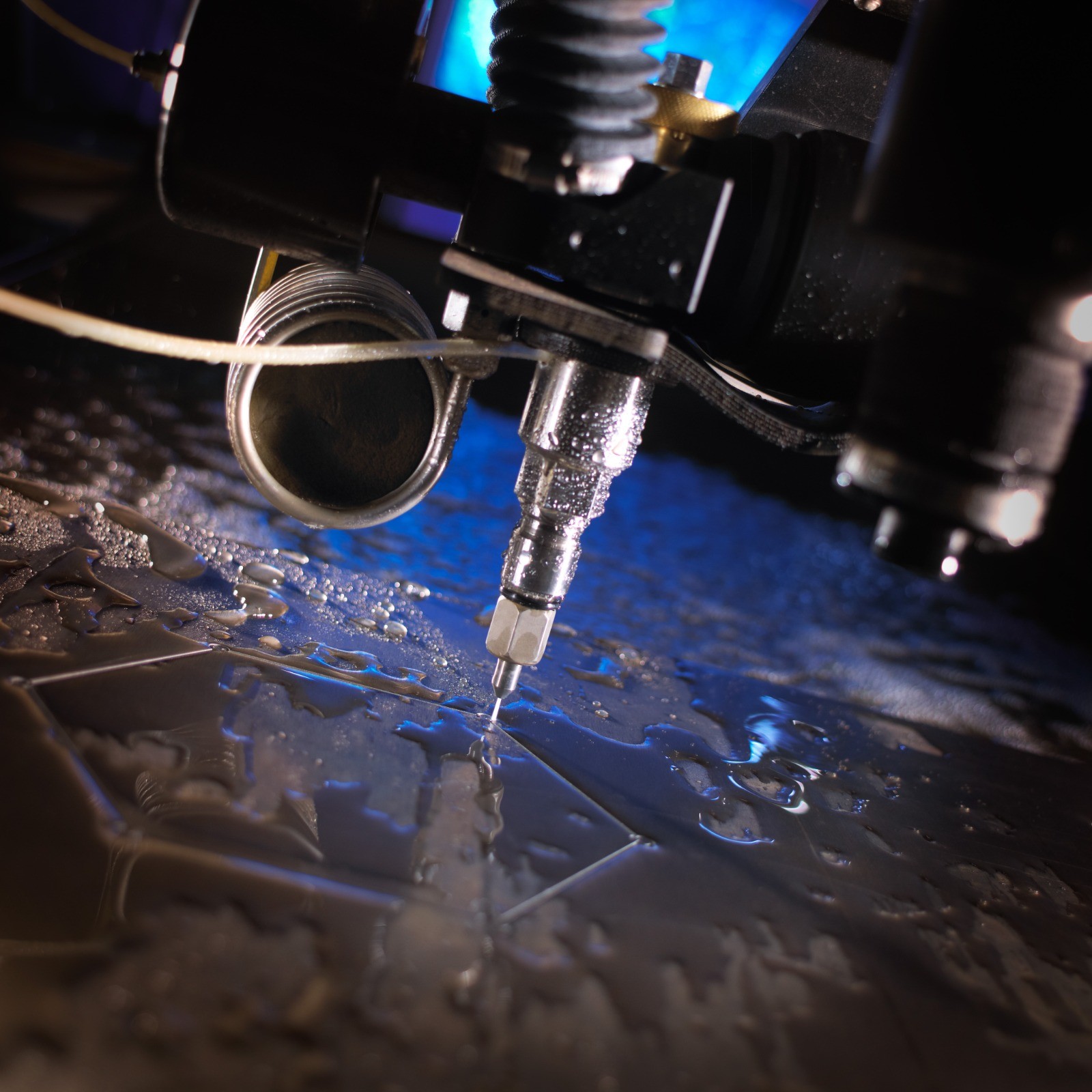

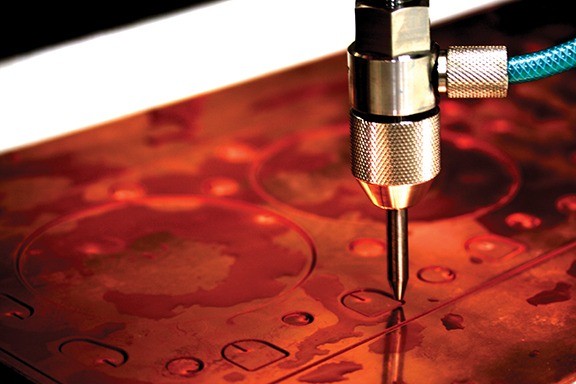

Cutting Process
The focused stream of water and the abrasive substance together erodes the material by cutting through it as it passes through it. The speed and movement of the nozzle are controlled by CNC/ Computer Numerical Control, which is based on a pre-programmed design.
-The state-of-the-art machines developed by OMAX can cut detailed and intricate shapes and patterns, without creating any heat affected zone and mechanical stress. These CNC waterjet cutting machines are capable of handling materials from metal and composites to glass and stone with ease, ensuring superior cutting quality and operation.
-Part of the HYPERTHERM ASSOCIATES, OMAX have secured patents for their various innovative features. They also have a strong market presence in 65 countries across the globe.
OMAX Innovations
Direct Drive Pumps
OMAX has manufactured direct drive pimps which are an asset to the cutting industry. As it does not require hydraulic oil, the maintenance can be conducted with ease as there will be no need for costly chemical disposal.
Compared to other types of waterjet cutting machines, direct-drive pumps consume less power. Featuring the same configuration as other types of waterjet pumps in pressure and motor horsepower, OMAX’s waterjet cutting machines deliver increased cutting speed, thereby maximizing output and minimizing production cost.
They have various models such as :
EnduroMax
This unique model’s maintenance cycle starts only after 1000 hours of operation. It is designed to be both simple and sturdy ensuring durability and reliability. It features an independent cylinder that effectively simplifies the maintenance process. Available in 100,50,40 and 30 HP.
MAXIEM
Designed specifically for the MAXIEM line of waterjets, the pump has three cylinders whose movements are coordinated to provide a smooth high pressure output flow. It is available in 40, 30 and 20 HP options.
Global MAX
A simplified direct drive pump, specifically designed to pair with the Global MAX waterjet line. It is available in 30,20 and 10 HP options. In addition to that they have DynaMax Intensifier Pumps as an option.
INTELLIMAX SOFTWARE BY OMAX
The OMAX IntelliMAX software suite combines its exceptional power and performance with user-friendly functioning. Its characteristics include Operational monitoring, programmable controlled machining, and sophisticated nesting, which helps to increase uptime as well as boost flexibility and material utilization.
It also utilizes Dynamic Waterjet technology uniform edge throughout, and IntelliMAX Software Suite for flawless CAD/CAM integration, thereby enhancing operational control and quality.
ACCESSORIES

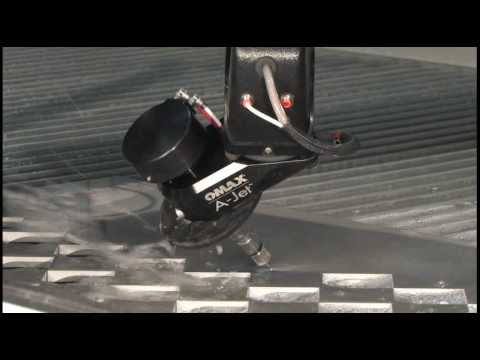

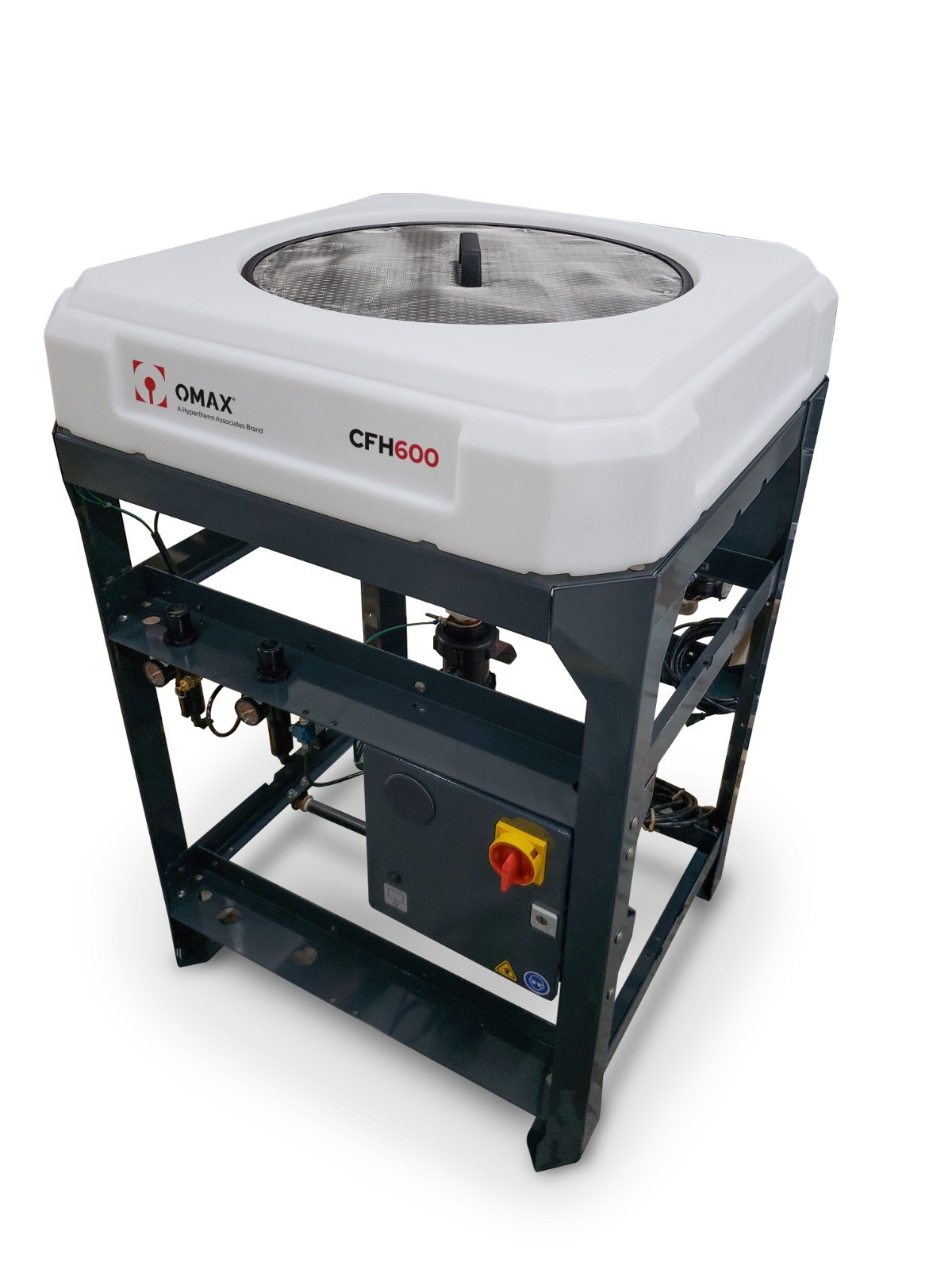

OMAX waterjet has a variety of accessories that enhance productivity. It includes 5-axis,6-axis, garnet removal, scissor plumbing, A-JET(beveling head).

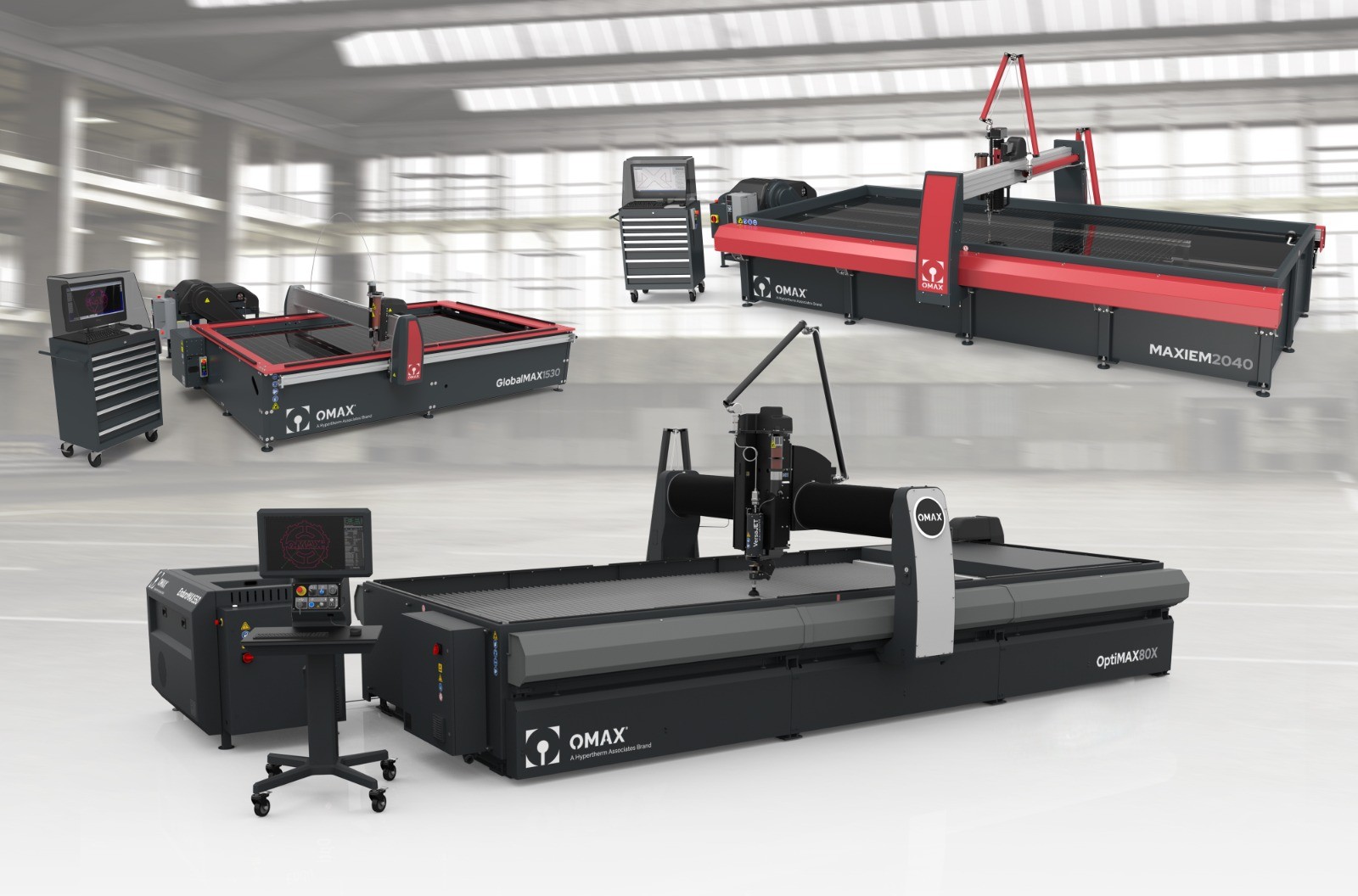

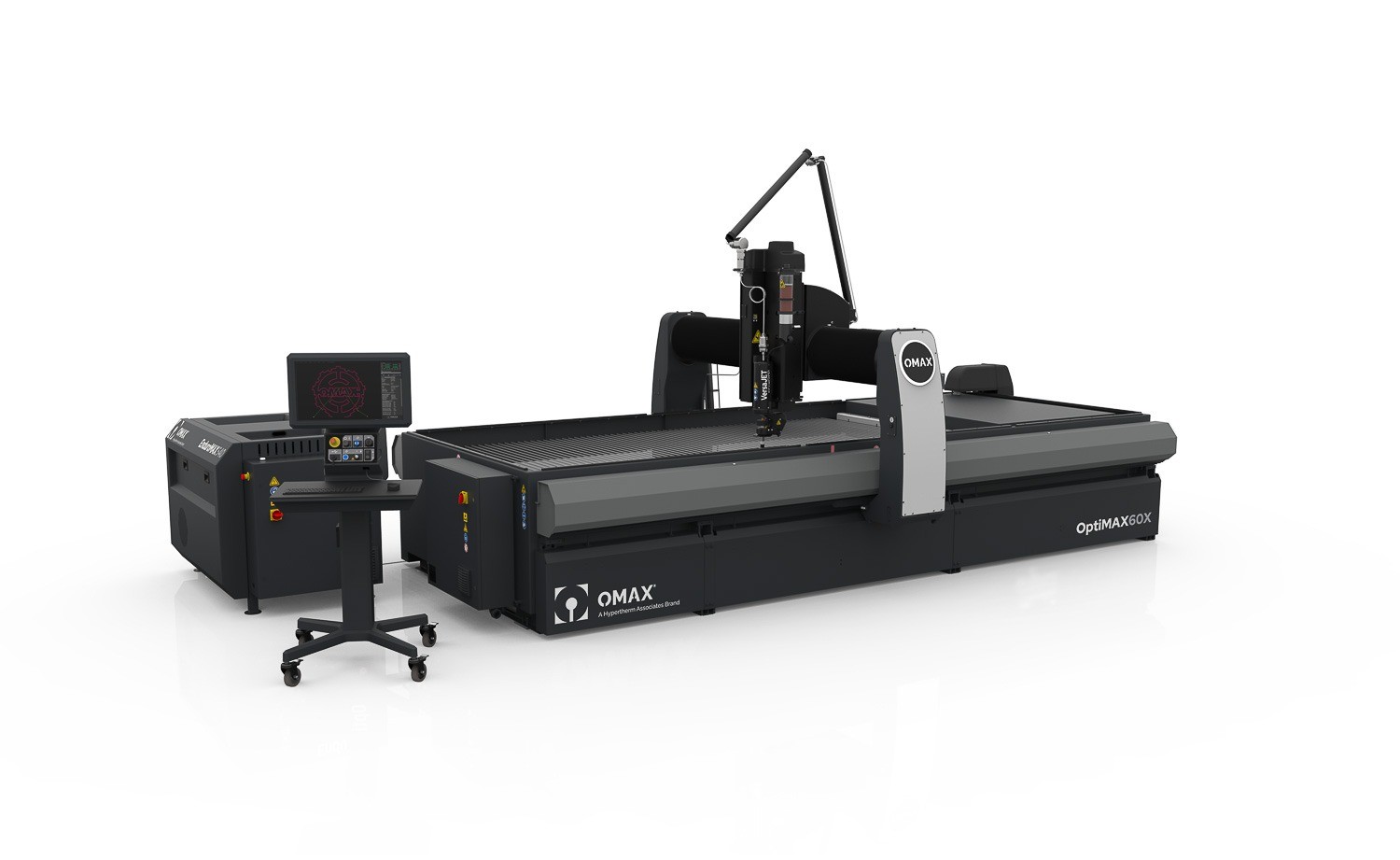

OptiMAX
A culmination of three decades of engineering excellence, which resulted in the development of the world's advanced waterjet. OptiMAX is designed to maximize productivity in any environment.
OMAX
OMAX jet Machining centers efficiently deliver high precision parts swiftly, increasing productivity. This high performance steel and marble cutting machine utilizes the most advanced CNC available for abrasive water jet machines. From stainless steel to carbon to glass, it can machine almost everything.

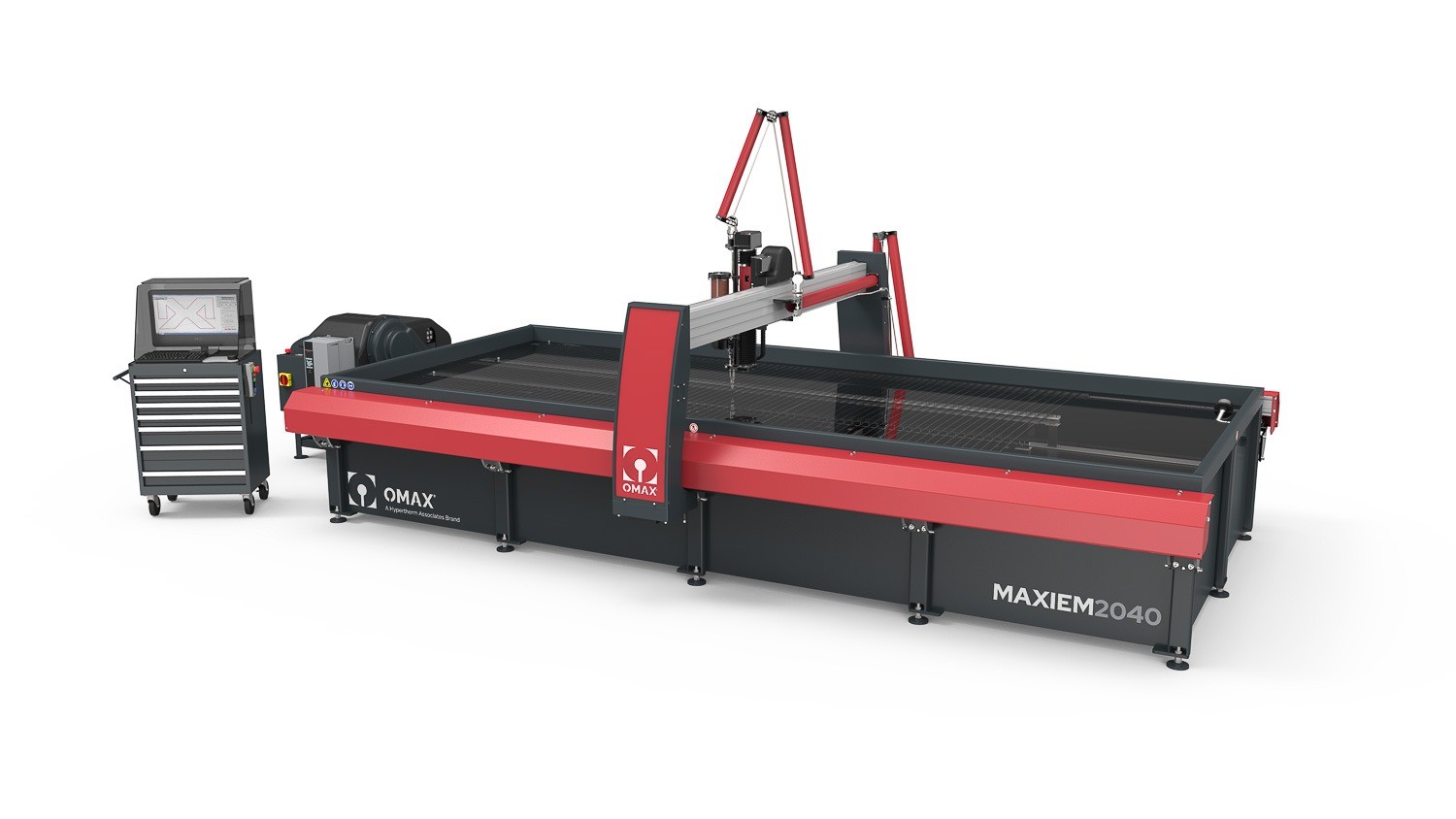

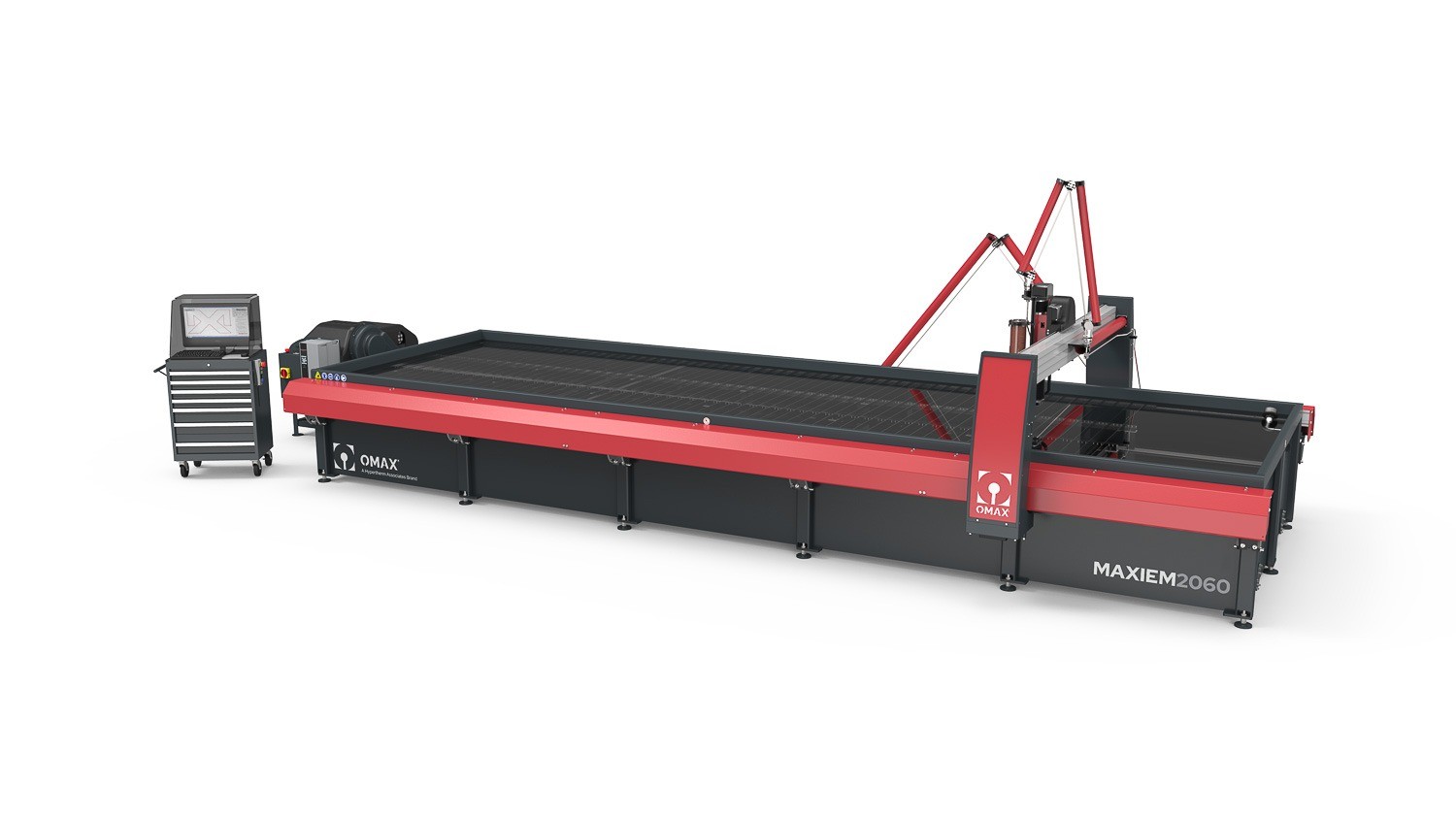

MAXIEM
It is characterized by top-tier performance, versatility, enhanced productivity and is cost effective as well.
Global MAX
It is an ideal choice for the facilities wanting to add basic waterjet cutting capabilities.
Proto MAX
It is a compact, self-contained cutting system that is suitable for prototyping and low-volume cutting of any material of approximately 1” thickness.

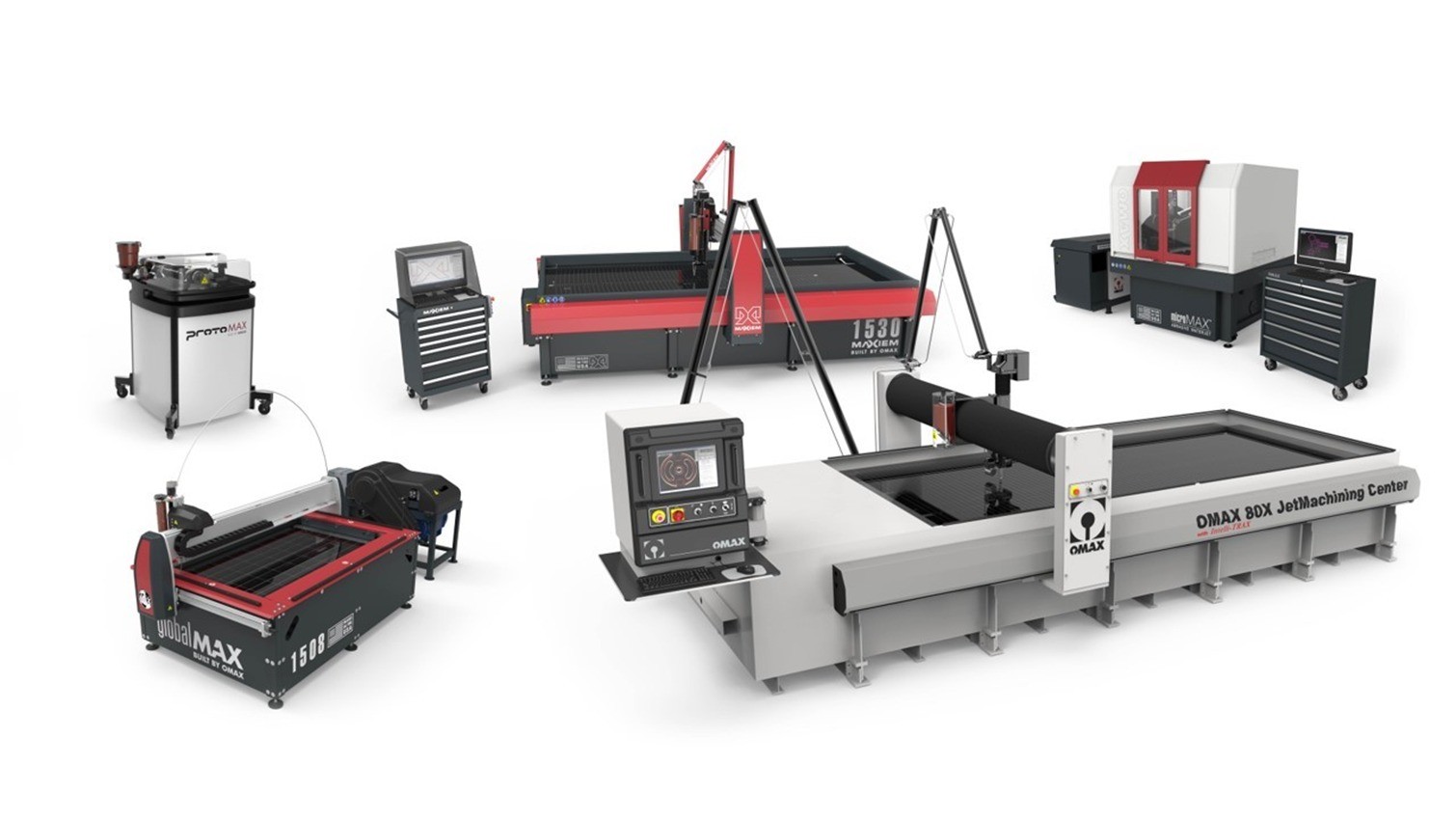

OPTIMAX
OMAX
MAXIEM
GLOBAL MAX
PROTOMAX
Product description
The complete waterjet machine utilizing the best OMAX has to offer.
The workhorse of waterjets, the OMAX line offers precision, performance and power.
Maximum capability with the widest accessory compatibility
Arranged for your business with broad accessory integration
Cost effective abrasive waterjet with essential accessory compatibility.
3-axis
Programmable Z
Programmable Z
Programmable Z
Programmable Z
Manual Z
5-Axis

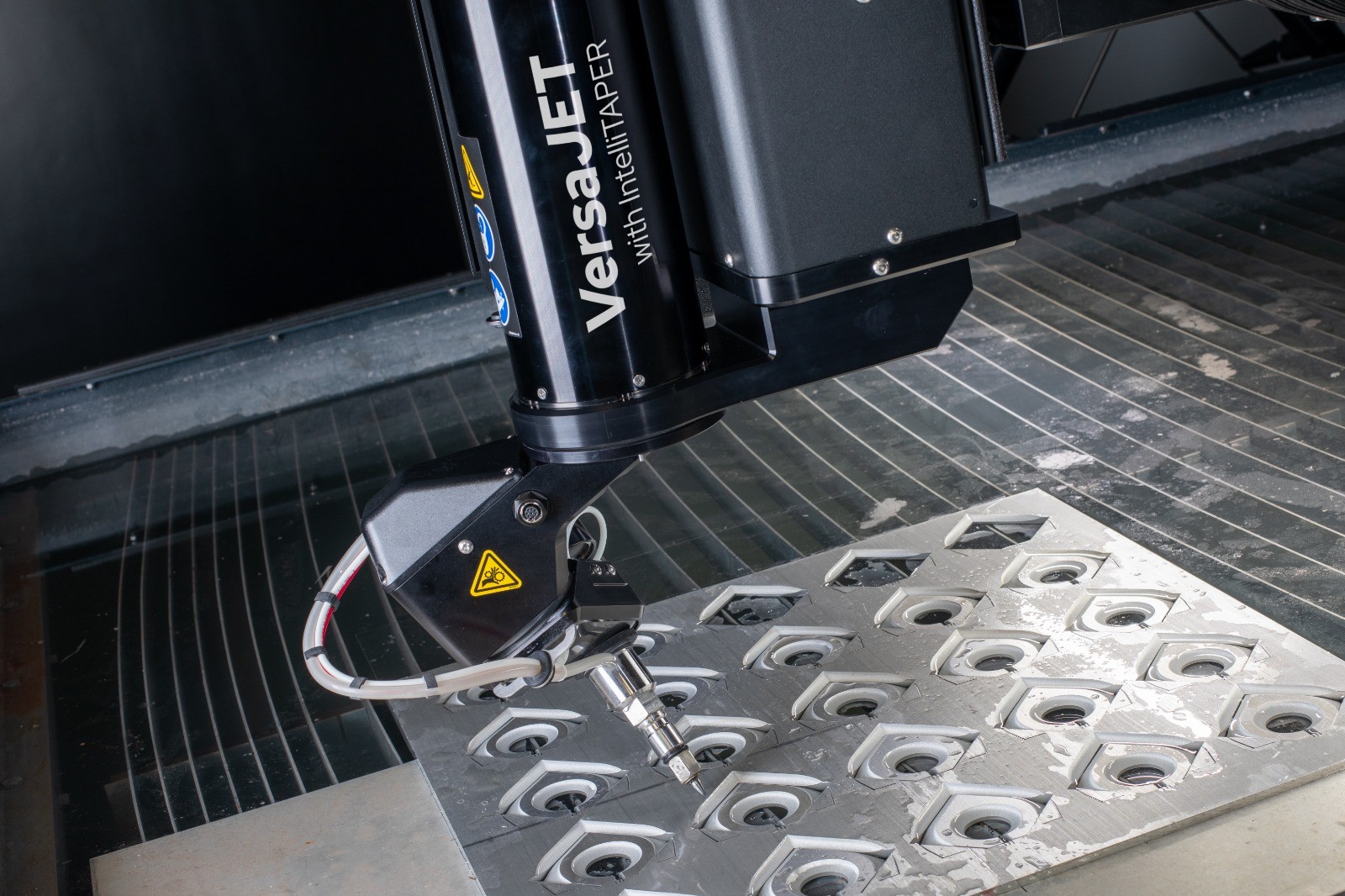

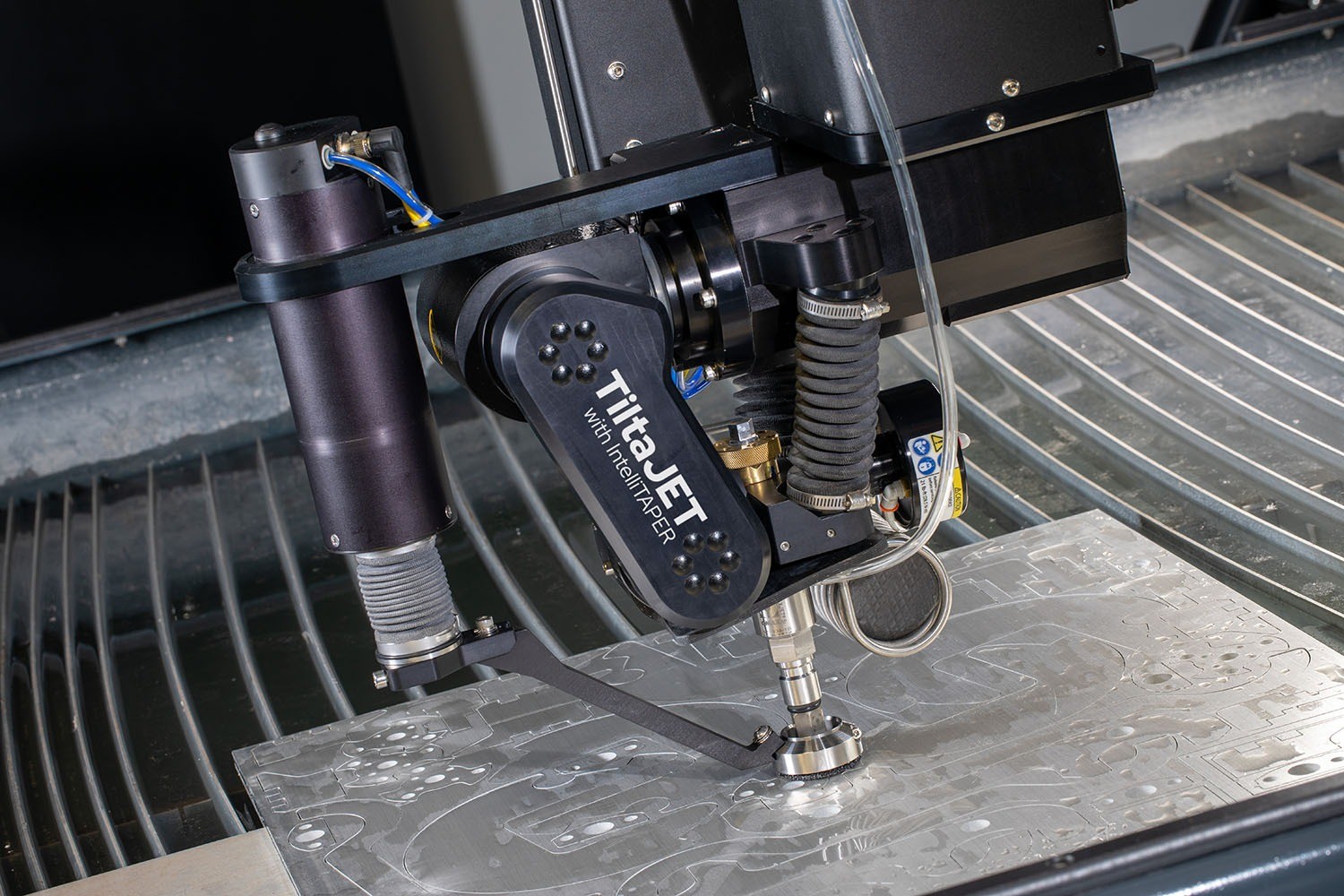

VersaJET, TiltaJET
A-Jet, TiltaJET
A-Jet
-
-
6-Axis
Coming soon
Rotary Axis with A-Jet/ TiltaJET
-
-
-

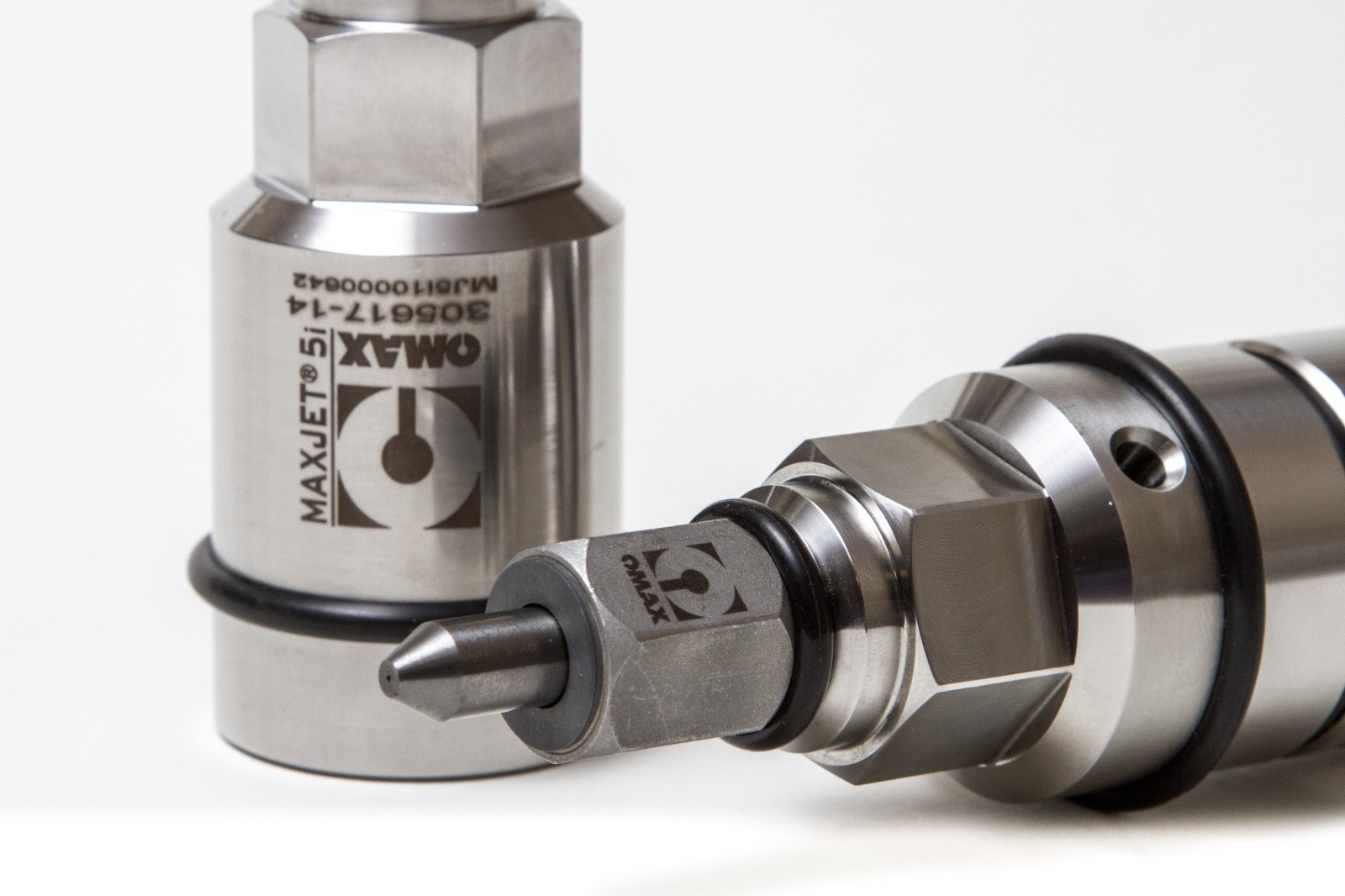

Cutting Nozzle
MAXJet 5i
MAXJet 5i
MAXJet 5i
GlobalMAX
GlobalMAX
Cutting Bed Sizes
10'0" x 5'2" to 13'4 x 6'8"
2'5" x 2'2" to 46'8" x 13'4"
2'7" x 2'6" to 20'6" x 10'2
2'7" x 5'0" to 13'3" x 6'8"
12" x 12"
3.04 m x 1.57 m to 4.06 m x 2.03 m
0.73 m x 0.66 m to 14.2 m x 4.0 m
0.79 m x 0.77 m to 6.2 m x 3.1 m
0.80 m x 1.5 m to 4.0 m x 2.0 m
0.3 m x 0.3 m
Cutting Bed Weight Capacity
400 lbs/sq ft / 1950 kg/m2
400 lbs/sq ft / 1950 kg/m2
300 lbs/sq ft / 1465 kg/m2
100 lbs/sq ft / 488 kg/m2
50 lbs/sq ft / 244 kg/m2
Ballbar Circularity
±0.003"/±0.076 mm
±0.0025" to ±0.005"/±0.064 mm
±0.005"/±0.127 mm
±0.007"/±0.178 mm
±0.016"/±0.406 mm
Omax Waterjet is used in Industries which include:
-Aerospace and Defense
-Automotive
-Architecture and Construction
-Manufacturing and Fabrication
Contact Us
Elevate the cutting operations to the next level with OMAX. Precision, productivity and accuracy is non-negotiable for us. Contact us today to discuss your project needs and experience quality service that will enhance your manufacturing capabilities.
Applications
Omax
Omax

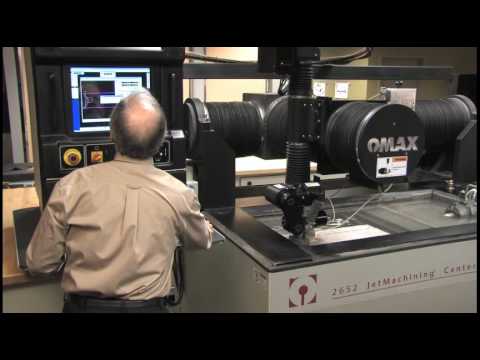

Learn How to Cut a Part with OMAX’s Intelli-MAX Software
