Part Inspection

Part inspection machines are used to check finished parts and compare them with their original design to see whether there is any deviation. This primarily is conducted prior to shipping the parts off. This machine comes as both a 3D part inspection machine and a 2D part inspection machine—both scan the parts thoroughly and instantaneously recognize any errors.

Part inspection machines help save a lot of time compared to the time it would naturally take a human eye to spot mistakes. YES Machinery supplies quality part inspection machines across the Middle East made by InspecVision, hailing from Ireland, who are known experts in creating building measurement systems since 2003.

Features

- No more manual calipers. Speedy, automated measurement.

- Available in both 2D and 3D scanning formats

- 500 mm to 3000 mm sizes with 12 to 100 microns precision

- Low maintenance

- Low maintenance and minimal training required to operate

- Single-click automatic inspection

- Automatic report generation

- full new-part setup and inspection in as little as 4 seconds

Benefits

InspecVision Inspection Machines Models:

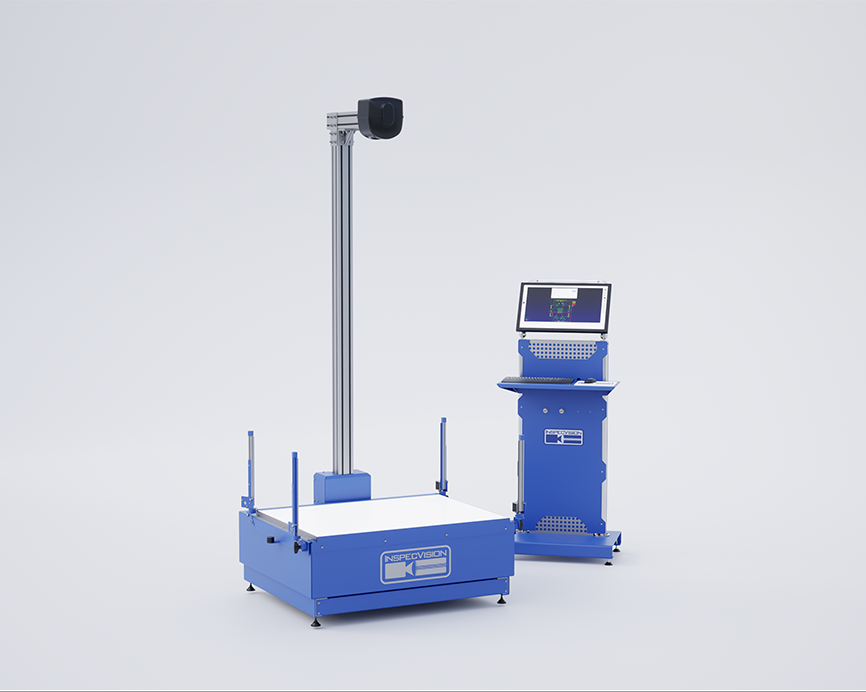

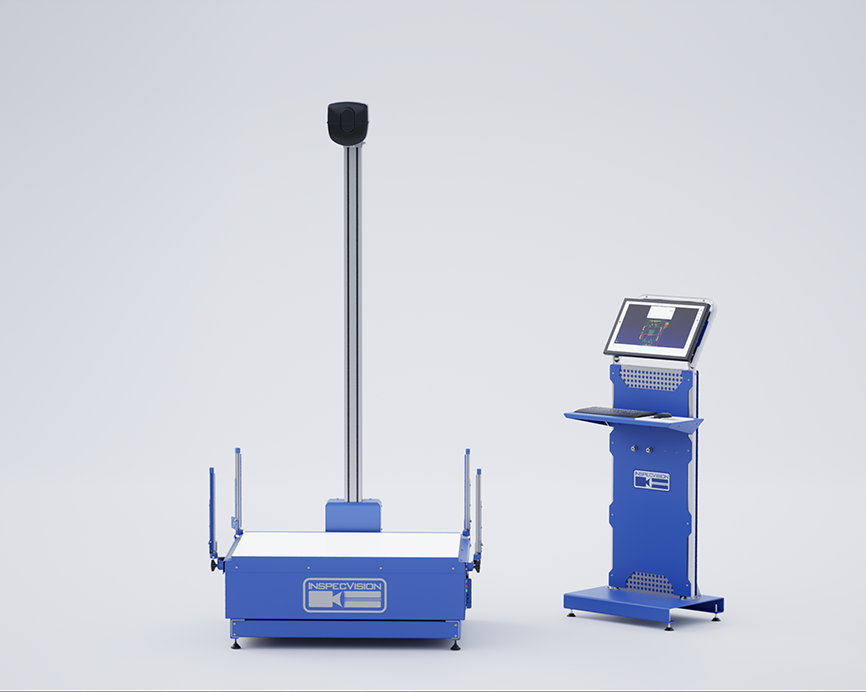

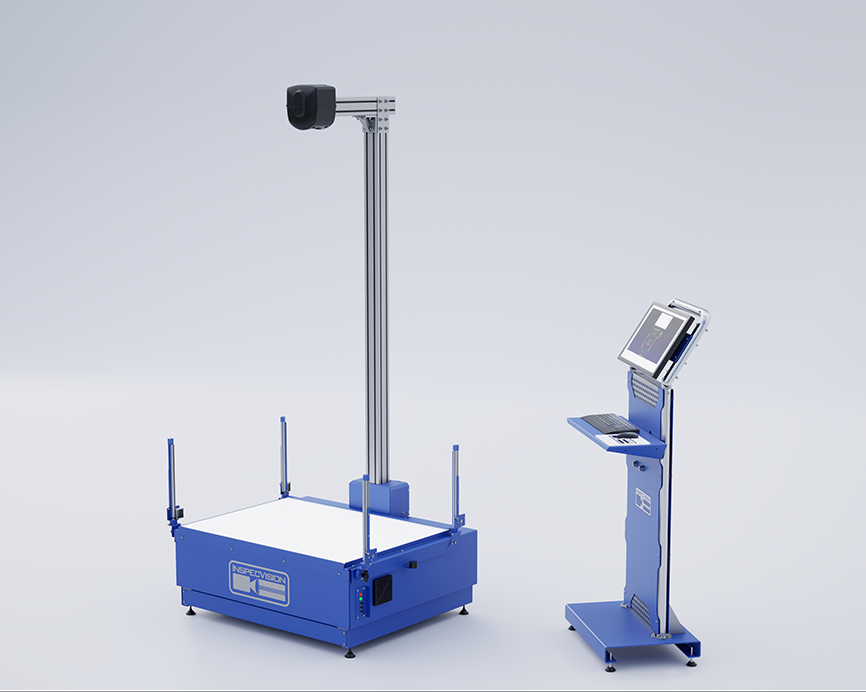

Planar 2D:

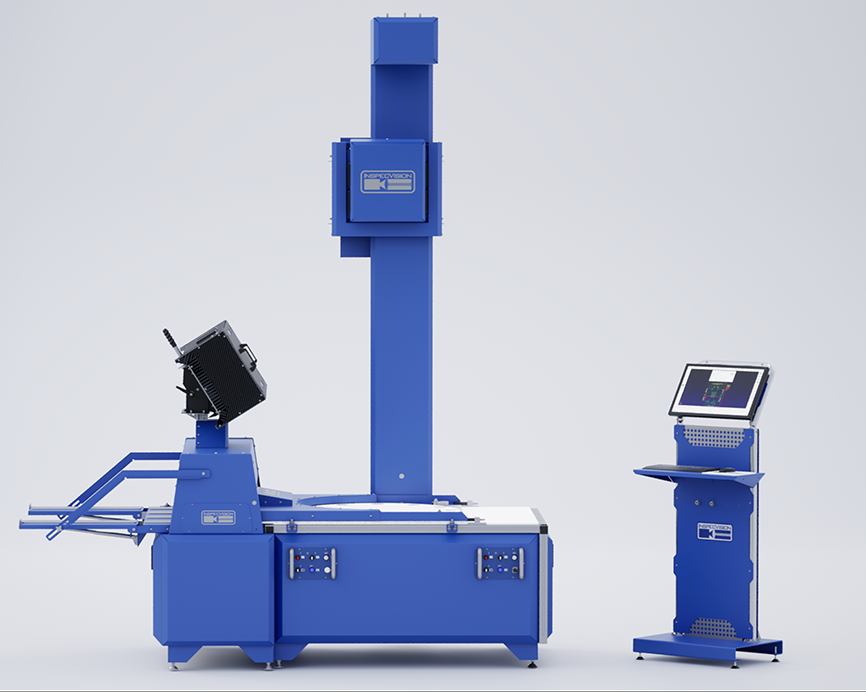

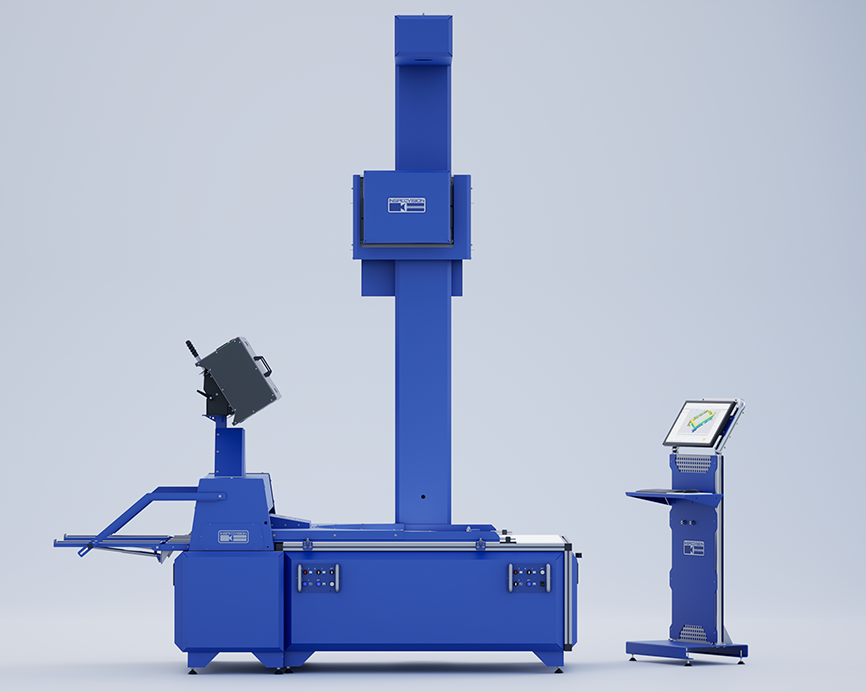

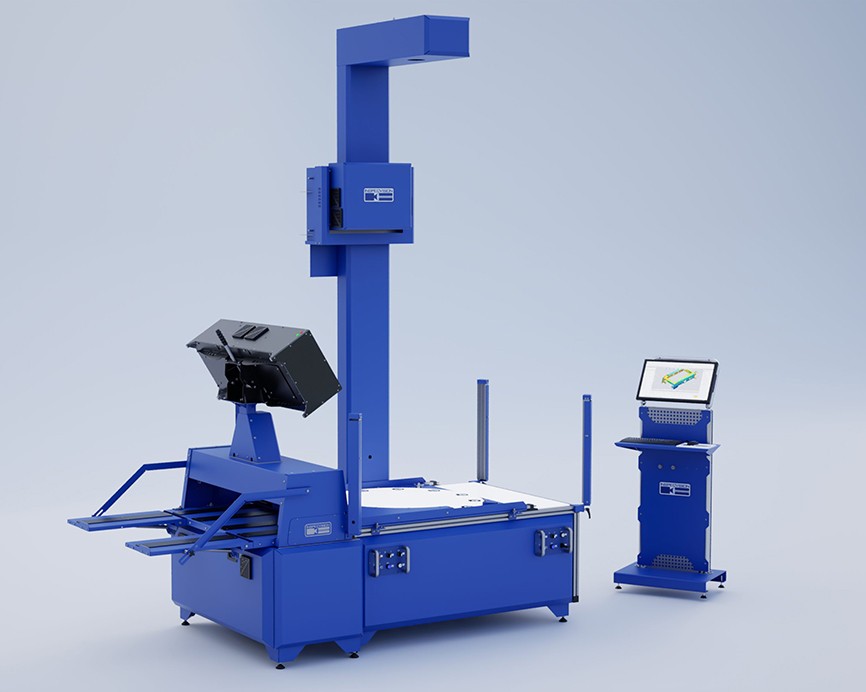

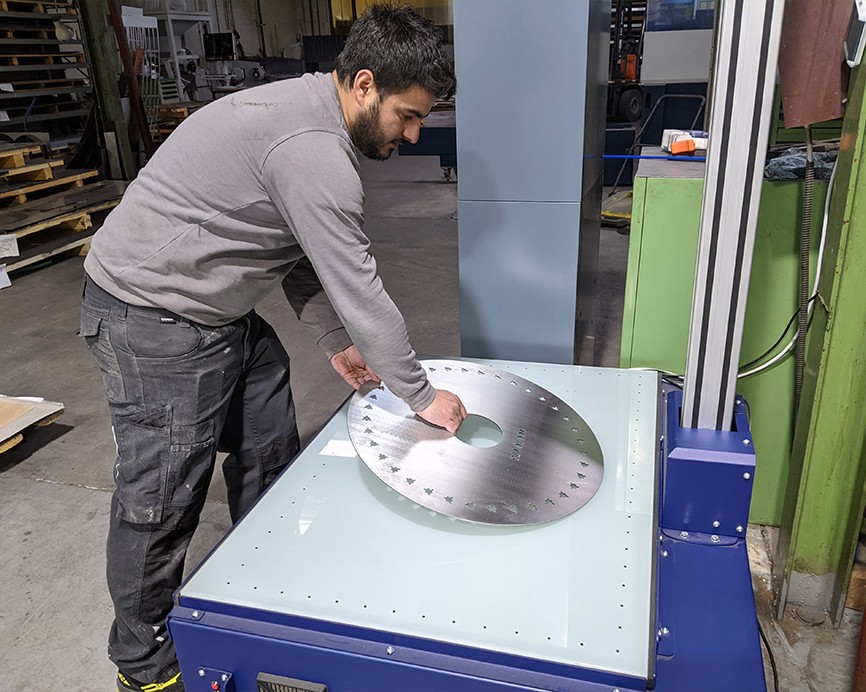

A system that is fully automatic for performing inspection and works on reverse engineering is Planar.It’s one of the world’s swiftest 2D industrial scanning machines for taking measurements. The clients who benefit from this machine would include fabricators from sheet metal industry who make use of CNC, Laser, Plasma and water jet cutting who would offer the Aerospace industry or automobile or electronics and communications sector. This model is designed in such a way that can be upgraded with numerous accessories and various options which would include the Optican 3D and SurfScan 2.5D.

A wide range of options are available from 500mm to 3000mm with precision of 12-100 microns. These machines require very low maintenance and less training for operating.

Features:

Super good speed incorporated with 2 Dimensional & 3 Dimensional measurement features for inspecting and reverse engineering.

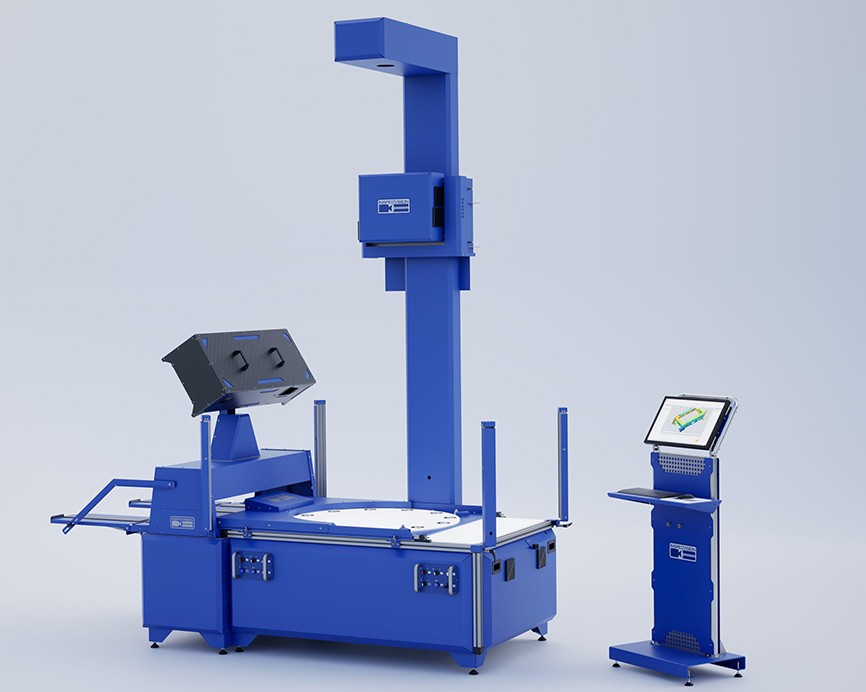

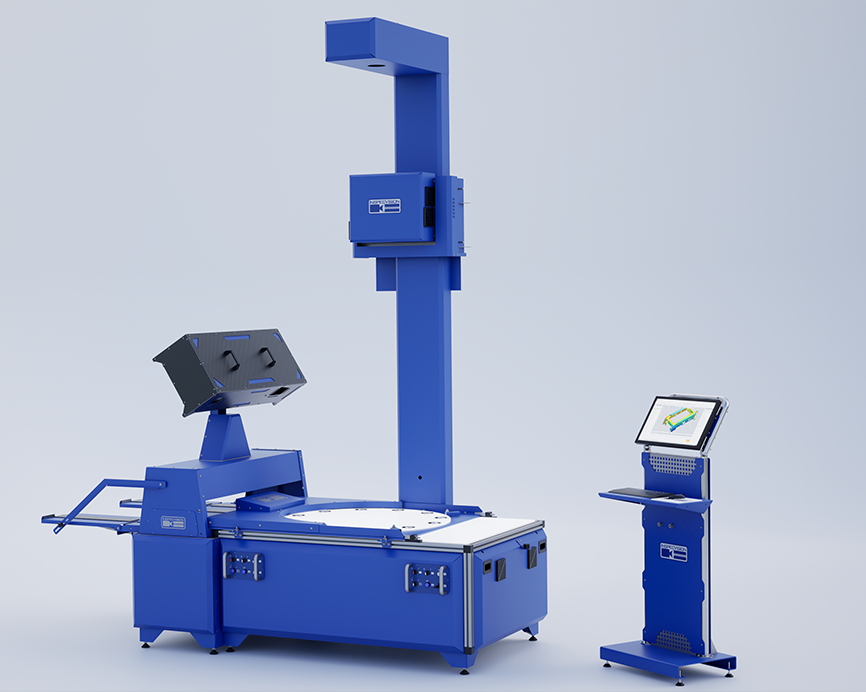

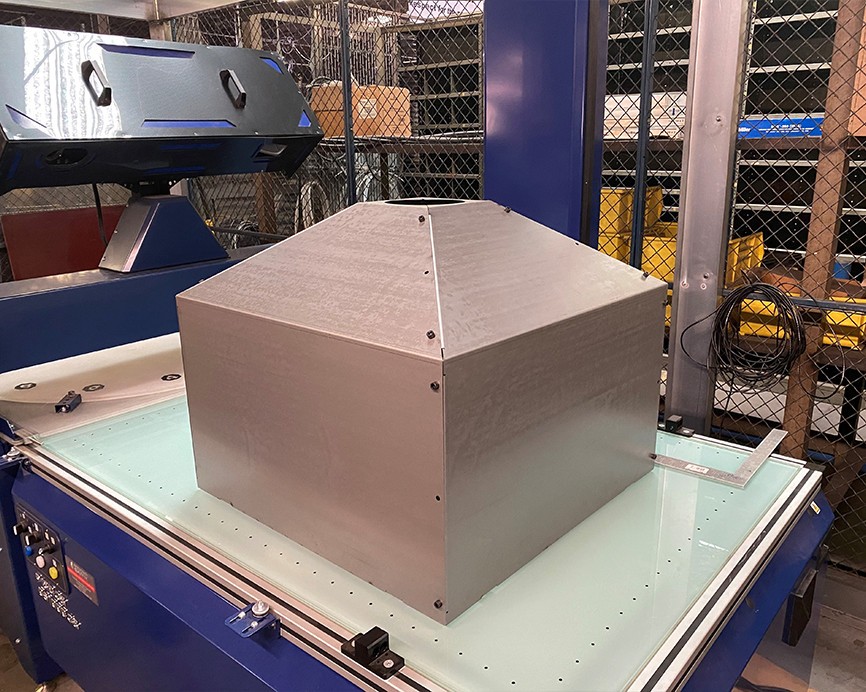

OPTI-SCAN3D: The world’s  one and only 3 Dimensional machine to perform Inspection that can take measurements of surfaces and corners in 3D.

OPTI-SCAN 3D can be utilised as a separate system, or it can be combined with Planar systems that already exist for transforming it into a full  2 Dimensional & 3 Dimensional system for taking measurements.

OPTI SCAN 3D model is a specialist in measuring edges. The scanning of huge objects can be done by combining the repositioning markers to the area vor parts.

Highlights:

3 D White light scanning system

3 D Inspection & Reverse Engineering

Main Features:

Comes in three models and with attachments.

Single-click automatic inspection.

Edge measurement possible

Accuity: This is one of the best automatic optical gauging systems in the market. 2D industrial scanning and 3D industrial scanning is possible with this and offers an accuracy of 6 microns and a view up of 119mm wide enabled.

Installation and inspection time is approximately 4 seconds for  new parts.

Highlights: High speed Automated 2D & 3D Optical Gauging, set up done with a single click, automatic report generation and results are traceable.

For product inquiries and technical consultation reach us at +966 55 422 2379 sales@yesmachinery.ae

OUR MANUFACTURER

Started in the year 2003 in Northern Ireland, InspecVision designs, develops, produces and sells a wide range of 2D as well as 3D part inspection measurement systems that suit industrial applications.

INSPECVISION offers a good-speed, automated solution for taking the measurements and evaluating the deviations in the product measurements, reducing the necessity for conventional process of inspection like callipers.

INSPECVISION has a wide range of  2D and 3D part inspection measurement systems like the Planar 2D, Opti-Scan 3D as well as the Accuity. Each of the products are available in different sizes and specs.

INSPECVISION has won the Queen’s Award for Enterprise in the INTERNATIONAL TRADE in April 2021 for its extraordinary performance & has also achieved a Chartered Institute of Marketing (CIM) Ireland award in the year 2018.
